Burndy AYPO300 Aluminum Compression Pin Adapter 300 kcmil

Product Description

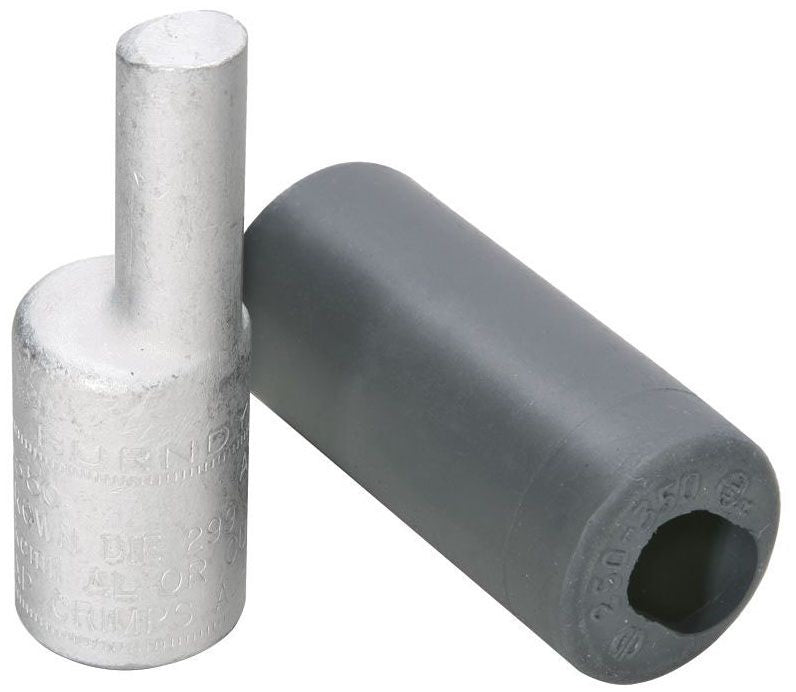

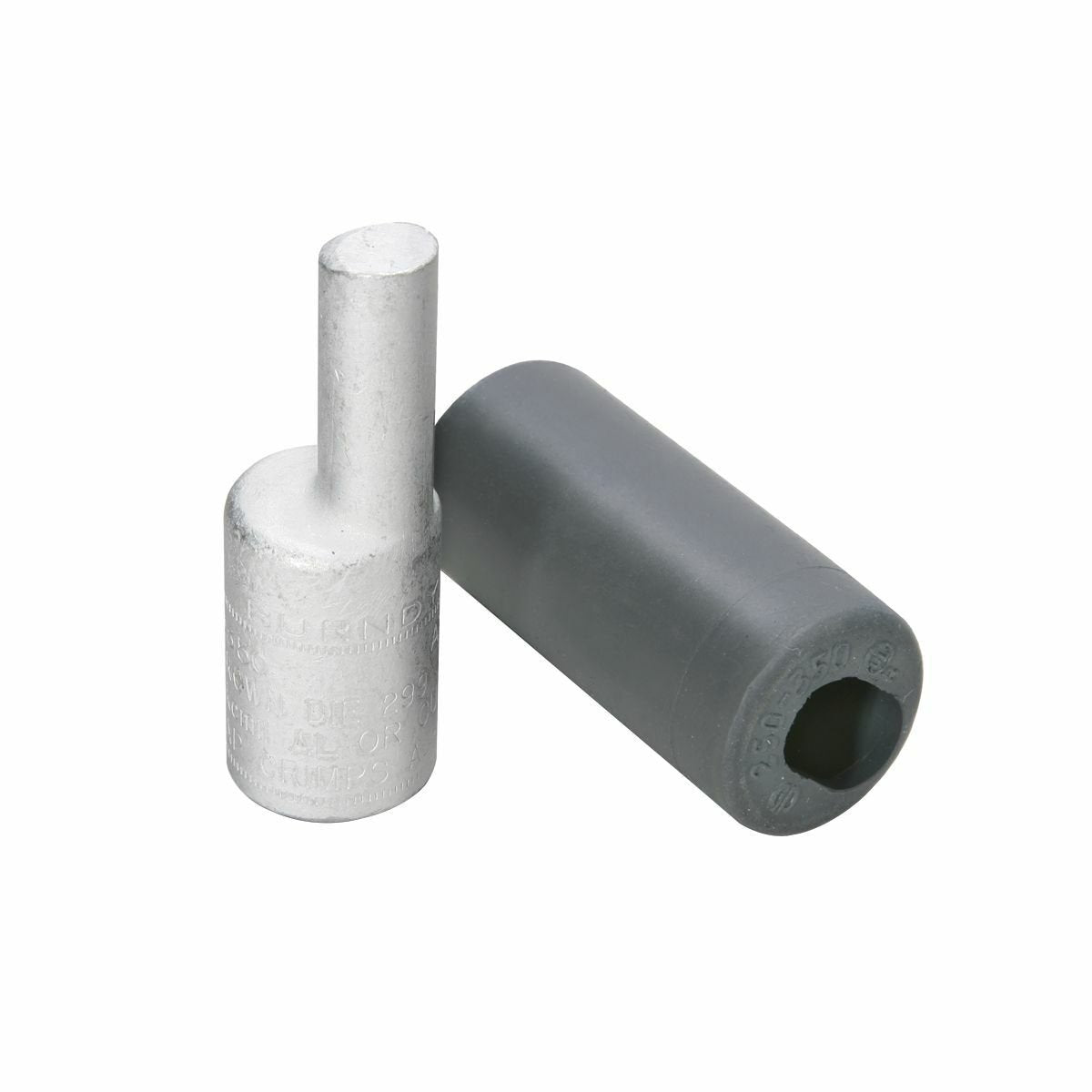

The BURNDY AYPO300 is an aluminum compression pin adapter designed for wire termination. This adapter is electro-tin plated to eliminate bi-metallic corrosion and features a short connector length for easy installation in limited spaces. It is prefilled with PENETROX joint compound and includes EPDM rubber covers rated for 600V, removing the need for taping.

• All-Aluminum Electro-Tin Plated design eliminates possible bi-metallic corrosion
• Provides shortest connector length design possible for easy installation in equipment with limited space
• Solid electro-tin plated aluminum plug makes properly connection easily

Product Highlights

This aluminum compression pin adapter ensures a reliable electrical connection for 300 kcmil conductors in demanding applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: AYPO300
• Country of Origin: United States

Technical Specifications

• Catalog Number: AYPO300
• Brand: BURNDY
• Sub Brand: HYPLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
• Finish: Tin-Plated
• Insulation: Y
• Material: ALUMINUM
• Special Features: Features: All-Aluminum Electro-Tin Plated design eliminates possible bi-metallic corrosion and provides shortest connector length design possible for easy installation in equipment with limited space. Solid electro-tin plated aluminum plug makes properly connection easily. Smooth surface on the solic EC plug provides greater area contact establishing excellent conductivity. Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment. Straight plug design is also available. Electro-tin plating resists corrosion, factory prefilled with PENETROX joint compound. EPDM Rubber covers are supplied with connector and rated for 600 Volts, eliminates taping. Connectors are clearly marked with catalog number, wire size, and color coded die index providing clear, easy to use information.
• Standard: UL 486A-486B
• UPC: 781810738429
• GTIN: 00781810738429
• Item Type: Aluminum Pin Adapters
• Temperature Rating: 194
• Voltage Rating: 35 kV
• Cross Reference Products: ACO-300
• Type: Offset
• Conductor Material: Copper/Aluminum
• Conductor Size: 300 KCMIL
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.53 Inch Diameter x 1.34 Inch Length
• Cover Size: 2.54 Inch Length
• Overall Length: 3.08 Inch
• Approval: UL, CSA
• RoHS Compliant: True
• Die Color Code and Index: Brown 298
• Wire Strip Length: 1-1/8 Inch
• Die Code: 299
• Insulated: Yes
• Standards: CSA Approved; UL468A-468B; UL Listed
• Wire Type: Copper
• Color Code: Brown
• Max. Temp.: 194°F
• Pin Length: 1.34 in
• Wire Range: 300 Kcmil
• For Use With: Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
• Maximum Voltage: 35 kV
• Pin Diameter: 0.531 in
• Product Type: Offset Adapter
• Strip Length: 1 1/16 in
• Barrel Length: 1.07 in
• For Wire Size: 300 kcmil
• Contact Finish: Tin
• Max. Wire Size: 300 kcmil
• Min. Wire Size: 2/0 AWG
• Barrel Diameter: 1.11 in
• Contact Material: Aluminum
• Number of Crimps: 2
• Connection Material: Aluminum
• Insulation Material: Rubber
• Connection Orientation: Offset
• For Conductor Material: Aluminum, Copper
• Pin Equivalent Wire Size: 4/0 AWG
• Length (Straight Wireway): 3.08 in
• For Stranded Copper Wire Size - Maximum: 300 kcmil
• For Stranded Copper Wire Size - Minimum: 300 kcmil
• Compatible Installation Tool Model Number: Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
• For Stranded Aluminum Wire Size - Maximum: 300 kcmil
• Die Index: 299
• EU RoHS Indicator: Yes
• Finish Type: Tin-Plated
• Pin Type: Solid
• Plated: Y
• Plating Type: Tin
• Terminal Type: Pin
• Trade Name: HYPLUG™
• Dimension - A Outside Diameter inch: 1.10 in
• Dimension - B Length fraction: 1-1/16 in
• Dimension - B Length inch: 1.07 in
• Dimension - B Outside Diameter inch: 0.53 in
• Dimension - L Length Overall mm: 78 mm
• Dimension - P inch: 1.34 in
• Dimension - Strip Length inch: 1-1/8 in
• Dimensions: 3.08 in x 1.1 in x 1.1 in
• Equivalent Pin Size: 4/0 AWG
• Height: 1.1 in
• Length: 3.08 in
• Voltage - Maximum: 35000 V
• Conductor - AL Str Size: 300 KCMIL
• Conductor - AL Str Size Range: 300 kcmil
• Conductor - Copper DLO Size: 262 KCMIL
• Conductor - Copper DLO Size Range: 262 kcmil
• Conductor - Copper Flex I Size: 300 KCMIL
• Conductor - Copper Flex I Size Range: 250 kcmil
• Conductor - Copper Str Compact Size: 300 KCMIL
• Conductor - Copper Str Size: 300 KCMIL
• Conductor - Copper Str Size Range: 300 kcmil
• Conductor - Material: ALUMINUM / COPPER
• Conductor Type: CODE/FLEX
• Wire Size: 300 KCMIL
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Plug Diameter: 0.53
• Lug Wire Size: 300 KCMIL
• Width: 1.10 in.
• Manufacturer: Burndy, a Hubbell affiliate
