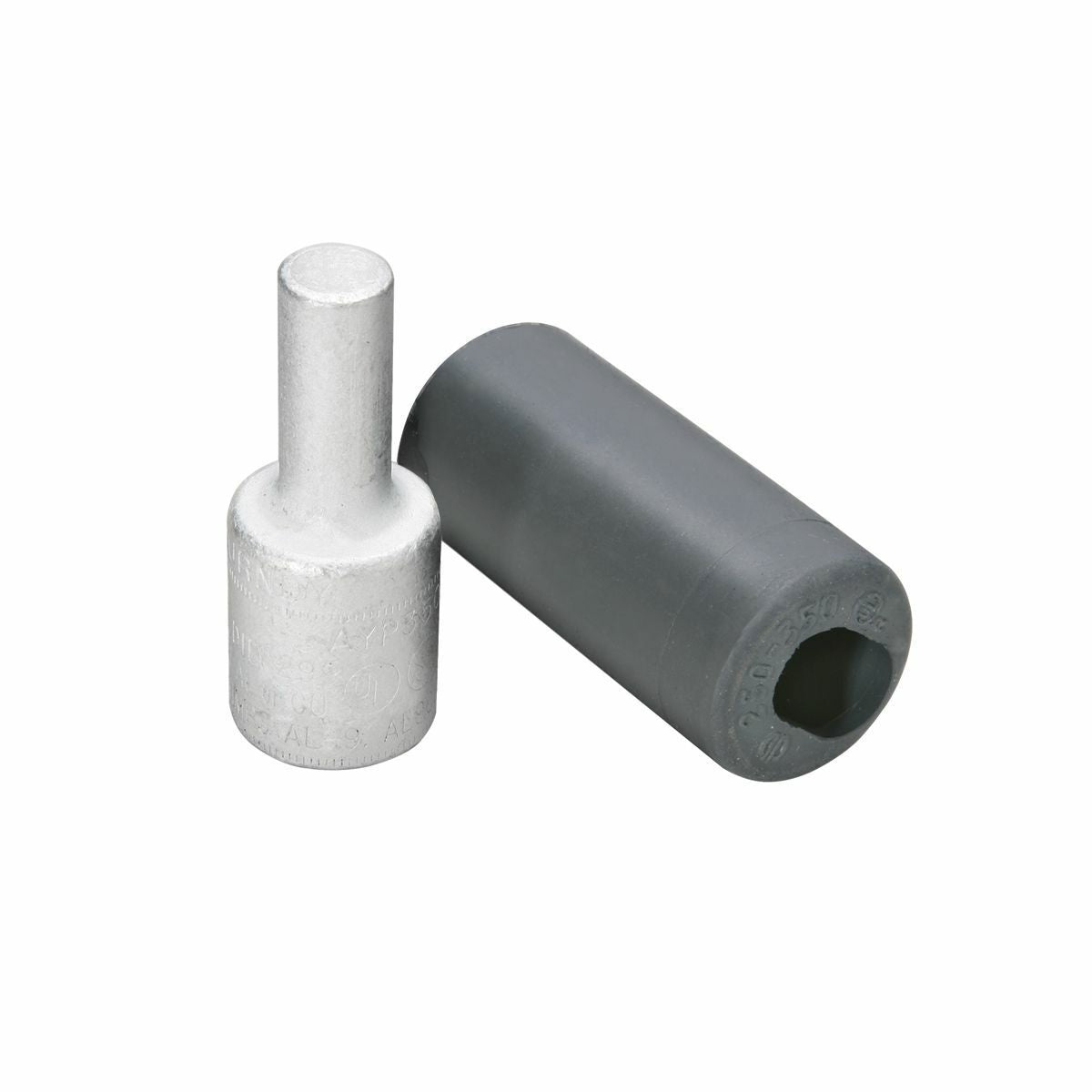

BURNDY AYP500 Aluminum Compression Pin Adapter 500 kcmil 0.68 Plug Dia 1.60 Plug Length

Product Description

The BURNDY AYP500 is an aluminum compression pin adapter designed for effective wire termination. This model accommodates wire sizes up to five hundred kcmil with plug dimensions of zero point sixty-eight inches in diameter and one point sixty inches in length. It is suitable for both aluminum and copper applications and is tin plated for corrosion resistance.

• Compatible with wire sizes up to 500 kcmil
• Suitable for both aluminum and copper wiring
• Features a tin-plated finish for corrosion resistance

Product Highlights

This adapter enhances connections in equipment with limited space due to its compact design. It features a solid electro-tin plated aluminum plug that ensures reliable conductivity and easy installation. The product is designed to meet UL 486A-486B standards.

Product Information

Standard Information

• Catalog Number: AYP500
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Sub Brand: HYPLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: Wire Termination
• Finish: Tin-Plated
• Insulation: Y
• Material: ALUMINUM
• Special Features: All-Aluminum Electro-Tin Plated design; eliminates bi-metallic corrosion; compact for limited spaces; ends are prefilled with PENETROX joint compound; EPDM Rubber covers rated for 600 Volts.
• Standard: UL 486A-486B
• UPC: 781810737743
• GTIN: 00781810737743
• Item Type: Aluminum Pin Adapters
• Temperature Rating: 194
• Voltage Rating: 35
• Cross Reference Products: CPM-500
