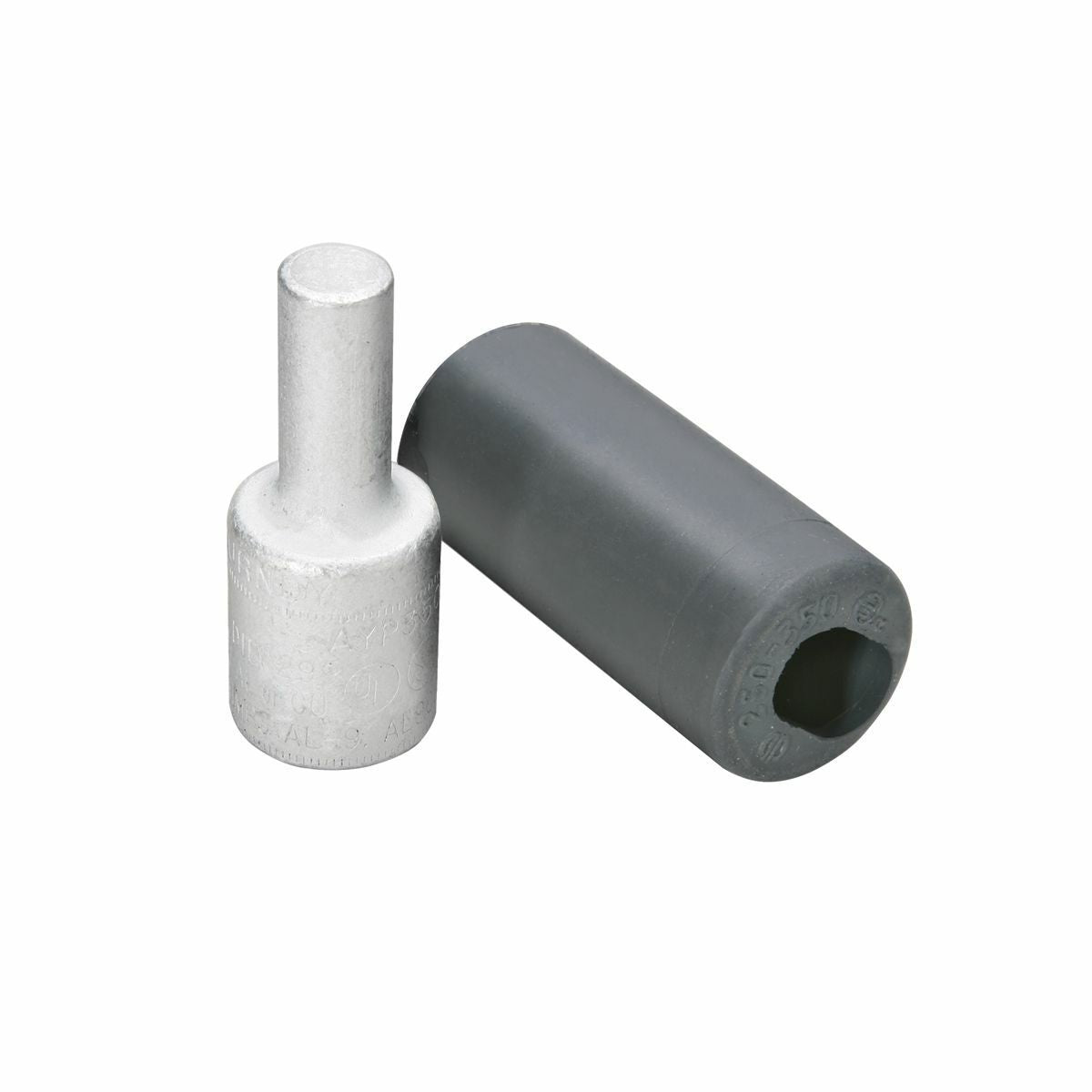

BURNDY AYP350 Aluminum Compression Pin Adapter, 350 kcmil, 0.57 Plug Dia, 1.34 Plug Length, Al/Cu Rated, Tin Plated

Product Description

The BURNDY AYP350 is an aluminum compression pin adapter designed for wire termination. It is suitable for 350 kcmil wire, with a plug diameter of 0.57 inches and a plug length of 1.34 inches. This adapter is rated for both aluminum and copper connections and features a tin-plated finish for enhanced durability.

• Designed for 350 kcmil wire size
• Tin-plated for corrosion resistance
• Includes EPDM rubber covers rated for 600 volts

Product Highlights

This product simplifies installation, particularly in tight spaces, thanks to its compact design.

Product Information

Standard Information

• Catalog Number: AYP350
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Voltage Rating: 35 volts
• Temperature Rating: 194°F
• Insulation: Yes
• Standard: UL 486A-486B
• Country of Origin: United States
• Cross Reference Products: ACM-350, PT350
• Special Features: Electro-tin plated to prevent corrosion; pre-filled with PENETROX joint compound
