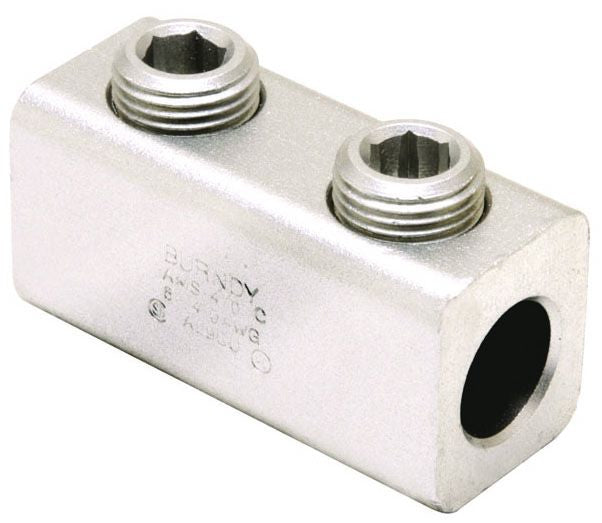

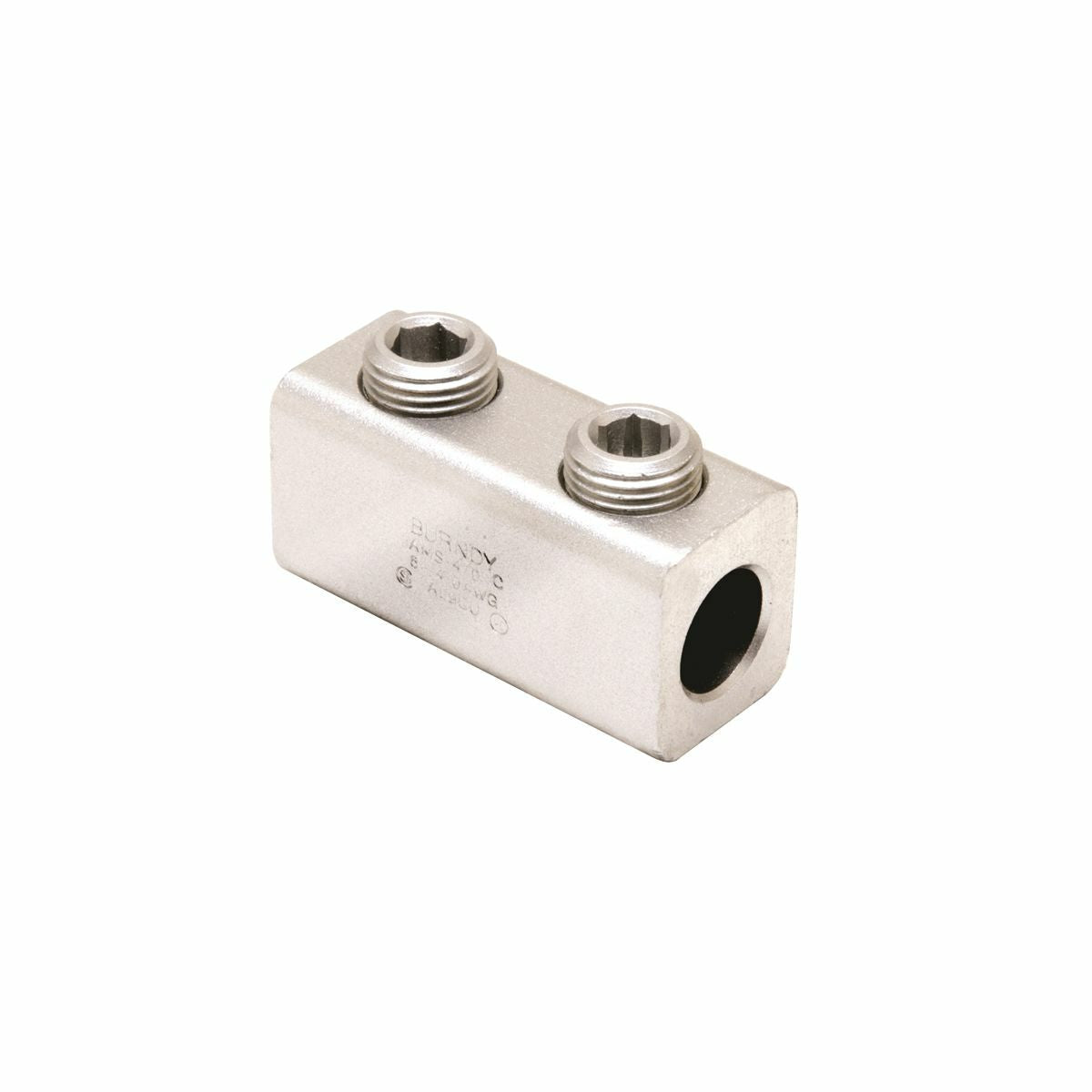

BURNDY AMS4/0 Aluminum Mechanical Splice, 4/0-6 AWG, 9/16 Screw Dia, 2 Screws, 5/16 Hex Size, Al/Cu Rated

Product Description

The BURNDY AMS4/0 is an aluminum mechanical splice designed for 4/0 to 6 AWG wire sizes. This splice is suitable for use with both aluminum and copper conductors, making it versatile for various electrical applications. The splice features a screw diameter of nine-sixteenths of an inch and uses two screws with a hex size of five-sixteenths of an inch for secure connections.

• For Use With Copper And Aluminum Conductors
• Tin Plated for Low Contact Resistance
• Rated for High Strength and Reliable Performance

Product Highlights

This product meets ANSI C119.4 standards and offers a temperature rating of one hundred ninety-four degrees Fahrenheit. It is constructed from high-strength aluminum with a tin plating that helps prevent galvanic corrosion.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: AMS4/0
• Material: Aluminum
• Application: For Use With Copper And Aluminum Conductors
• Special Features: Features Dual Rated for Copper And Aluminum, Tin Plated for Low Contact Resistance
• Temperature Rating: 194 Degrees F
• Number Of Screws: 2
• Hex Size: 5/16 Inches
• Screw Diameter: 9/16 Inches
