Burndy ACC-FPV180 304 Stainless Steel 180-Degree Module Frame Flange Clip 4.1 - 8 mm Wiley

Product Description

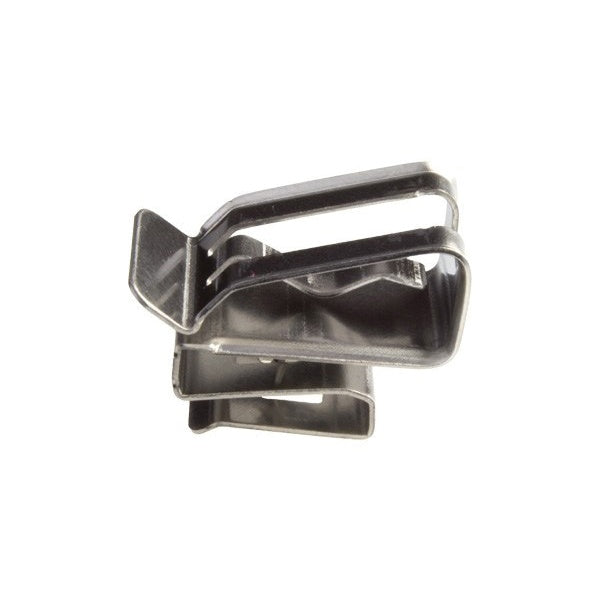

The Burndy ACC-FPV180 is a 180-degree module frame flange clip made from 304 stainless steel. This flange clip is built for strength and durability, supporting PV cables with a diameter ranging from four point one to eight millimeters. The clip measures sixteen point five millimeters in length and twelve point five millimeters in width and is designed to hold one or two PV cables securely. It is suitable for outdoor applications and is UL1565 listed.

• Innovative design enables quick and easy installation
• Durable wire management solution for PV systems
• Equipped with a snake tongue tab to secure clips to module frames or purlins

Product Highlights

This flange clip combines functionality with ease of use, making it ideal for securing solar panel installations.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer Part Number: ACC-FPV180

Technical Specifications

• Material: 304 Stainless Steel
• Cable Range: 4.1 - 8 mm
• Dimensions: 16.5 mm Length x 12.5 mm Width
• For Use With: 1 to 2 PV Cables
• Standards: UL1565 Listed
• Country Of Origin: France
