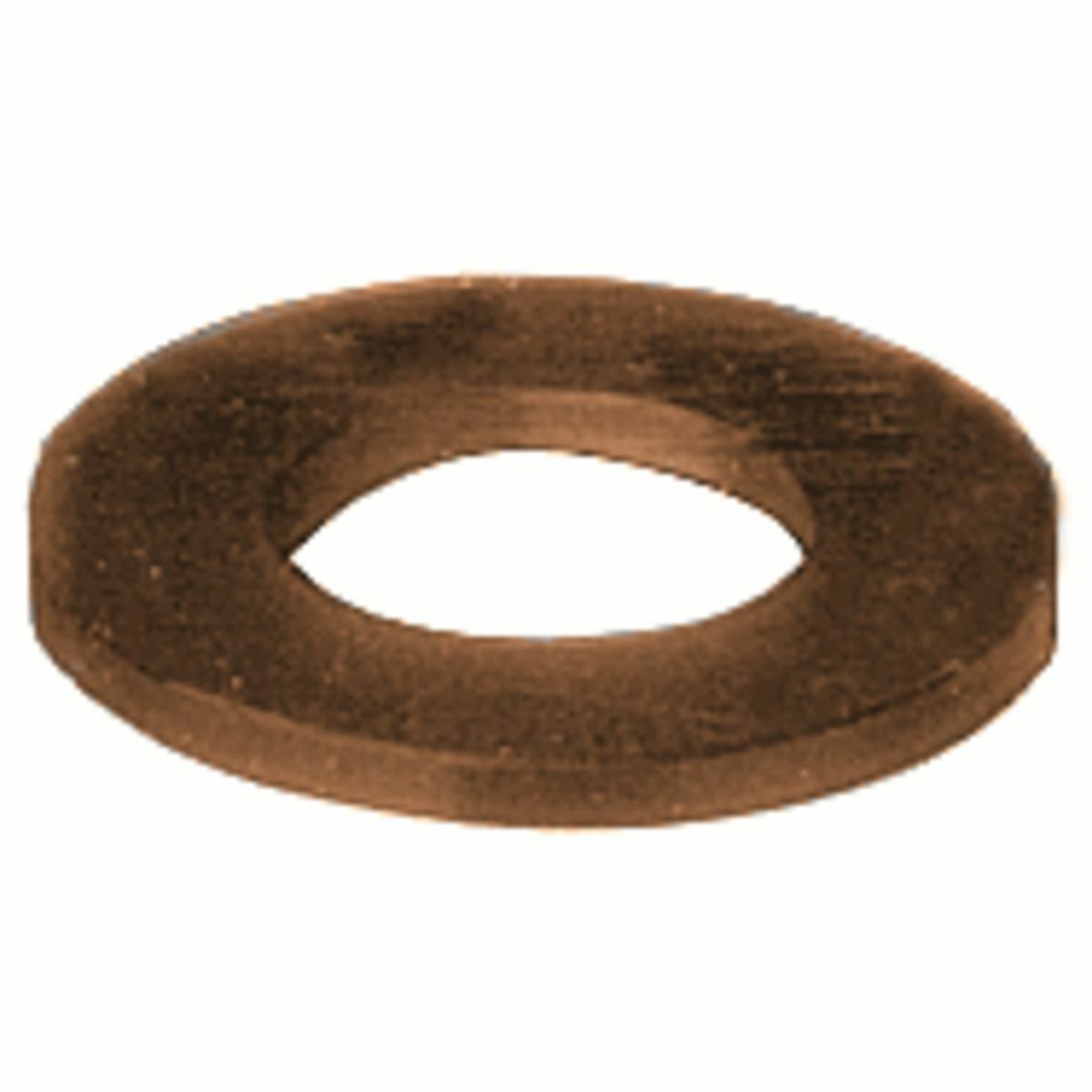

Burndy 50FWBOX silicon bronze washer, 1/2 stud

Product Description

The BURNDY 50FWBOX silicon bronze washer is designed to spread the load of a screwed fastening. These high-strength DURIUM flat washers are non-magnetic and prevent galvanic action when in contact with copper. They conform to SAE standards and are made in the USA. The washer fits a 1/2 inch bolt size and measures 1-1/16 inch in outer diameter and 3/32 inch in thickness.

• High strength
• Non-magnetic
• Free from galvanic action when in contact with copper

Product Highlights

Silicon bronze washer for distributing load, preventing corrosion, and ensuring secure fastening.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: 50FWBOX
• Country of Origin: United States

Technical Specifications

• Catalog Number: 50FWBOX
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Sub Brand: DURIUM
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to spread the load of a screwed fastening
• Material: SILICON BRONZE
• Special Features: High strength DURIUM Flat Washers are non-magnetic and free from galvanic action when in contact with copper. Conforms to SAE standards.
• UPC: 781810012543
• GTIN: 00781810012543
• Item Type: Washer-Flat
• Applicable Standard: SAE
• Type: Round
• Fastener Size: 1/2 Inch
• Outer Diameter: 1-1/16 Inch
• Thickness: 3/32 Inch
• RoHS Compatible: True
• Finish: Bronze
• Fits Bolt Sizes: 1/2 in
• Flat Washer Type: Flat Washer
• Package Quantity: 1
• Washer Inside Dia.: 1/2 in
• Washer Outside Dia.: 1.09 in
• System of Measurement: Inch
• Connector Type: Washer - Flat
• EU RoHS Indicator: Yes
• Trade Name: DURIUM™
• Dimension - B Length fraction: 1-1/16 in
• Dimension - B Length inch: 1.0625 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Bolt Size inch: 0.5 in
• Dimension - Inside Diameter inch: 0.5 in
• Dimension - Outside Diameter inch: 1.09 in
• Dimension - Pin Diameter fraction: 3/32 in
• Height: 0.121 in
• Length: 1.092 in
• Width: 0.546 in
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No
• Inside Diameter: 0.546 in
• Nominal Size: 1/2 in
• Outside Diameter: 1.092 in
