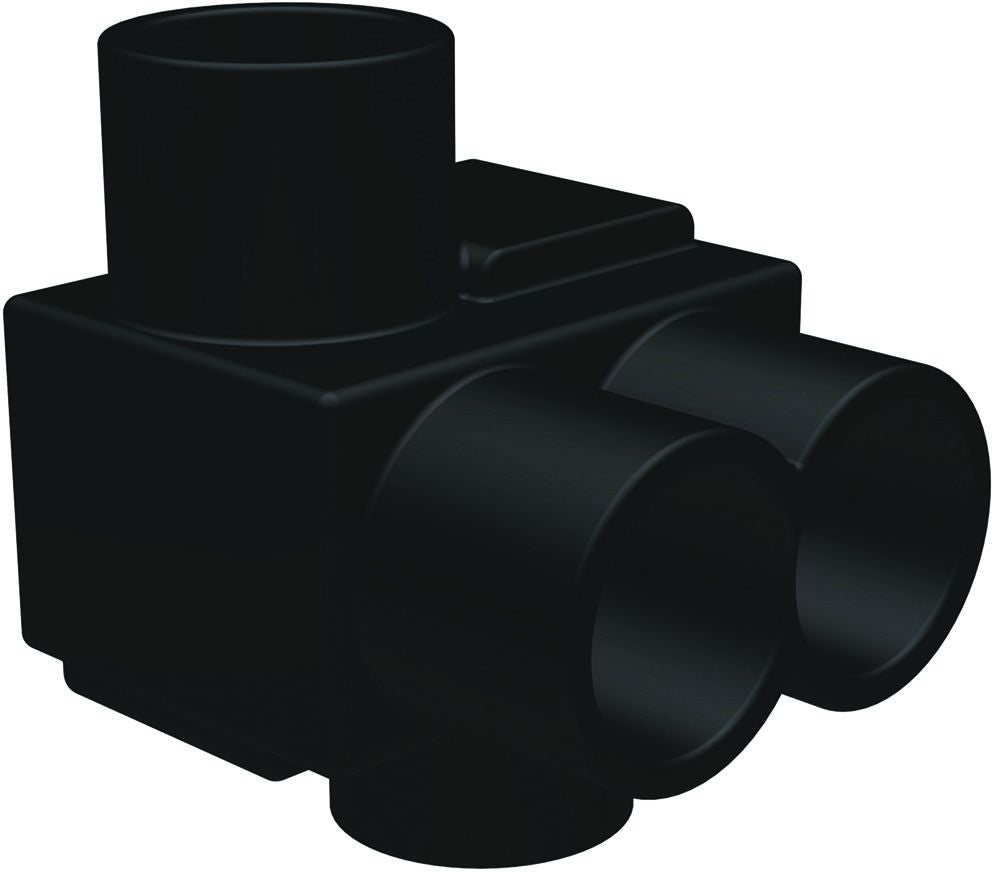

Burndy 1PLO42 mechanical split bolts and taps 2 port 14 AWG to 4 AWG

Product Description

The BURNDY 1PLO42 mechanical split bolts and taps facilitate tap connections and in-line splice/reductions. UL486B Listed and CSA Certified, this connector is dual-rated AL9CU for stranded copper or aluminum applications. It features a clear Plastisol covered AL6061-T6 aluminum body with pre-installed oxide inhibitor and accommodates a wire size range of 14-4 AWG.

• UNITAP Series
• UL486B Listed and CSA Certified
• Dual rated AL9CU for any stranded copper or stranded aluminum application

Product Highlights

The BURNDY 1PLO42 provides reliable tap connections with its durable construction and wide compatibility.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: 1PLO42
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• Insulation Material: Plastisol
• Manufacturer Part Number: 1PLO42
• Manufacturer: Burndy
• Product Series: UNITAP
• Description: BLKTAP,OFF,2 PRTS, 14-4
• Max Voltage: 600 V
• Wire Size Range: 14-4 AWG
• Material: Aluminum
• Direct Burial: No
• Approvals: UL
• Voltage Rating: 600 V
• Number of Ports: 2
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 14 AWG Stranded (Copper)
• Maximum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
• Body Material: Plastisol Covered AL6061-T6 Aluminum
