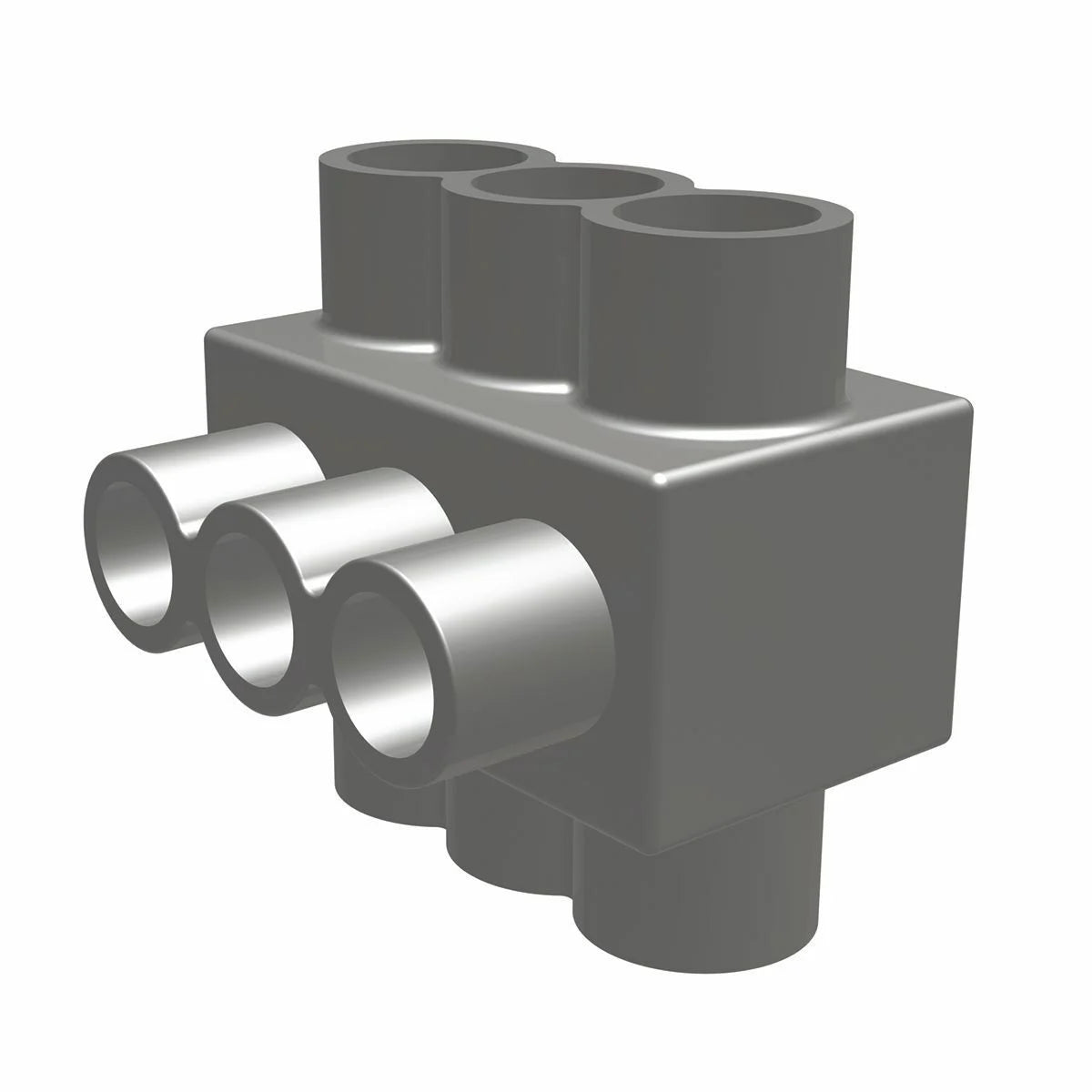

BURNDY 1PLD6006 Al Distribution Tap Connectors 600 V 6 Ports

Product Description

The BURNDY 1PLD6006 is a reliable Al distribution tap connector designed for indoor use. It features a double-sided entry that accommodates conductor sizes from #4 to 600 kcmil while maintaining a voltage rating of 600 V. This connector is built to ease installation and enhance electrical conductivity.

• Double-sided entry for easy installation
• Rated for conductors from #4 to 600 kcmil
• UV rated with a temperature rating of 90 degrees Celsius

Product Highlights

This product simplifies connections with a 375 in/lbs torque specification and eliminates the need for taping due to its UV rated plastisol covering.

Product Information

Standard Information

• Catalog Number: 1PLD6006
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Sub Brand: UNITAP
• Country of Origin: United States
• Made in USA: Yes
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Material: Aluminum
• Special Features: UV Rated Plastisol Covered, Oxide Inhibitor, UL486B Listed, Torque: 375 IN-LB, Wire Entry: Double
• Temperature Rating: 90 Deg C
• Conductor Size Range: 4 AWG - 600 KCMIL
• Number Of Ports: 6
• Wire Strip Length: 1-1/8 IN
• Cross Reference Products: PBTD-6-500
