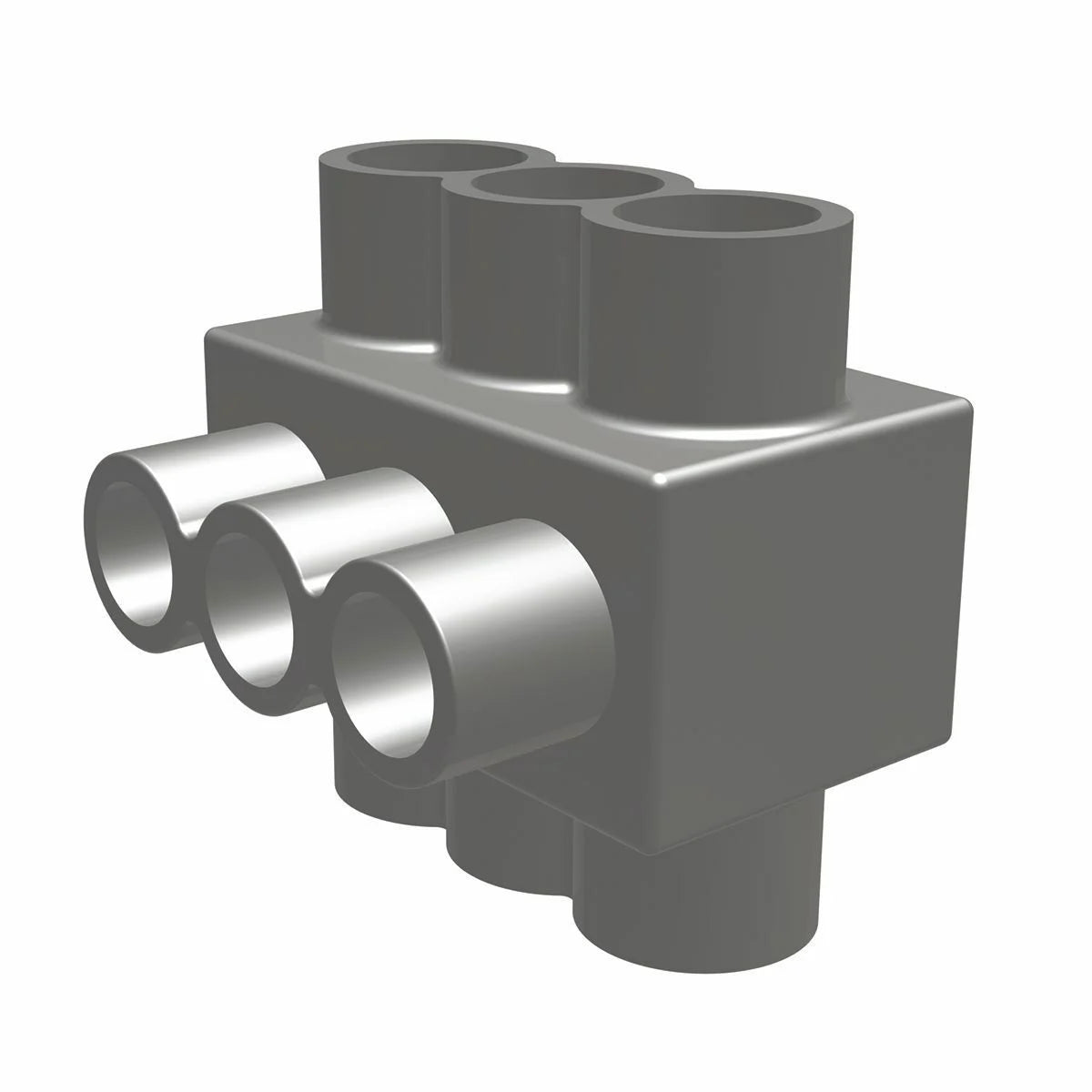

Burndy 1PLD6004 UV Rated Black UNITAP, 4, #4 - 600, 4.97 in L, 3 in

Product Description

The Burndy 1PLD6004 is a UV rated black UNITAP designed for electrical wire termination. This product features a robust aluminum body that simplifies the taping process, making installations quicker and more efficient.

• Constructed from UV rated plastisol covered AL6061-T6 aluminum
• Capable of handling conductors ranging from 4 AWG up to 600 KCMIL
• Equipped with an oxide inhibitor to prevent moisture and contaminants

Product Highlights

This product is suitable for indoor use and is ideal for connecting copper or stranded aluminum wires.

Product Information

Standard Information

• Brand: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: 1PLD6004
• Material: Aluminum
• Temperature Rating: 194°F
• Application: For indoor use, compatible with copper or stranded aluminum
• Conductor Size Range: 4 AWG to 600 KCMIL
• Number of Ports: 4
• Torque Rating: 375 inch-lbs
• Wire Strip Length: 1-1/8 inches
• Special Features: UV rated plastisol insulation, designed to save time
