BURNDY 1PLD6002 UV Rated Black UNITAP, 2, #4 - 600, 2.56 in L, 3 in

Product Description

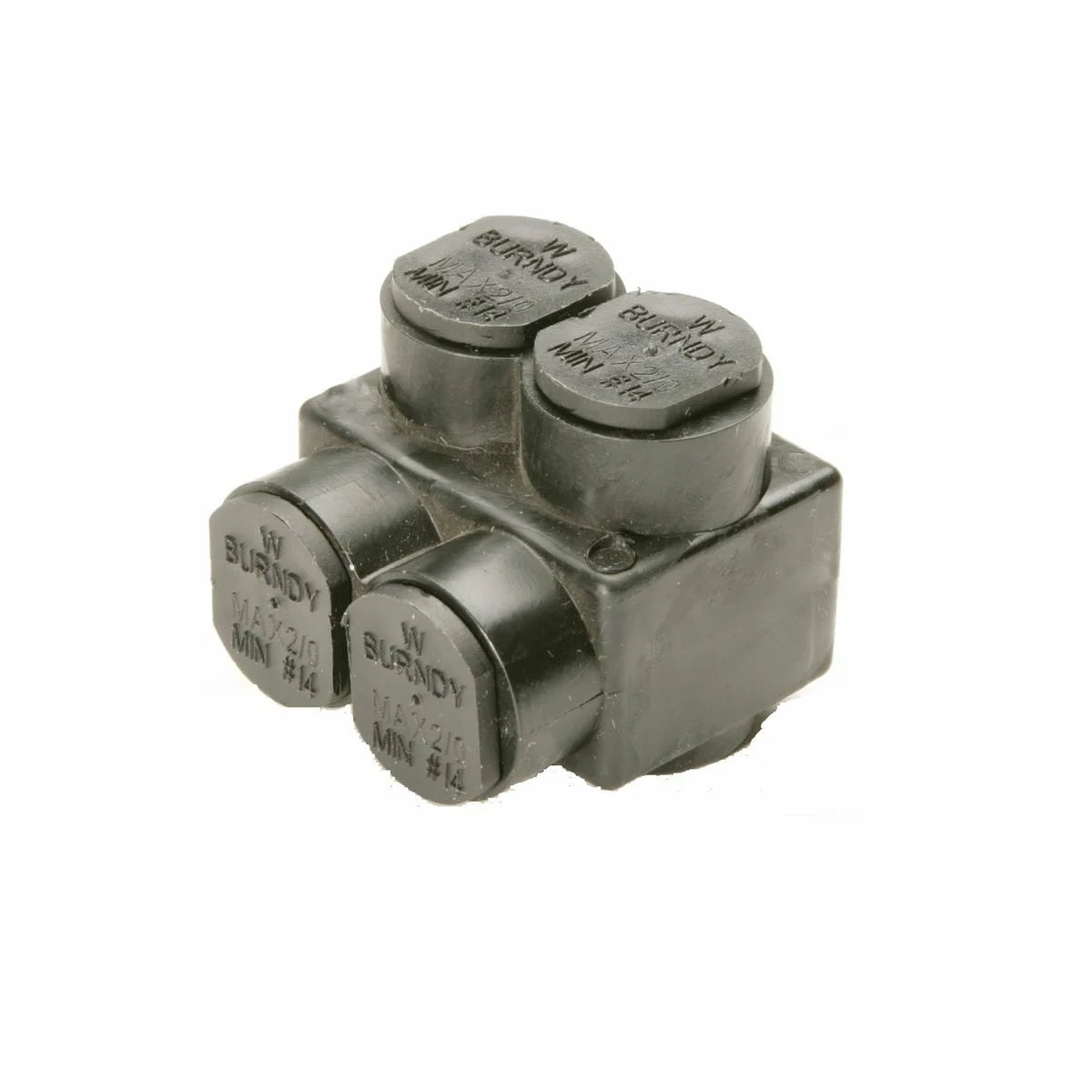

The BURNDY 1PLD6002 UV Rated Black UNITAP provides reliable electrical connections. Made from UV rated plastisol-covered AL6061-T6 aluminum, this product is designed for indoor use with copper or stranded aluminum conductors.

• Double wire entry for efficient connector installation
• Rated for conductor sizes from four AWG to six hundred KCMIL
• Torque rating of three hundred seventy-five IN-LB

Product Highlights

Eliminates the need for taping while providing moisture and contaminant resistance with a built-in oxide inhibitor.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: 1PLD6002
• Material: Aluminum
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Temperature Rating: 194
• Special Features: UV Rated Plastisol, Double Wire Entry, UL486B Listed
• Number of Ports: 2
• Wire Strip Length: 1-1/8 in
• Conductor Size (run - Range): 4 AWG - 600 KCMIL
