Burndy 1PLD44 Double Sided Insulated Multi-Tap Connector 4-Port 14-4 AWG

Product Description

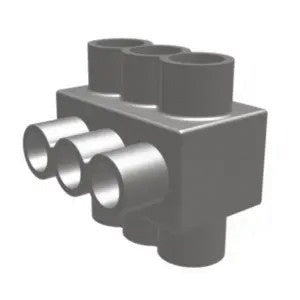

Burndy 1PLD44 is a double-sided insulated multi-tap connector designed for secure electrical connections. This connector features a compact design suitable for environments requiring reliable and efficient power distribution.

• Compatible with 14-4 AWG stranded copper and aluminum wires.
• UV rated plastisol insulation to protect against environmental factors.
• Includes built-in oxide inhibitor to reduce moisture intrusion.

Product Highlights

This connector optimizes space in wiring projects and minimizes inventory needs while ensuring strong connections.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer Part Number: 1PLD44

Technical Specifications

• UPC: 78181029484
• Material: AL6061-T6 Aluminum
• Insulation Material: Plastisol
• Number of Ports: 4
• Hex Size: 0.125 inches
• Installation Torque: 45 lb-Inch
• Dimensions: 1.95 inches length x 1.5 inches width x 1.25 inches height
• Voltage Rating: 600 Volt
• Temperature Rating: 194 degrees F
• Standards: UL Listed 486B, CSA Certified, RoHS Compliant
