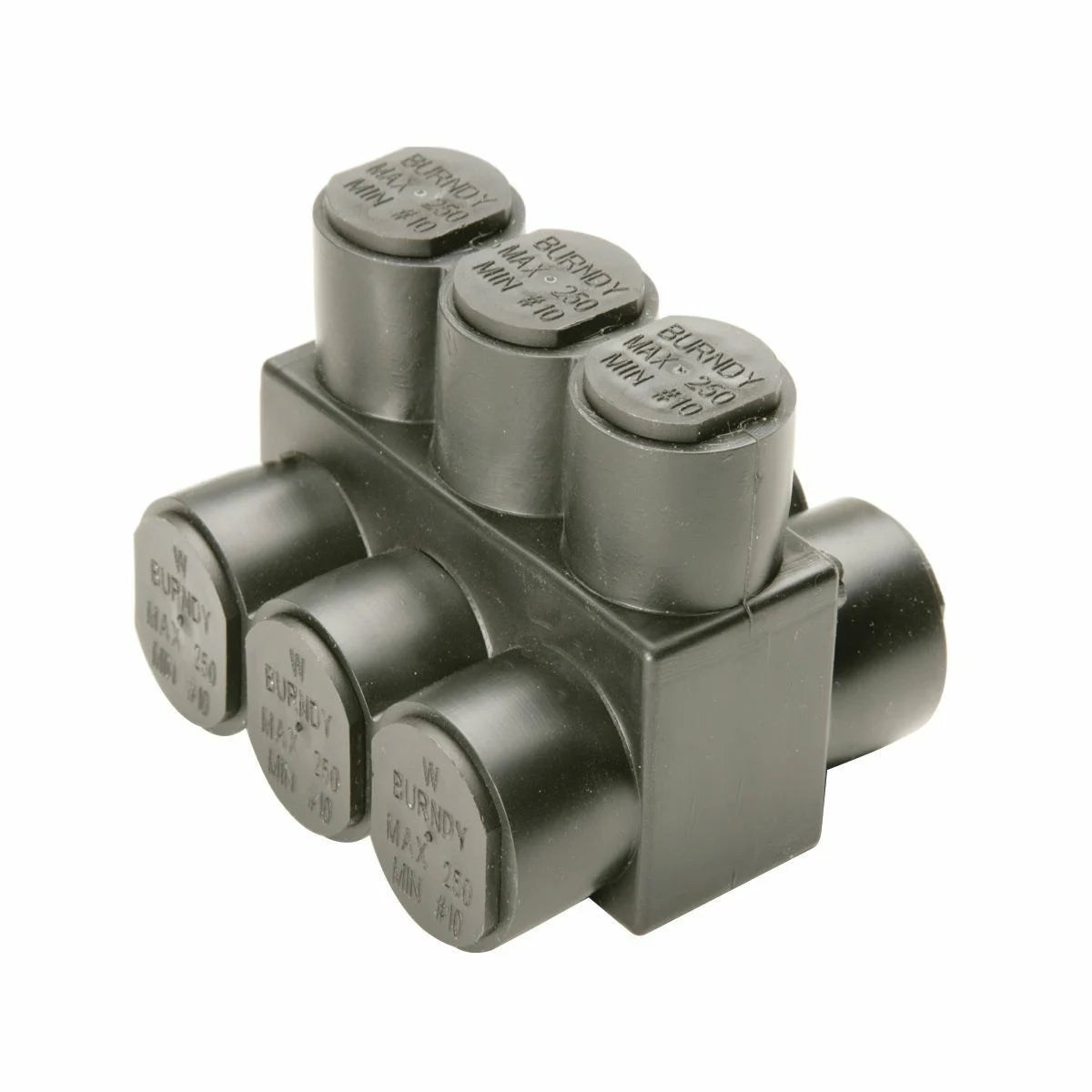

BURNDY 1PLD3503 Al Distribution Tap Connectors UV Black Plastisol Covered 3 Ports Double Sided Entry 10-350 kcmil 600 V

Product Description

The BURNDY 1PLD3503 Al Distribution Tap Connectors are designed for reliable wiring connections in various electrical applications. These connectors feature a UV black plastisol coating for added protection and durability.

• UV Rated Plastisol Covered
• Torque rating of 275 in-lbs
• Supports wire sizes from 10 AWG to 350 kcmil

Product Highlights

This connector is ideal for indoor use with copper or stranded aluminum wires, providing efficient connectivity.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: 1PLD3503
• Material: Aluminum
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Special Features: UV Rated Plastisol Covered, AL6061-T6 Aluminum Body
• Temperature Rating: 194 Degrees F
• Torque: 275 IN-LB
• Wire Entry: Double
• Number of Ports: 3
• Conductor Size Range: 10 AWG - 350 KCMIL
• Wire Strip Length: 1-1/8 IN
