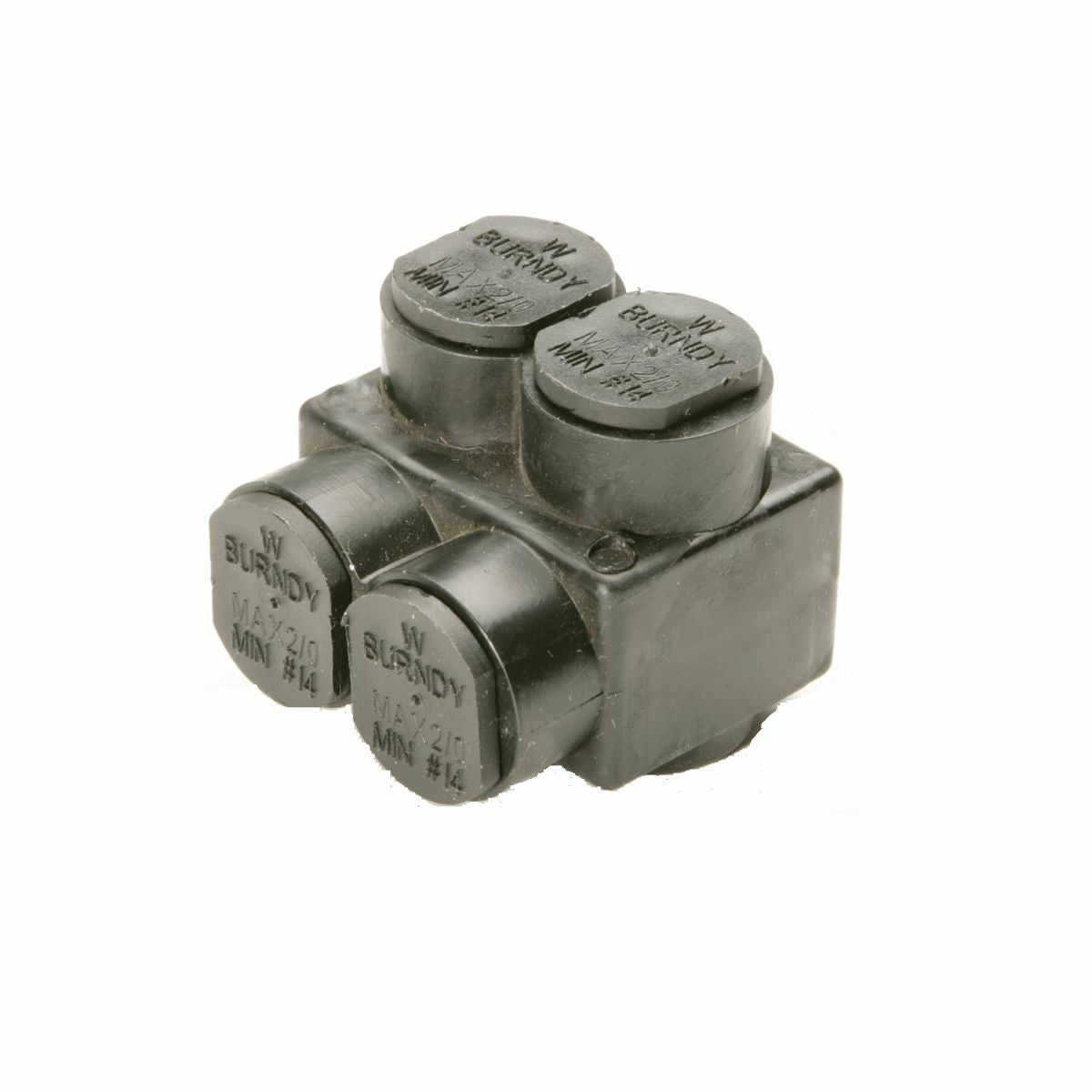

BURNDY 1PLD3502 Al Distribution Tap Connectors, 600 V 2 Ports

Product Description

The BURNDY 1PLD3502 Al Distribution Tap Connectors are designed for reliable connections in electrical systems. These connectors are made from aluminum and coated with UV-rated plastisol, providing durability and resistance to the elements. They feature two ports with double-sided entry for effective wiring connections and can accommodate conductors ranging from #10 to 350 kcmil. The connectors operate at a maximum voltage of 600 volts and are UL486B listed.

• UV rated plastisol cover for durability
• Torque specification of 275 in/lbs
• Applications for indoor use with copper or stranded aluminum

Product Highlights

The BURNDY 1PLD3502 connectors simplify installation with their range-taking capability and eliminate the need for additional taping, reducing inventory requirements.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: 1PLD3502
• Material: Aluminum
• Temperature Rating: 194 Degrees F
• Special Features: UV rated, torque rated at 275 in-lbs, accommodates conductors from 10 AWG to 350 KCMIL, double-sided entry
• Number of Ports: 2
• Application: For indoor use only, compatible with copper or stranded aluminum conductors
• Hex Size: 5/16 in
