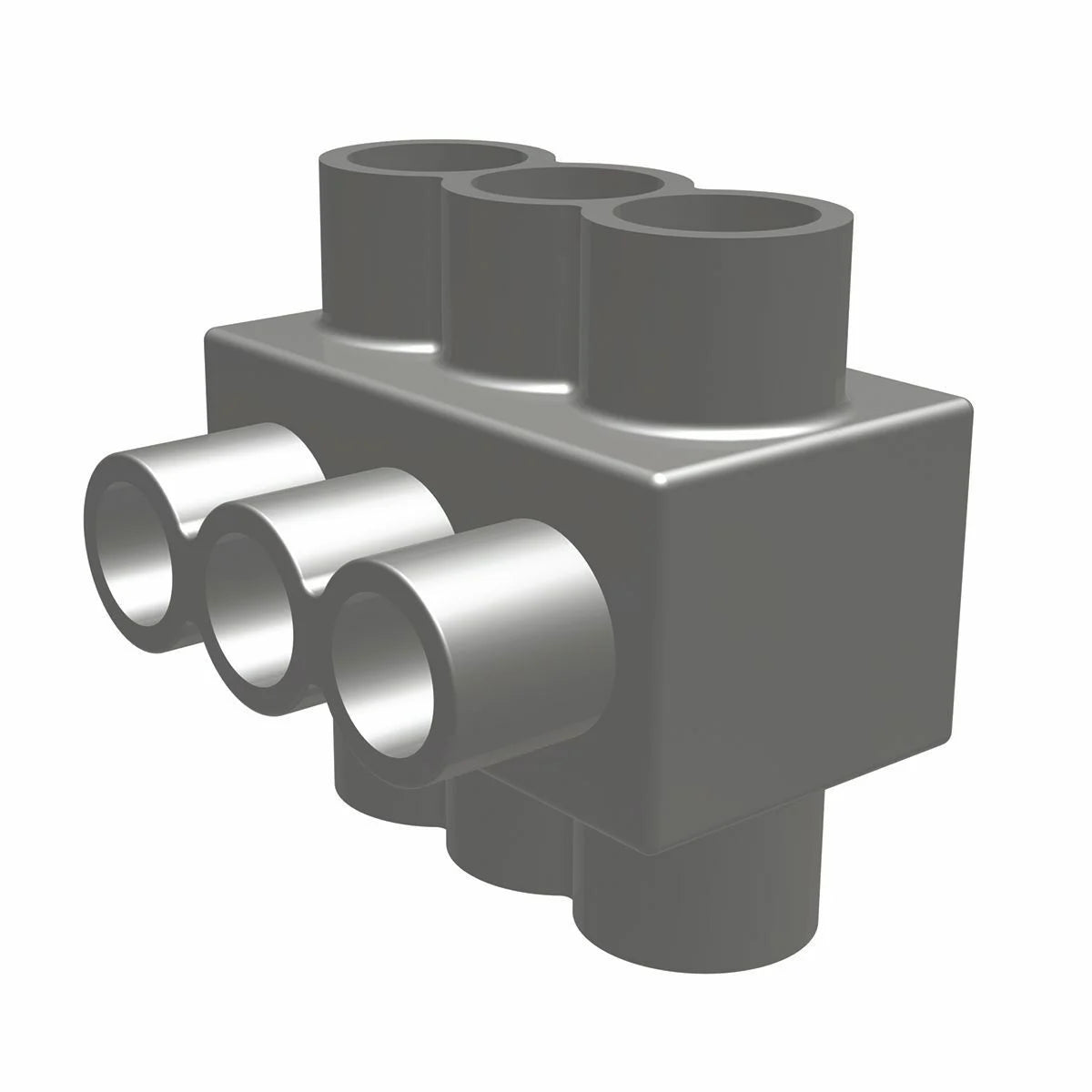

BURNDY 1PLD2504 Al Distribution Tap Connectors UV Black Plastisol Covered (4 Ports) 600 V

Product Description

The BURNDY 1PLD2504 Al Distribution Tap Connectors are designed for reliable electrical connections. This product features four ports for double-sided entry and can accommodate conductor sizes ranging from #10 to 250 kcmil. The connectors are rated for 600 volts and come with a torque specification of 275 in-lbs. The UV black plastisol covering provides added durability for indoor applications.

• Double-sided entry with four ports
• Compatible with 10 AWG to 250 KCMIL conductors
• Torque rating of 275 in-lbs

Product Highlights

Engineered for indoor use with copper or stranded aluminum conductors, the BURNDY 1PLD2504 offers a UV rated body and innovative design features to enhance performance.

Product Information

Standard Information

• Catalog Number: 1PLD2504
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For indoor use only, copper or stranded aluminum
• Country of Origin: United States
• Temperature Rating: 194 Degrees F
• UPC: 781810287194
• Special Features: UV rated plastisol cover, oxide inhibitor, range-taking capability, UL486B listed
• Number of Ports: 4
• Wire Entry Type: Double
