BURNDY 1PLD2503 UV Black Distribution Connectors #10-250 KCMIL 2.97 in L

Product Description

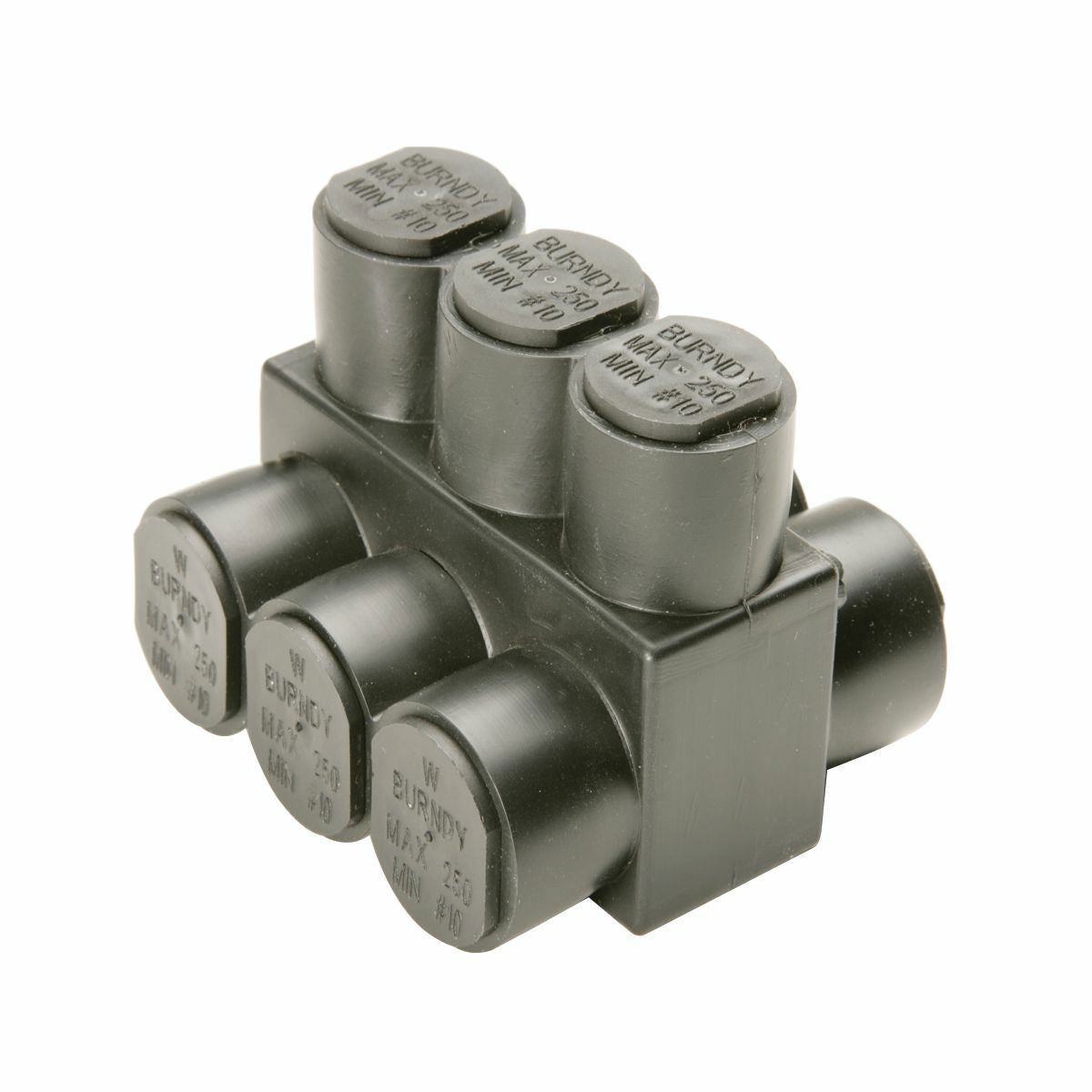

The BURNDY 1PLD2503 is a UV black distribution connector designed for secure electrical connections. It accommodates conductors ranging from #10 to 250 kcmil, making it suitable for various applications. This connector has a length of two point ninety-seven inches and a width of two point sixty-four inches.

• Suitable for copper or stranded aluminum applications
• Features a UV rated plastisol covering
• Three ports for multiple connections

Product Highlights

This product offers a reliable connection solution for indoor use, equipped with a pre-installed oxide inhibitor to block moisture and contaminants. The connector is rated UL486B, ensuring compliance with high safety standards.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: 1PLD2503
• Application: For indoor use only, copper or stranded aluminum
• Material: Aluminum
• Special Features: UV rated plastisol covered, AL6061-T6 aluminum body, oxide inhibitor pre-installed
• Conductor Size (run - range): 10 AWG - 250 KCMIL
• Temperature Rating: 194 Degrees F
• Wire Entry: Double
• Torque: 275 IN-LB
