BURNDY 1PLD2502 UV Black Distribution Connectors, #10-250 KCMIL, 2.03 in L, 2.64 in

Product Description

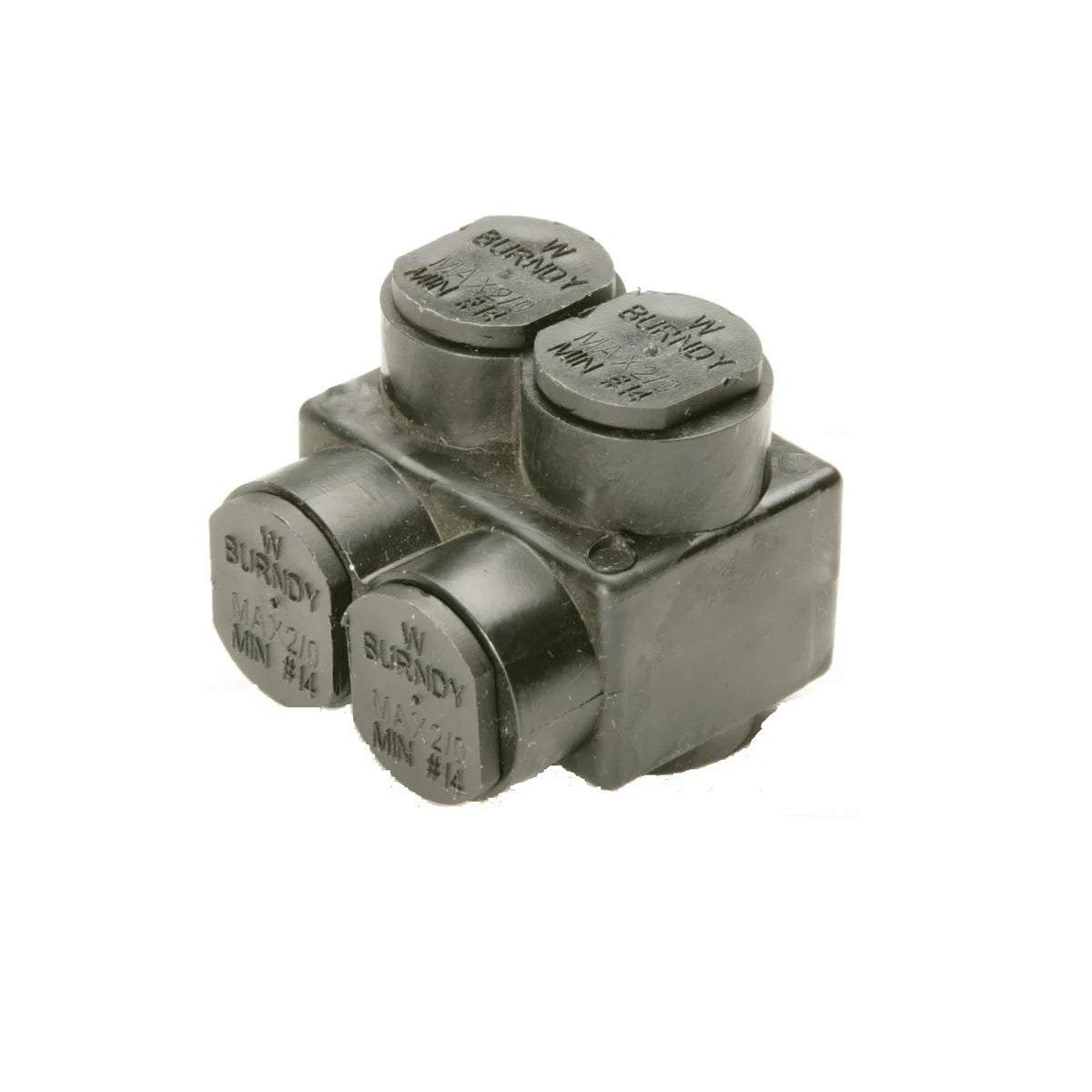

The BURNDY 1PLD2502 UV Black Distribution Connector is designed for electrical connections involving #10 to 250 KCMIL wire. This connector is made from aluminum and is suited for indoor use, specifically for copper or stranded aluminum conductors. The product offers a UV-rated plastisol coating, which enhances its durability and moisture resistance.

• Suitable for #10 to 250 KCMIL wire sizes
• Designed for indoor use with aluminum and copper conductors
• Features a UV-rated cover for added protection

Product Highlights

This connector's design simplifies wire installations and enhances reliability. The range-taking feature reduces the number of connectors needed on hand, and the pre-installed oxide inhibitor provides additional protection against moisture.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate
• Application: For indoor use only

Technical Specifications

• Catalog Number: 1PLD2502
• Material: Aluminum
• Temperature Rating: 194 Degrees F
• Torque Rating: 275 in-lb
• Wire Entry: Double
• Conductor Size Range: 10 AWG - 250 KCMIL
• Special Features: UV rated, oxide inhibitor, dual ports
• UPC: 781810287156
• Cross Reference: PBTD-2-250, IT-250, AMTD25062
