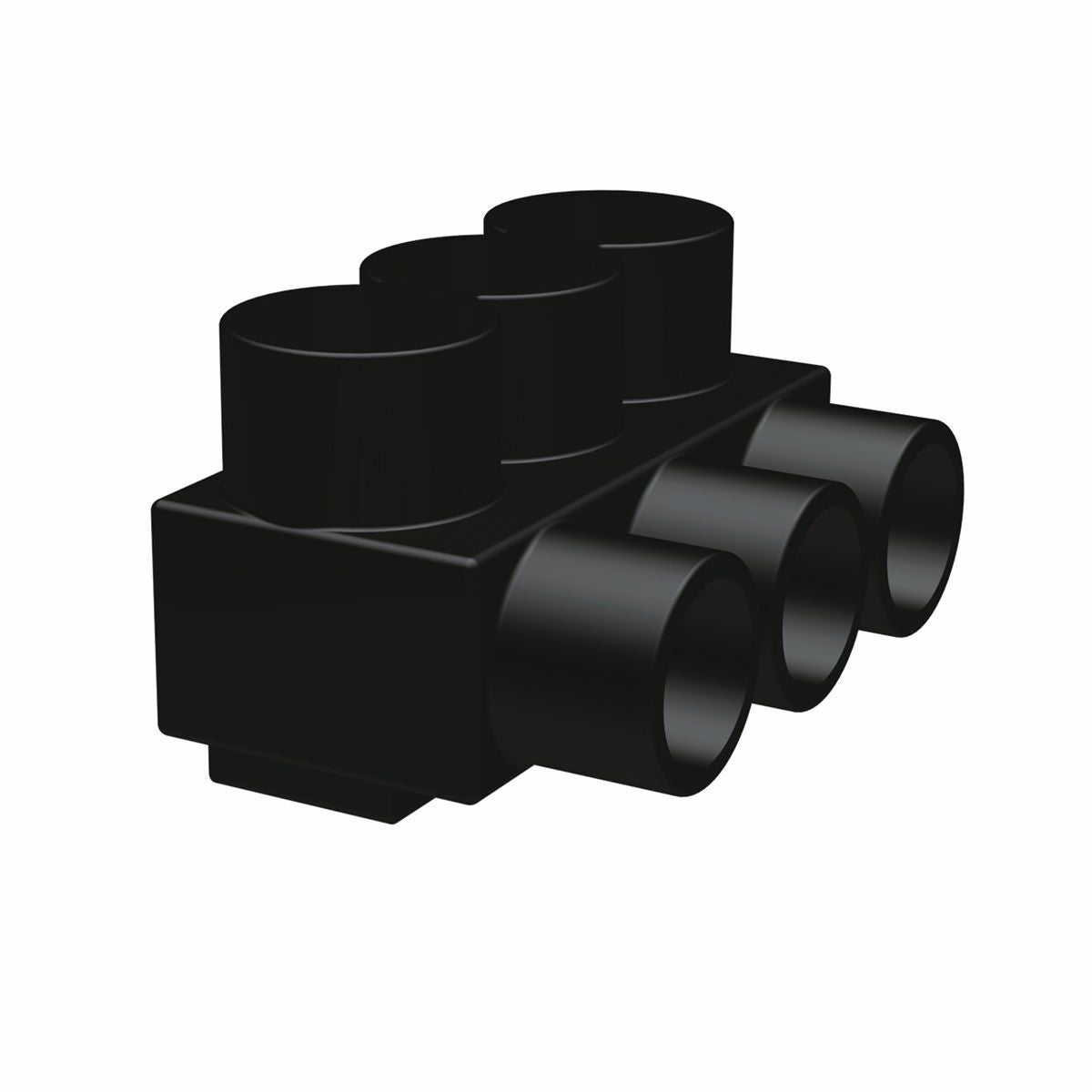

BURNDY 1PL44 UV Rated Black Unitap, 4, #14 - 4, 2.03 in L, 1.25 in W

Product Description

The BURNDY 1PL44 UV Rated Black Unitap offers a reliable solution for wire termination needs. Designed for indoor use, this product accommodates copper or stranded aluminum conductors ranging from #14 to #4 AWG. The innovative range-taking design lowers inventory connector requirements by reducing the number of connectors needed.

• Durable UV rated Plastisol coating.
• Single wire entry with four ports.
• Torque specifications of 45 inch-pounds.

Product Highlights

This multi-port connector ensures safety and efficiency, supporting applications where moisture and contaminants are a concern.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: 1PL44
• Material: Aluminum
• Number of Ports: 4
• Temperature Rating: 194 Degrees F
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Special Features: UV Rated, Oxide Inhibitor Pre-Installed, UL486B Listed
• Conductor Size Range: 14 - 4 AWG
• Wire Strip Length: 5/8 inches
