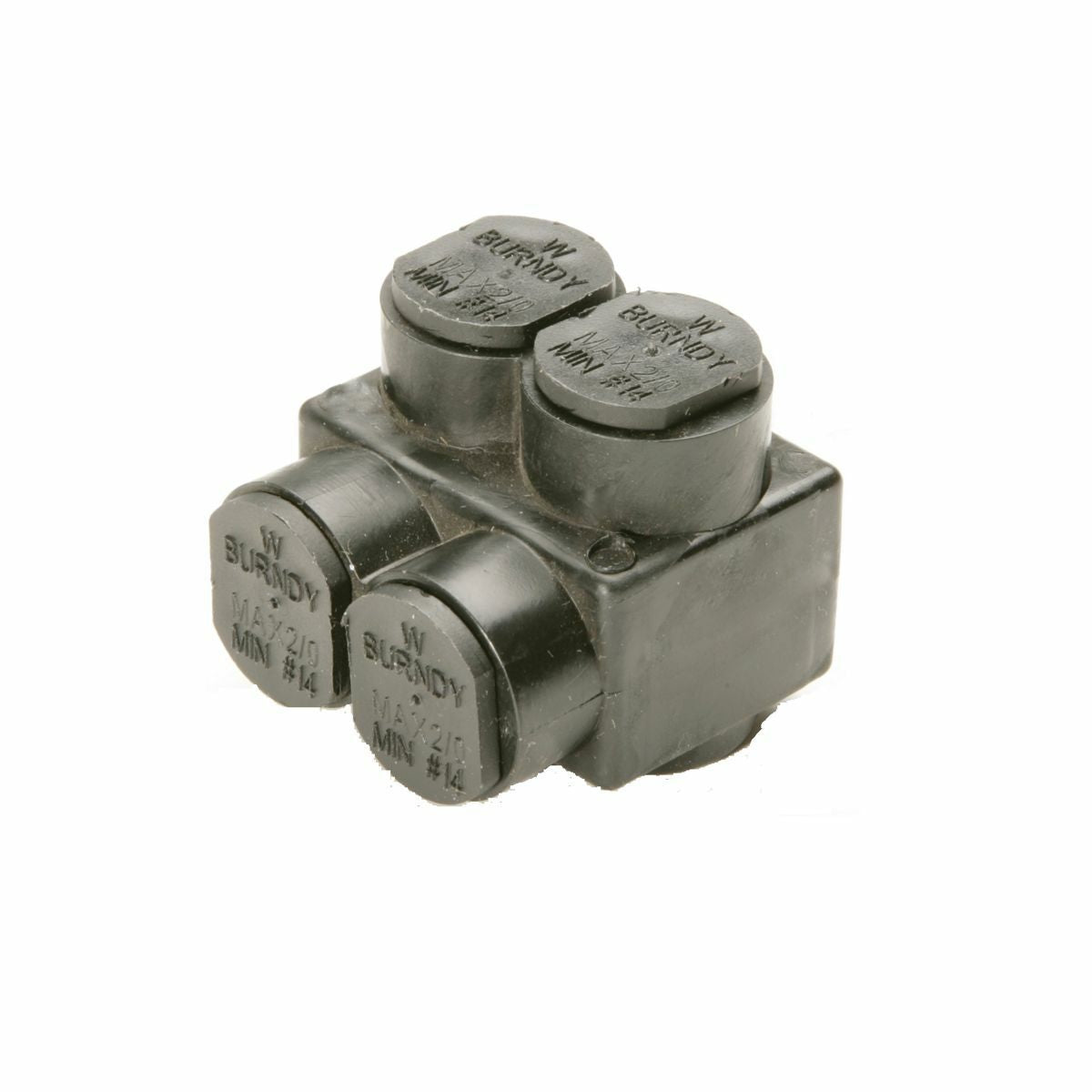

Burndy 1PL2502 Aluminum Multiple Tap Connector, UV Rated, 2 Port, 1 Sided Entry, 10 AWG-250 KCMIL

Product Description

The Burndy 1PL2502 is an aluminum multiple tap connector designed for indoor use. This product features a two-port design and accommodates wire sizes ranging from ten AWG to two hundred fifty KCMIL. The unit is UV rated and manufactured with a durable plastisol covering to withstand various environmental conditions.

• Designed for copper or stranded aluminum cables.
• Saves installation time by eliminating the need for taping.
• Includes pre-installed oxide inhibitor to prevent moisture and contaminants.

Product Highlights

The 1PL2502 connector simplifies wire connections in electrical systems, offering reliable performance in demanding applications.

Product Information

Standard Information

• Catalog Number: 1PL2502
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For indoor use only, compatible with copper or stranded aluminum
• Special Features: UV rated, oxides inhibitor pre-installed, UL486B listed
• Torque: 275 IN-LB
• Temperature Rating: 194 Degrees F
• Number of Ports: 2
• Conductor Size Range: 10 AWG - 250 KCMIL
• Country of Origin: United States
