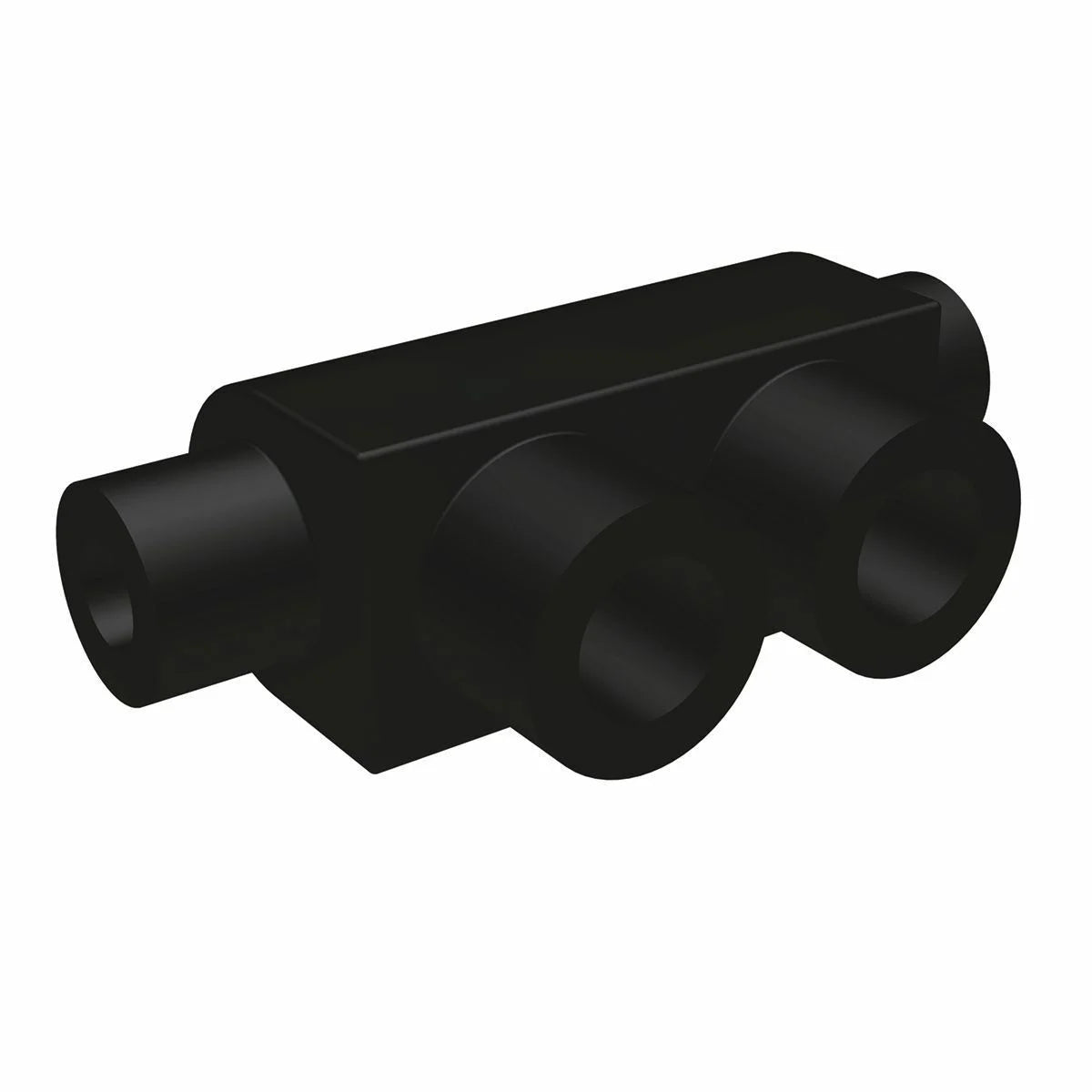

Burndy 1PBS500 UV Rated Black UNITAP? 2, #6 - 500 Kcmil, 5 in L, 1.62 in W.

Product Description

The Burndy 1PBS500 is a UV rated black UNITAP designed for connecting various conductor sizes, specifically in the range of six AWG to five hundred Kcmil. This product is suitable for indoor use and can be utilized with copper or stranded aluminum conductors.

• Rated for indoor use with copper or stranded aluminum wiring.
• Features UV rated plastisol for effective insulation.
• UL486B listed, ensuring compliance and safety standards.

Product Highlights

The Burndy 1PBS500 offers a solution for wire terminations, ensuring reliability and safety in electrical connections.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: 1PBS500
• Country of Origin: United States
• Material: Aluminum
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Special Features: UV rated plastisol covered AL6061-T6 aluminum body, oxide inhibitor pre-installed, range-taking capability, UL486B listed, torque: 375 in-lb, hex size: 1/2 in, wire strip length: 1-1/2 in, number of ports: 2
• Temperature Rating: 194 degrees F
• Conductor Size (Run - Range): 6 AWG - 500 KCMIL
