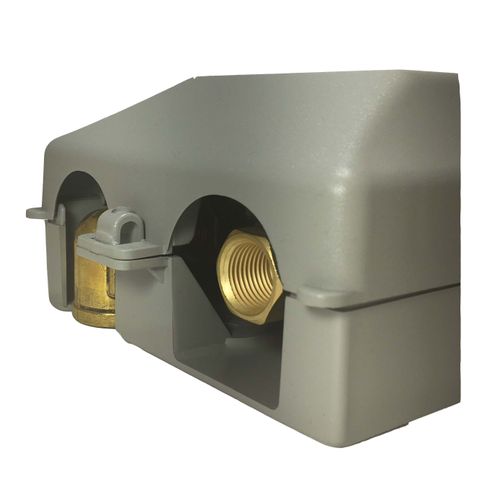

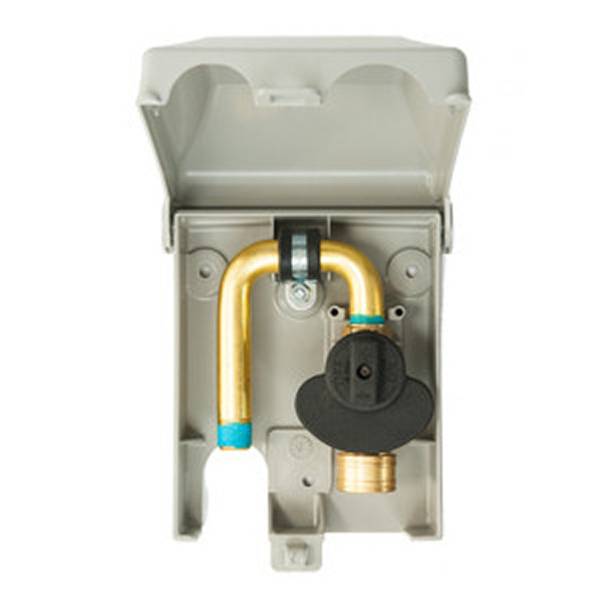

Burnaby GO101-6G-50 Pvc Gas Plug With 1/2 inches Rear Npt Inlet X 3/8 inches Quick Disconnect Outlet

Product Description

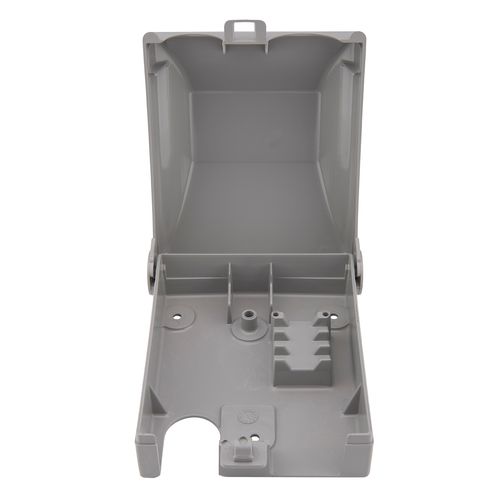

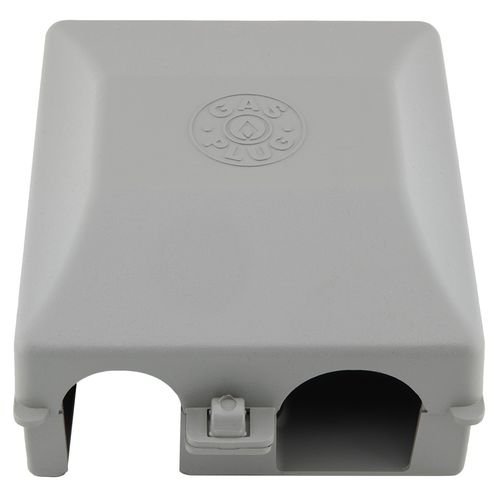

The BURNABY GO101-6G-50 PVC Gas Plug provides a safe and secure connection for your barbeque, patio heater, stove, or dryer directly to your home’s gas supply. It features a lockable, weather-durable, UV-rated gray PVC enclosure. Complete with standoffs for siding or stone surface applications.

• 1/2" Rear NPT Inlet, 3/8" Quick Disconnect Outlet, male plug included
• 60,000 BTU NG / 90,000 BTU LP
• Low Pressure Gas Connection - 1/2 PSI

Product Highlights

The gas plug is CSA approved for indoor/outdoor use and approved to -40 degrees C. A thermal valve shuts off gas flow in conditions over 300°F.

Product Information

Standard Information

• Brand: BURNABY
• Manufacturer Part Number: GO101-6G-50

Technical Specifications

• Product Type: Gas Plug
• Inlet Size: 1/2"
• Outlet Size: 3/8"
• Low pressure gas connection: 1/2 PSI
• High pressure gas connection: 2 PSI
• Available in: weather-durable UV rated white or gray PVC enclosure
• Cover: Lockable cover with secured hinges
• Use: CSA approved indoor / outdoor use
• Natural Gas: 60,000 BTU Natural Gas @ 0.6 SP. @ 7 w.c.
• Propane: 90,000 BTU Propane @ 1.53 SP. @ 11 w.c.
• Inlet connection: 3/8 or 1/2 NPT rear or bottom inlet connection included
• Quick disconnect plug: 3/8 Quick disconnect plug included
• Dimensions: 6 7/8” x 5 3/8” x 3”
• Temperature Rating: Approved to -40 degrees C
• Applications: Complete with standoffs for siding or stone surface applications
• Model: GO101-6G-50
• Pressure: LOW – 1/2 PSI
• Outlet: 3/8"
• Inlet: 1/2" REAR
• PVC Box: GRAY
• Brand: Burnaby
• Product Dimensions: 3"D x 5.38"W x 6.88"H
• Special Feature: Weather Resistant
• Fuel Type: Gas
• Installation Type: Surface mount
• Item Dimensions D x W x H: 3"D x 5.38"W x 6.88"H
• Item Dimensions: 3 x 5.38 x 6.88 inches
• Finish Types: PVC
• Material Type: PVC
• Handle Material: PVC
• Frame Material: PVC
• Model Name: PVC Gas Plug™
