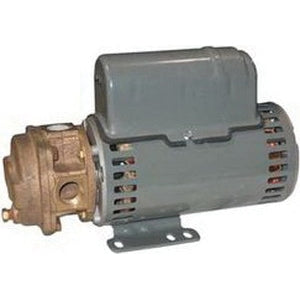

Burks 5CT5M Regenerative Turbine Pump 1/2 hp 115/230 VAC

Product Description

The Burks 5CT5M is a regenerative turbine pump designed for moving clear water and similar non-abrasive liquids. This pump operates at 115/230 VAC and has a power rating of one-half horsepower. It can provide a flow rate ranging from 0.3 to 8.3 gallons per minute and can achieve a maximum head of three hundred fifty feet. Engineered by Crane Pumps & Systems, it is suitable for various applications.

• Available in bronze or stainless steel construction
• Features Life-Lok external impeller adjustment
• Comes equipped with standard mechanical shaft seal

Product Highlights

This turbine pump is built for durability and efficiency in high-pressure applications, ensuring long-lasting performance in challenging conditions.

Product Information

Standard Information

• Brand: Burks
• Manufacturer: Crane Pumps & Systems

Technical Specifications

• Connection Size: 1 in NPT
• Dimension: 16-1/4 in L x 6-1/2 in W x 6-5/8 in H
• Flow Rate: 0.3 - 8.3 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Impeller Material: Bronze
• Item Name: Regenerative Turbine Pump
• Material: Cast Iron
• Maximum Feet of Head: 350 ft
• Phase: 1 ph
• Pressure Rating: 150 psi
• RPM: 3450 rpm
• Series: CT
• Temperature Rating: 225 deg F
• Type: Close Coupled
• Voltage Rating: 115/230 VAC
