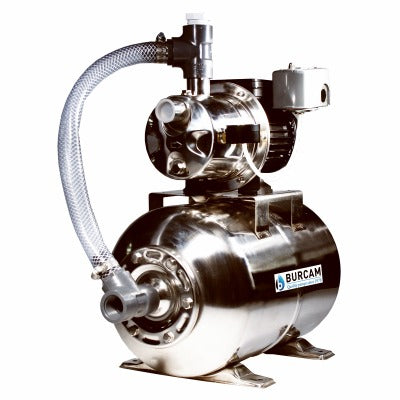

Burcam Pumps Inc 506547SS Shallow Well Jet Pump 3/4 Hp

Product Description

The BURCAM PUMPS INC 506547SS is a 3/4 horsepower stainless steel shallow well jet pump packaged with a 6.6-gallon stainless steel air pressure tank. Designed for pumping depths of 25 feet or less, this unit delivers up to 900 US gallons per hour through a 1-inch NPT connection. The totally enclosed 115/230-volt motor includes built-in thermal overload protection, helping guard against burnout during demanding service cycles. The stainless steel pump body resists corrosion, making it suitable for potable water applications where rust contamination is a concern. Plumbers and well service contractors install this unit in residential and light-commercial shallow well water supply systems.

This pump and tank combination is suited for residential properties drawing water from a shallow well at depths of 25 feet or less. The pre-assembled design reduces field labor time, and the built-in injector eliminates the need for a separate ejector assembly. The unit is appropriate for domestic water supply, pressure boosting, and irrigation feed applications where a compact, corrosion-resistant pump station is required. The included stainless steel pressure tank maintains system pressure and reduces pump short-cycling.

Key Features

• 3/4 HP totally enclosed motor rated for 115/230-volt operation
• Flow rate up to 900 US gallons per hour for high-demand shallow well service
• 6.6-gallon stainless steel air pressure tank included and pre-assembled
• Stainless steel pump body resists corrosion and rust contamination in potable water systems
• Built-in injector and 1-inch NPT pipe connections simplify installation
• Thermal overload protection guards the motor against heat-related failure

Compatibility

Designed as an OEM-style shallow well jet pump and tank package suitable for residential water supply systems with static water depths of 25 feet or less.

Installation Notes

Installation should be performed by a licensed plumber or pump service technician in accordance with applicable local plumbing codes. Disconnect and lock out all electrical power before servicing or wiring the motor. Verify supply voltage matches the motor's dual-voltage configuration before energizing. Prime the pump fully before initial startup to prevent dry-run damage to the pump seal and impeller.
