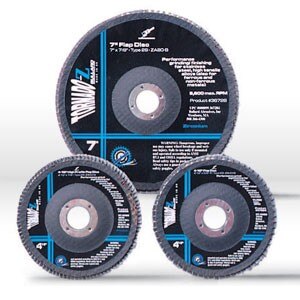

Bullard 36634 Type 29 Flap Disc 4.5 Inch 40 Grit Zirconium

Product Description

The BULLARD 36634 is a Type 29 high-profile zirconium flap disc engineered for aggressive metal grinding and finishing. The Tornado-Z design features overlapping abrasive flaps bonded to a fiberglass backing plate, delivering consistent stock removal and a refined surface finish in a single pass. At 4.5 inches in diameter with a 7/8 inch arbor bore, this disc runs at up to 13,300 RPM on compatible angle grinders. The 40-grit zirconium alumina abrasive is well-suited for heavy material removal on ferrous metals, weld seating, and surface preparation work performed by fabricators, pipefitters, and ironworkers.

This flap disc is intended for metal grinding and finishing applications across fabrication shops, structural steel work, and pipe preparation. The Type 29 angled flap configuration increases surface contact on flat and contoured workpieces compared to a flat Type 27 disc, making it a common choice for weld blending and edge work. It fits standard 4.5 inch angle grinders with a 7/8 inch arbor. Discs are sold in a box quantity of 10.

Key Features

• Type 29 high-profile angled design increases contact on flat and contoured surfaces
• Zirconium alumina abrasive provides aggressive cut rate on ferrous metals
• 40 grit for heavy stock removal and weld grinding
• Rated to 13,300 RPM for use with standard 4.5 inch angle grinders
• 4.5 inch diameter with 7/8 inch arbor bore for broad grinder compatibility
• Box quantity of 10 discs for shop and job-site stocking

Compatibility

Designed for use with 4.5 inch angle grinders equipped with a 7/8 inch arbor, rated to a minimum of 13,300 RPM.

Installation Notes

Flap discs must be installed and operated by personnel familiar with angle grinder safety practices. Always verify the grinder guard is in place and confirm the tool RPM rating meets or exceeds the disc maximum before mounting. Inspect the disc for damage before each use and discard any disc showing delamination or cracking. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Disc Type: Type 29 High Profile
• Abrasive Material: Zirconium Alumina
• Grit: 40
• Diameter: 4.5 inches
• Arbor Size: 7/8 inch
• Max RPM: 13,300
• Application: Metal Grinding and Finishing
• Box Quantity: 10

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 36634
