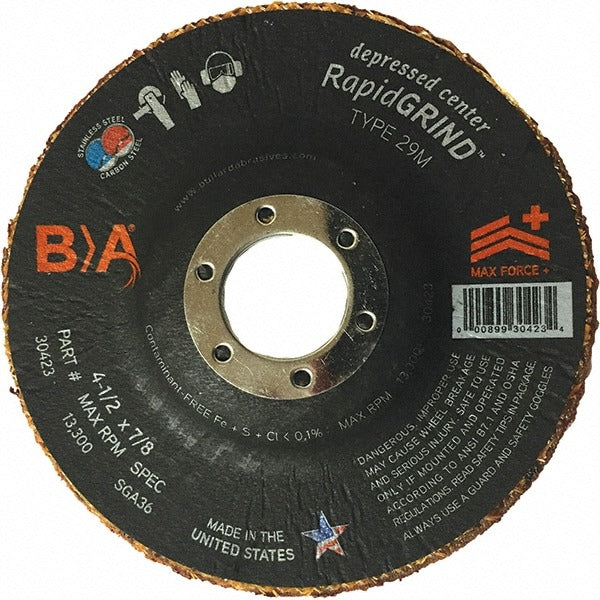

Bullard 30423 Type 29 Grinding Wheel 4.5in 36 Grit

Product Description

The BULLARD 30423 is a Type 29 depressed center grinding wheel designed for aggressive material removal on carbon steel and stainless steel. It measures 4.5 inches in diameter and 0.125 inches thick, with a 7/8 inch arbor hole for direct mounting to standard angle grinders. The ceramic abrasive grain is bonded with a resinoid bond and cut to a coarse 36 grit, suited for fast stock removal and weld cleanup. Maximum rated speed is 13,300 RPM. The wheel weighs approximately 0.1 pounds. Installers and fabricators working in metal trades will find this wheel a direct fit for 4.5 inch angle grinder applications.

This wheel is intended for use with 4.5 inch angle grinders in both shop and field applications. The Type 29 conical profile allows the operator to work at a low angle to the workpiece, making it effective for surface grinding, deburring, and blending on flat or slightly contoured metal surfaces. It is appropriate for use on carbon steel and stainless steel workpieces in fabrication, maintenance, and repair settings.

Key Features

• Type 29 depressed center profile for low-angle surface grinding
• Ceramic abrasive grain at 36 grit for coarse, fast material removal
• Resinoid bond construction for durability under load
• Rated to 13,300 RPM maximum for use with standard 4.5 inch angle grinders
• 7/8 inch arbor hole fits common angle grinder spindle sizes
• Suitable for carbon steel and stainless steel applications

Compatibility

Designed for use with 4.5 inch angle grinders accepting a 7/8 inch arbor. Rated for carbon steel and stainless steel material applications.

Installation Notes

This wheel should be installed and operated by personnel familiar with abrasive wheel safety per ANSI B7.1 standards. Always power down and disconnect the angle grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and never exceed the rated maximum RPM of 13,300. Wear appropriate PPE including eye protection and gloves when operating angle grinders with abrasive wheels.
