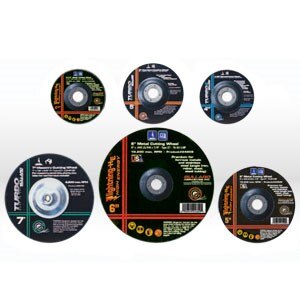

Bullard 24507 Type 27 Cut Off Wheel 5x.040x7/8 Metal

Product Description

The BULLARD 24507 is a Type 27 depressed-center cut off wheel engineered for use with right-angle grinders on metal applications. Measuring 5 inches in diameter by 0.040 inches thick with a 7/8-inch arbor bore, this wheel is rated at 15300 RPM and built for demanding cutting tasks across a range of job site conditions. The depressed-center design lowers the cutting plane relative to the guard and spindle, giving the operator access to tight, confined, and flush-cut positions that a flat wheel cannot reach. Licensed tradespeople and fabricators working with metal substrates will find this wheel suited to production and field cutting alike.

This cut off wheel is intended for use with right-angle grinders in metal cutting applications. The Type 27 geometry is particularly effective when flush cutting is required, such as cutting fasteners, pipe, structural steel, or sheet metal close to a surface. It is sold by the box and is appropriate for use in fabrication shops, mechanical rooms, and field service environments where metal cutting is part of routine work.

Key Features

• Type 27 depressed-center profile allows flush and close-quarter cutting
• 5-inch diameter with 0.040-inch thin kerf minimizes material loss during cuts
• 7/8-inch arbor bore fits standard right-angle grinder spindles
• 15300 RPM maximum rated speed for high-speed grinder compatibility
• Designed specifically for metal cutting applications

Compatibility

Designed as an OEM-style replacement and standard fit for right-angle grinders accepting a 7/8-inch arbor and 5-inch cut off wheels rated for metal cutting.

Installation Notes

Cut off wheels must be installed and changed by a qualified operator following the grinder manufacturer's instructions and applicable ANSI B7.1 safety standards. Always inspect the wheel for cracks or damage before mounting and never exceed the wheel's maximum RPM rating. Ensure the grinder is unplugged or the battery is removed before changing wheels. Wear appropriate PPE including eye protection and gloves during installation and operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 5 inches
• Thickness: 0.040 inches
• Arbor Bore: 7/8 inch
• Maximum RPM: 15300 RPM
• Application Material: Metal
• Weight: 2.35 pounds
• Unit of Measure: Box

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 24507
