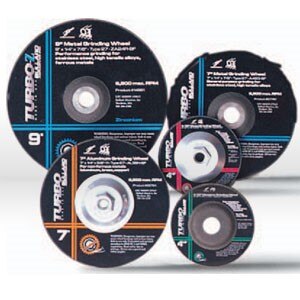

Bullard 24437 Type 27 Turbo Cutoff Grinding Wheel 4.5in

Product Description

The BULLARD 24437 is a Type 27 depressed-center turbo wheel engineered for combination cutting and light grinding in a single application. At 4.5 inches in diameter with a 0.125-inch thickness and a 0.875-inch arbor hole, this GRT 30 grit wheel eliminates the need to swap tools mid-job, saving time on demanding pipeline and fabrication work. The turbo segment design delivers smooth material removal and consistent control across both cut-off and light grinding tasks. Sold individually, this wheel is suited for use with standard 4.5-inch angle grinders found on most commercial and industrial job sites.

The 24437 is intended for pipeline work and similar applications where a single wheel must handle both cutting and light surface grinding. Its depressed-center profile allows clearance when working in tight joints or along pipe runs. The turbo geometry reduces vibration and improves tracking during cuts, which is especially useful when consistent groove profiles are required. Fabricators, pipefitters, and ironworkers working in structural steel, pipe, and general metal fabrication will find this wheel appropriate for their workflow.

Key Features

• Type 27 depressed-center profile provides clearance for flush and pipeline cuts
• Turbo segment design supports combination cutting and light grinding without wheel changes
• 4.5-inch diameter fits standard angle grinders
• GRT 30 grit delivers controlled material removal on metal and pipe
• 0.125-inch thickness balances cut speed with durability
• 0.875-inch arbor hole fits common spindle sizes

Compatibility

Designed as an OEM-style replacement-grade Type 27 depressed-center wheel for use with 4.5-inch angle grinders accepting a 0.875-inch arbor.

Installation Notes

Abrasive wheel mounting and use should be performed by qualified personnel following ANSI B7.1 and applicable OSHA 29 CFR 1910.215 standards. Inspect the wheel for cracks or damage before mounting and never exceed the rated maximum RPM marked on the wheel. Ensure the grinder guard is in place and that all power is disconnected before mounting or removing the wheel. Use the correct flange and locking nut for Type 27 wheels to prevent improper seating.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 4.5 inches
• Thickness: 0.125 inches
• Arbor Size: 0.875 inches
• Grit: GRT 30
• Weight: 0.2 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 24437
