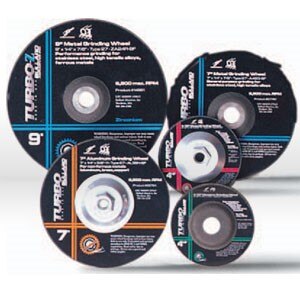

Bullard 20961 Turbo Pipeline Grinding Wheel 9 in Type 27

Product Description

The BULLARD 20961 is a Type 27 depressed-center turbo pipeline wheel built for combination cutting and light grinding in a single pass. Measuring 9 inches in diameter with a 1/4-inch thickness and a 7/8-inch arbor bore, it is rated to 6500 RPM. The turbo design delivers a smooth grind with controlled stock removal on metal, making it a practical choice for pipeline and fabrication work where switching between wheels wastes time. Welders, pipefitters, and metal fabricators reach for this wheel when one tool needs to handle both tasks without a changeover.

This wheel is intended for use on angle grinders in metal cutting and light grinding applications, particularly pipeline work. The Type 27 depressed-center profile keeps the grinding surface close to the workpiece for better visibility and control in tight or positional welds. It is suited for field fabrication, pipe spool work, and structural steel applications where a fast, clean grind is required after a cut.

Key Features

• Type 27 depressed-center profile for improved access and sightline during grinding
• Turbo design enables combination cutting and light grinding in one wheel
• 9-inch diameter with 1/4-inch thickness and 7/8-inch arbor bore
• Rated to 6500 RPM for use on compatible angle grinders
• Eliminates the need to change wheels between cutting and grinding tasks
• Designed for metal fast-grind applications with smooth, controlled results

Compatibility

Designed for use on angle grinders accepting a 9-inch Type 27 depressed-center wheel with a 7/8-inch arbor. Verify that the grinder's rated RPM meets or exceeds 6500 RPM before mounting.

Installation Notes

Mounting and use of grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards. Inspect the wheel for cracks or chips before each use and never exceed the marked maximum RPM. Ensure the grinder guard is in place and that all power is disconnected before changing wheels. Always use the correct flange and arbor hardware specified for the wheel and grinder combination.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 9 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 6500 RPM
• Application: Metal Fast Grind
• Weight: 1.35 pounds
• Unit of Measure: Each

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 20961
