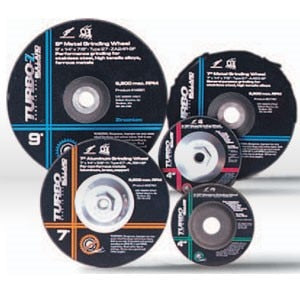

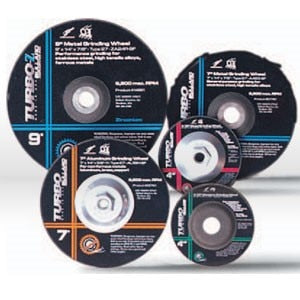

Bullard 20768 Turbo Pipeline Grinding Wheel 7 in

Product Description

The BULLARD 20768 is a Type 27 depressed-center turbo pipeline grinding wheel engineered for combination cutting and light grinding in a single application. Rated at 8500 RPM, it measures 7 inches in diameter with a 1/4-inch thickness and a 5/8-11 arbor hole. The 24-grit metal fast-grind specification makes it well suited for aggressive material removal on pipe and structural steel. Licensed tradespeople working in pipeline fabrication, maintenance, and field welding rely on this wheel to reduce tool changes and keep workflow moving on demanding jobs.

This wheel is designed for use with right-angle grinders in pipeline and heavy fabrication environments. Its turbo-segment geometry delivers smooth grinding action and consistent control on carbon steel pipe, making it a practical choice for combination cut-and-grind passes where switching wheels between operations would otherwise slow production. It is sold in a minimum quantity of 10 per order and applies to both shop and field conditions.

Key Features

• Type 27 depressed-center profile for clearance in tight pipeline and structural applications
• Combination cutting and light grinding in one wheel eliminates mid-job wheel changes
• 8500 RPM maximum operating speed rated for standard right-angle grinders
• 24 GRT metal fast-grind abrasive for aggressive stock removal
• 5/8-11 arbor fits the most common right-angle grinder spindle standard
• Turbo segment pattern promotes smooth surface finish and stable control during grinding passes

Compatibility

Designed as an OEM-style replacement-grade abrasive wheel for right-angle grinders accepting a 5/8-11 arbor spindle and capable of operating at or below 8500 RPM.

Installation Notes

Installation and wheel changes must be performed by a qualified operator following ANSI B7.1 and applicable OSHA abrasive wheel safety standards. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect the wheel for cracks or damage before each use and never operate above the marked maximum RPM. Wear appropriate PPE including a face shield, gloves, and hearing protection during grinding operations.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 7 inches
• Thickness: 1/4 inch
• Arbor Size: 5/8-11
• Maximum RPM: 8500
• Grit: 24 GRT
• Application: Metal Fast Grind
• Weight: 1.1 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 20768
