Bulbrite 773166 Led Recessed Downlight 14W 5-6in 3000K

Product Description

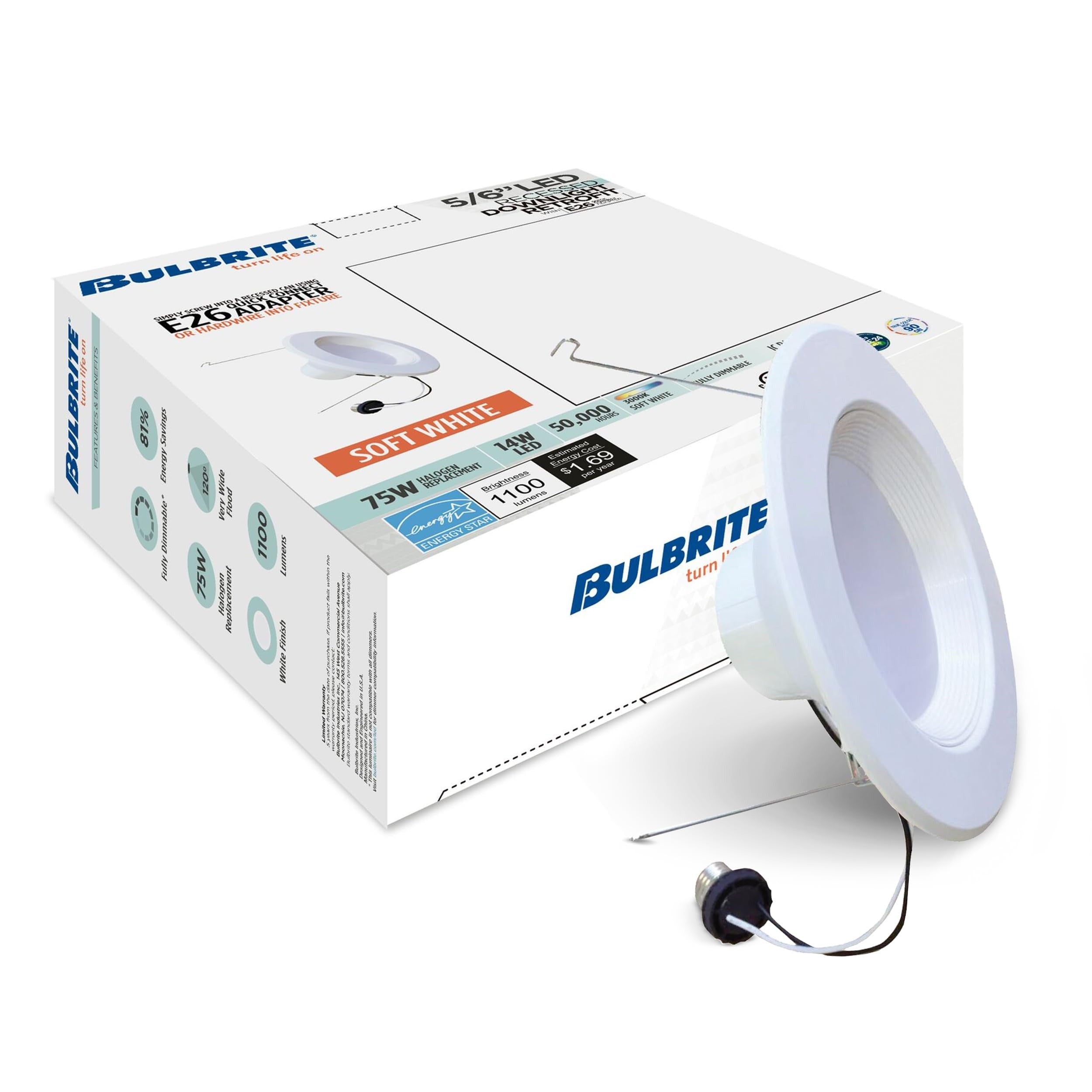

The BULBRITE 773166 is a 14-watt LED recessed downlight designed for 5-inch and 6-inch recessed cans in residential ceilings. It operates on 120 volts and produces a 3000K soft white light output through a glass diffuser with a white baffle trim finish. Installation is flexible: the unit includes an E26 Quick Connect Adapter that allows it to be screwed directly into an existing recessed can socket without hardwiring, though hardwire installation is also supported. The 120-degree beam angle delivers wide flood coverage, and the fixture is fully dimmable. It is sized at 7.24 inches in diameter and 2.76 inches in depth.

This downlight is suited for retrofit installations in residential recessed lighting applications, including living rooms, kitchens, hallways, and dining areas. It is designed to drop into existing 5-inch or 6-inch recessed housings, making it a straightforward upgrade from older halogen or incandescent recessed fixtures. The E26 Quick Connect Adapter simplifies the swap by eliminating the need to access junction boxes in most standard can configurations. Electricians and knowledgeable DIYers handling residential lighting retrofits are the primary installers.

Key Features

• 14-watt LED replaces a 75-watt halogen bulb, delivering approximately 81 percent energy savings
• 3000K color temperature produces a soft white light output
• 120-degree beam angle provides wide flood coverage

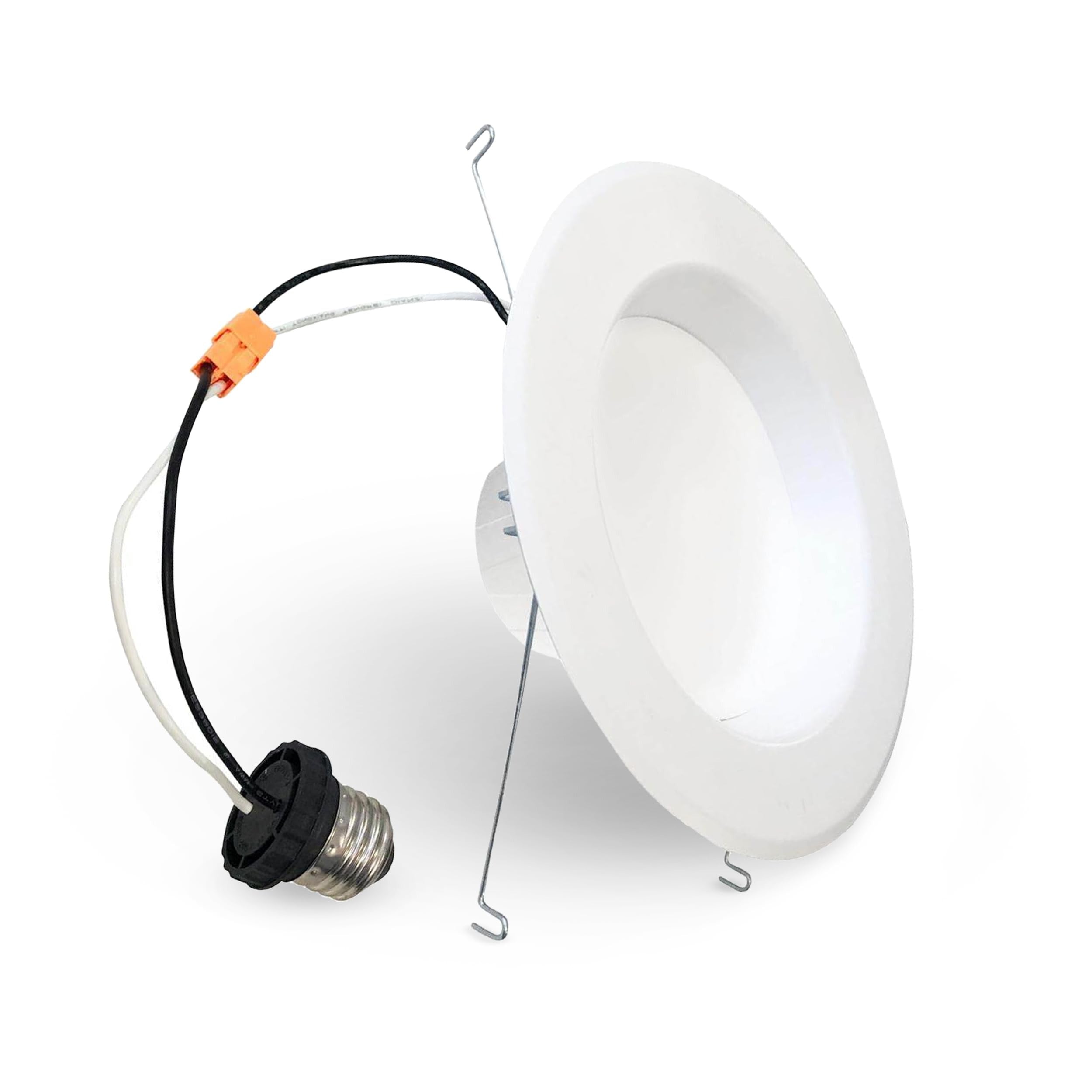

• E26 Quick Connect Adapter supports both socket-mount and hardwire installation
• White baffle trim finish reduces glare at the aperture
• Rated for 50,000 hours of lamp life
• Compatible with all dimmer types

Compatibility

Designed as a retrofit replacement for standard 5-inch and 6-inch recessed can fixtures. The E26 Quick Connect Adapter is compatible with standard medium-base recessed can sockets operating at 120 volts.

Installation Notes

Power down the circuit at the breaker before beginning any recessed fixture work. When using the E26 Quick Connect Adapter method, ensure the existing recessed can socket is rated for medium-base (E26) lamps and is free of damage before installation. If hardwiring directly, work must comply with applicable NEC requirements and local electrical codes. Verify dimmer compatibility with the installed dimmer model before completing the installation.
