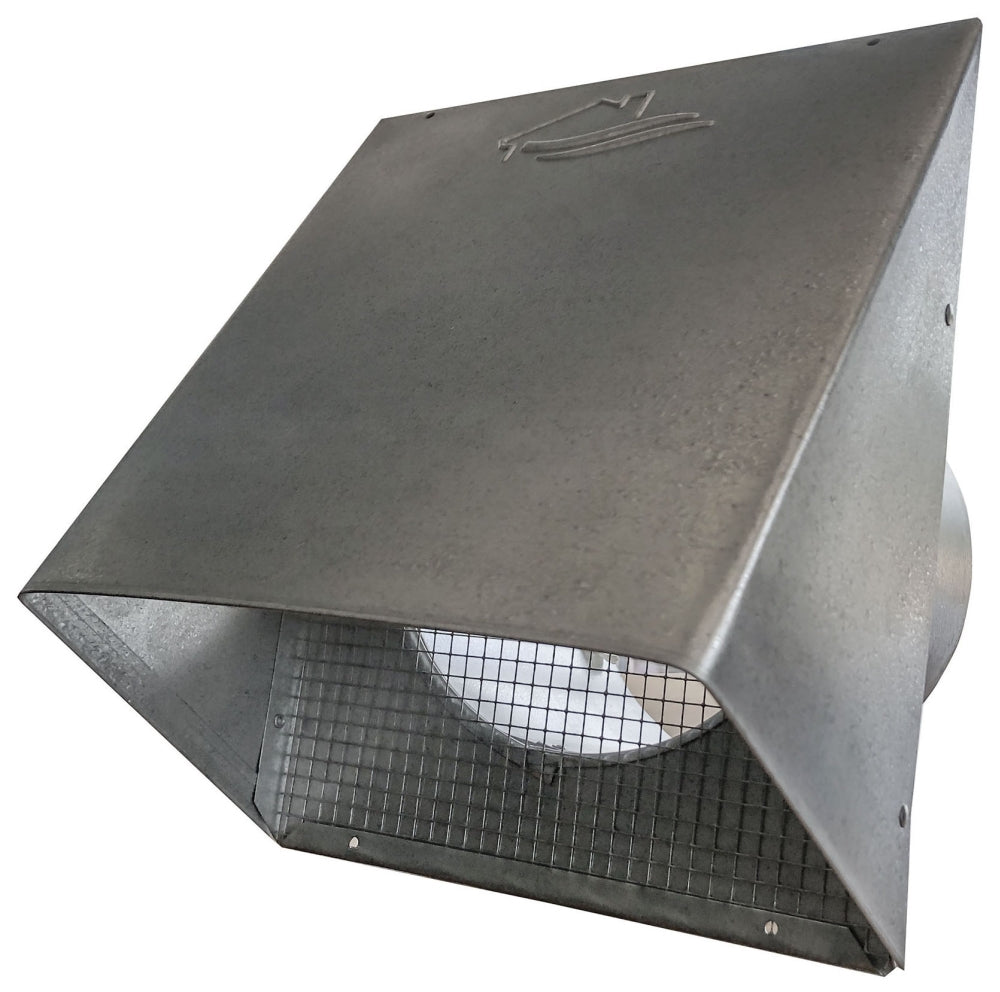

Builders Best 111094 Fresh Air Intake Vent Hood 8 Inch

Product Description

The BUILDERS BEST 111094 is a heavy-duty, wide-mouth fresh air intake vent hood designed for wall-mount installation on residential and light commercial ventilation systems. Constructed from 26-gauge mill galvanized steel, this vent hood delivers reliable corrosion resistance in exterior applications. The unit ships with a 1/4 inch x 1/4 inch removable tail screen that blocks pests and debris from entering the duct system. At 8 inches in diameter, it is sized for common fresh air intake ducting found in HVAC and combustion air supply setups. HVAC technicians and sheet metal contractors are the primary installers of this component.

This vent hood is suited for fresh air intake applications on exterior walls where a wide-mouth profile is required to minimize intake velocity and reduce pressure drop. The wide-mouth wall design makes it a practical choice for combustion air intakes, makeup air systems, and general ventilation in both new construction and retrofit projects. The removable screen allows for periodic cleaning and inspection without removing the entire hood from the wall.

Key Features

• 8 inch diameter opening sized for standard fresh air intake ductwork
• 26-gauge mill galvanized steel construction for exterior corrosion resistance
• Wide-mouth, heavy-duty wall vent hood design reduces intake air velocity
• Includes 1/4 inch x 1/4 inch removable screen to block pests and debris
• Tail length of 11 inches for proper wall penetration depth
• Bulk packaging suitable for contractor purchase

Compatibility

Designed as an OEM-style replacement and new-installation wall vent hood for 8 inch diameter fresh air intake duct systems in residential and light commercial HVAC and combustion air applications. Part of the BUILDERS BEST GWM604 series.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the associated air handling or combustion equipment before cutting the wall penetration or connecting ductwork. Follow local building codes and IFGC requirements when this hood serves a combustion air intake. Seal the perimeter of the hood flange to the exterior wall surface with an appropriate weatherproof sealant to prevent moisture intrusion.

Technical Specifications

• Size: 8 inches diameter
• Tail Length: 11 inches
• Material: Mill Galvanized Steel
• Material Thickness: 26 Gauge
• Type: Wall, Wide Mouth, Heavy Duty
• Screen: 1/4 inch x 1/4 inch removable
• Series: GWM604
• Packaging: Bulk

Standard Information

• Brand: BUILDERS BEST
• Manufacturer Part Number: 111094
