Builders Best 110759 Metalflex V350-U Uncompressed Air Duct 5 inch 8 foot

Product Description

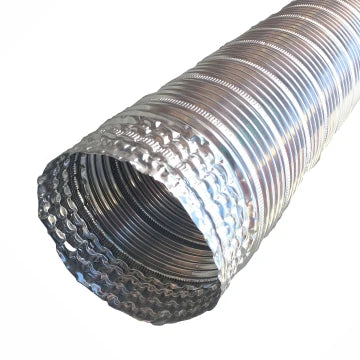

The BUILDERS BEST 110759 Metalflex V350-U is an uncompressed aluminum alloy air duct, 5 inches in diameter and 8 feet long, designed for HVAC systems. It features 30-degree strength angles between ribs and a mechanically locked, leak-proof "Acme" lock. This UL 181 certified Class 0 air duct, compliant with NFPA 90a and 90b, ensures efficient airflow by preventing flattening on bends. It operates within a temperature range of -100°F to +430°F.

• Features better stretching and bending characteristics for easy installation.
• Designed to eliminate flattening on the outside radius of bends, preventing restricted airflow.
• Constructed from aluminum alloy with a continuous knurled leak-proof "Acme" lock.

Product Highlights

UL 181 certified Class 0 uncompressed aluminum alloy air duct with factory crimped ends for smooth connections.

Product Information

Standard Information

• Brand: BUILDERS BEST
• Manufacturer Part Number: 110759

Technical Specifications

• Model: V350-U
• Diameter: 5"
• Length: 8'
• Listing: UL 181
• Product Type: Uncompressed Duct
• Insulation: Uninsulated
• Ends: Factory crimp on one end, other end plain
• Certification: UL 181 label Class 0 Air Duct in accordance with NFPA 90a and 90b
• Recommended Operating Pressure: 12" w.g. (for 3"-10" diameters)
• Maximum Velocity: 5,000 FPM
• Operating Temperature Range: -100°F to +430°F
• Flame Speed: 0
• Smoke Developed: 0
