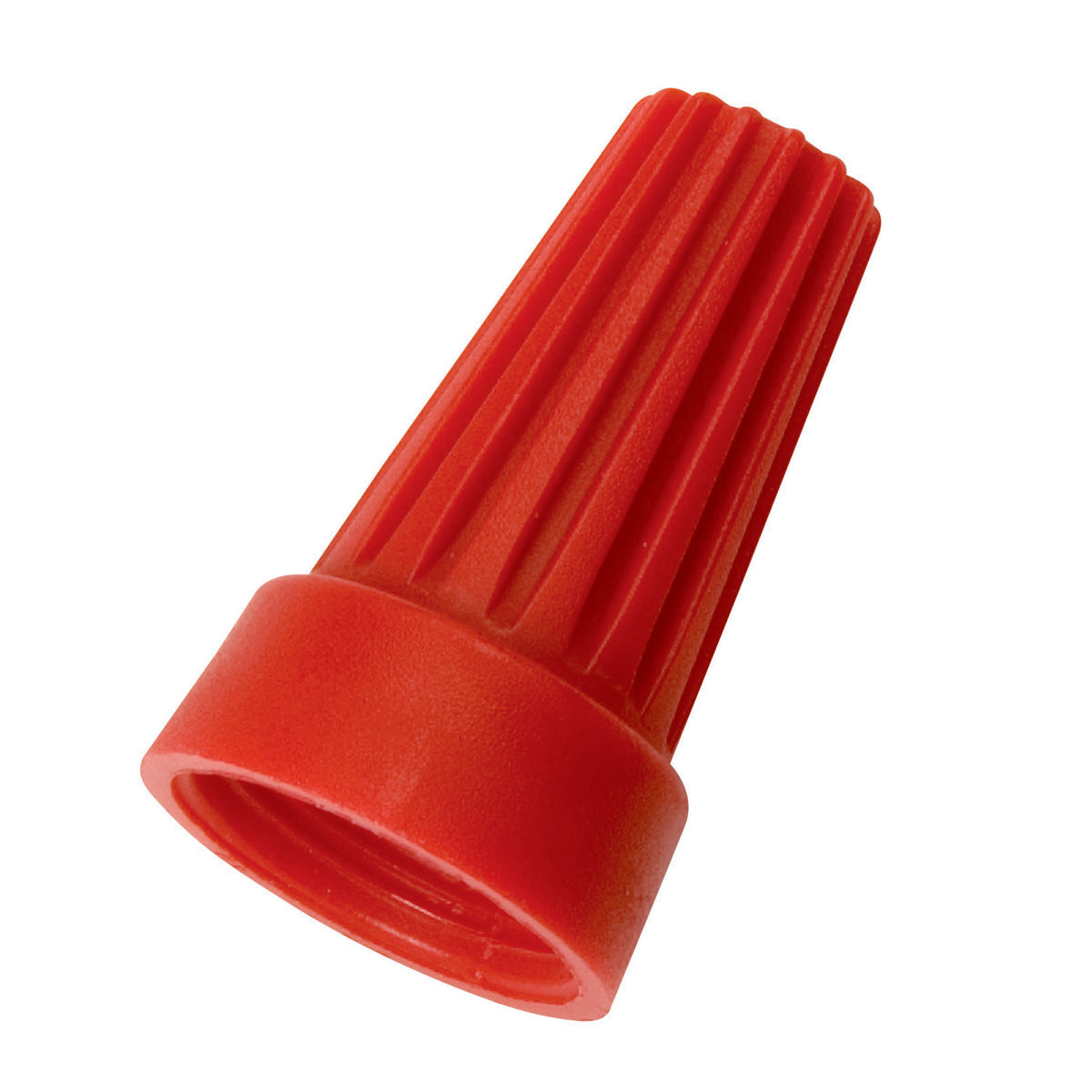

Buchanan WT6-1 WireTwist Wire Connector 18 - 8 AWG

Product Description

The BUCHANAN WT6-1 WireTwist Wire Connector accommodates conductor ranges from 18 - 8 AWG, 2/14 AWG Min, 4/12 AWG MAX. These color-coded connectors are designed for various solid or stranded wire combinations. The fixed, live-action, square-wire spring threads itself, drawing wires into the connector for a secure pressure grip. Its thermoplastic shell withstands extreme environments.

• Accommodates conductor ranges from 18 - 8 AWG, 2/14 AWG Min, 4/12 AWG MAX
• Fixed, square-wire spring threads itself creating a secure pressure grip
• UL 94V-2 flame-retardant shell rated at 105 degrees C (221 degrees F)

Product Highlights

WireTwist Wire Connectors offer an economical connector with comfort and performance. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection.

Product Information

Standard Information

• Brand: BUCHANAN
• Manufacturer Part Number: WT6-1
• Country of Origin: United States

Technical Specifications

• Catalog Number: WT6-1
• Brand: Buchanan
• Sub Brand: WireTwist
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 1 or more conductors
• Color: Red
• Conductor Range: 18 - 8 AWG, 2/14 AWG Min, 4/12 AWG MAX
• Material: Flame-retardant Polypropelene
• Number of Conductors: 1 to 5
• Special Features: Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Ribbed Cap Provides Positive Grip For Fast, Easy Installation; Fixed, Square-Wire Spring Threads Itself Creating A Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F); UL 486C Listed And CSA 22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT6
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• RoHS URL: https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
• UPC: 781789610085
• GTIN: 00781789610085
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Voltage Rating: 600 V
• Series: WT6
• Specifications: 1/2 in Solid, 7/16 in Stranded Wire Strip, 1 to 5 Conductors, Min 14 to 2 AWG , Max 12 to 4 AWG Combination Size
• Temperature Rating: 221 deg F
• Shell Style: Positive Grip
• Spring Type: Fixed/Square Wire
• Wire Size: 20 to 8 AWG
• Wire Type: Solid/Stranded
• Width: 0.62 in
• Height: 0.66 in
• Contact Material: Steel
• Maximum Conductors: 6.0
• Insulation Material: Polypropylene
• Wire Connector Style: Standard
• Maximum Single Wire Size: 8 AWG
• Maximum Wire Combination: (4) 12 AWG
• Minimum Single Wire Size: 20 AWG
• Minimum Wire Combination: (2) 14 AWG
• UL 94 Flammability Rating: V-2
• Maximum Operating Temperature: 221 Degrees F
• Features: Twist-On Wire Connectors, Color Red, For Conductor Material Coppe
