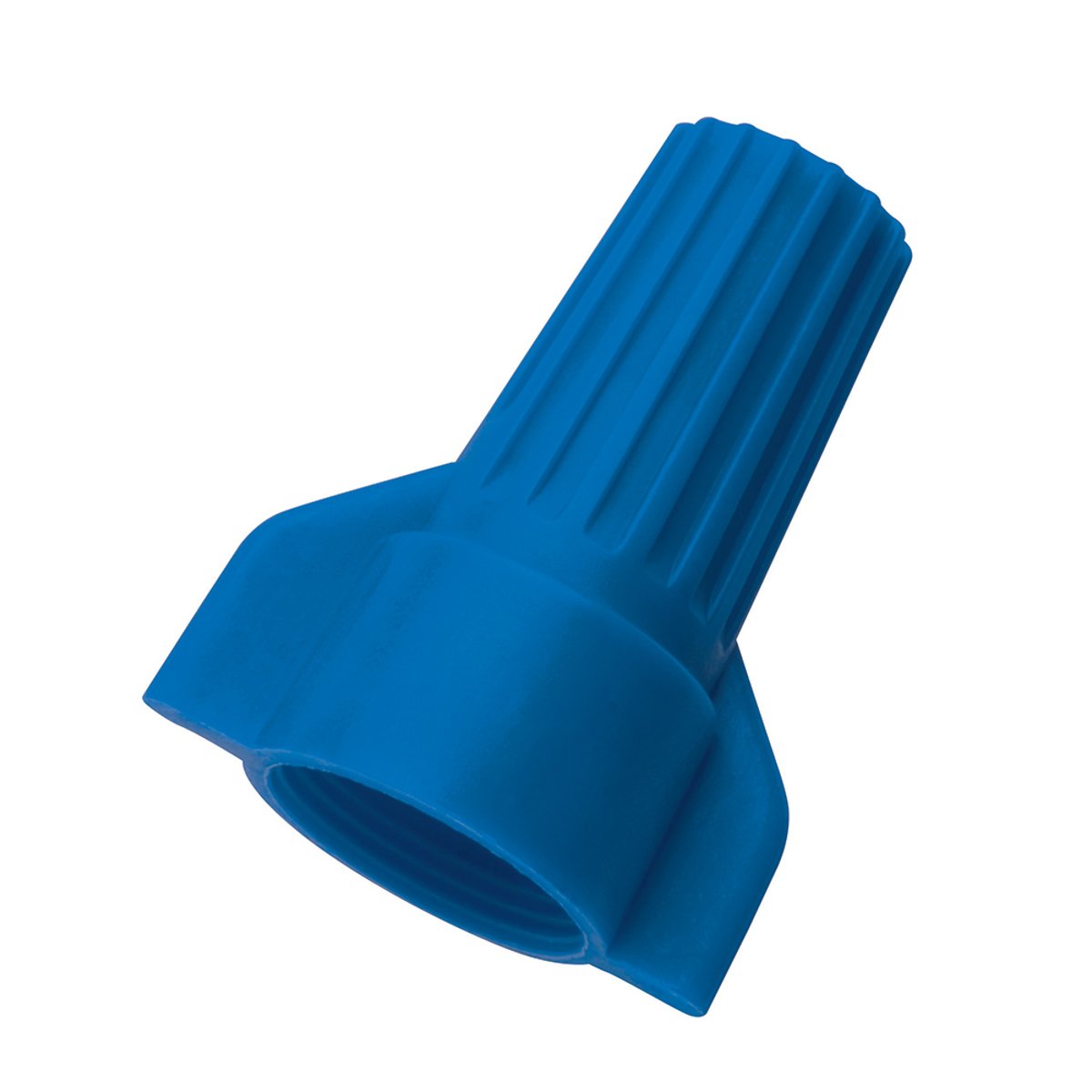

Buchanan WT54-1 WingTwist Wire Connector 600 V 14 - 6 AWG

Product Description

The Buchanan WT54-1 WingTwist Wire Connector is designed for reliable connections for wire sizes ranging from 14 AWG to 6 AWG. This connector features a unique contoured wing design that allows for maximum torque during installation, ensuring secure connections every time. Made from flame-retardant polypropylene, it can withstand harsh environmental conditions, making it suitable for various electrical applications.

• Conductor range: 14 AWG to 6 AWG
• Voltage rating: 600 V
• Number of conductors: Accommodates one to six conductors

Product Highlights

This wire connector is ideal for insulating and joining multiple conductors. The contoured design allows for easy grip and installation.

Product Information

Standard Information

• Brand: Buchanan
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: WT54-1
• Material: Flame-retardant polypropylene
• Color: Blue
• Environmental Conditions: Tough, rated at 105 degrees Celsius
• Special Features: Maximum torque with minimum effort, deep skirt for dielectric protection
• Application: Insulating or joining one or more conductors
• Voltage Rating: 600 V
