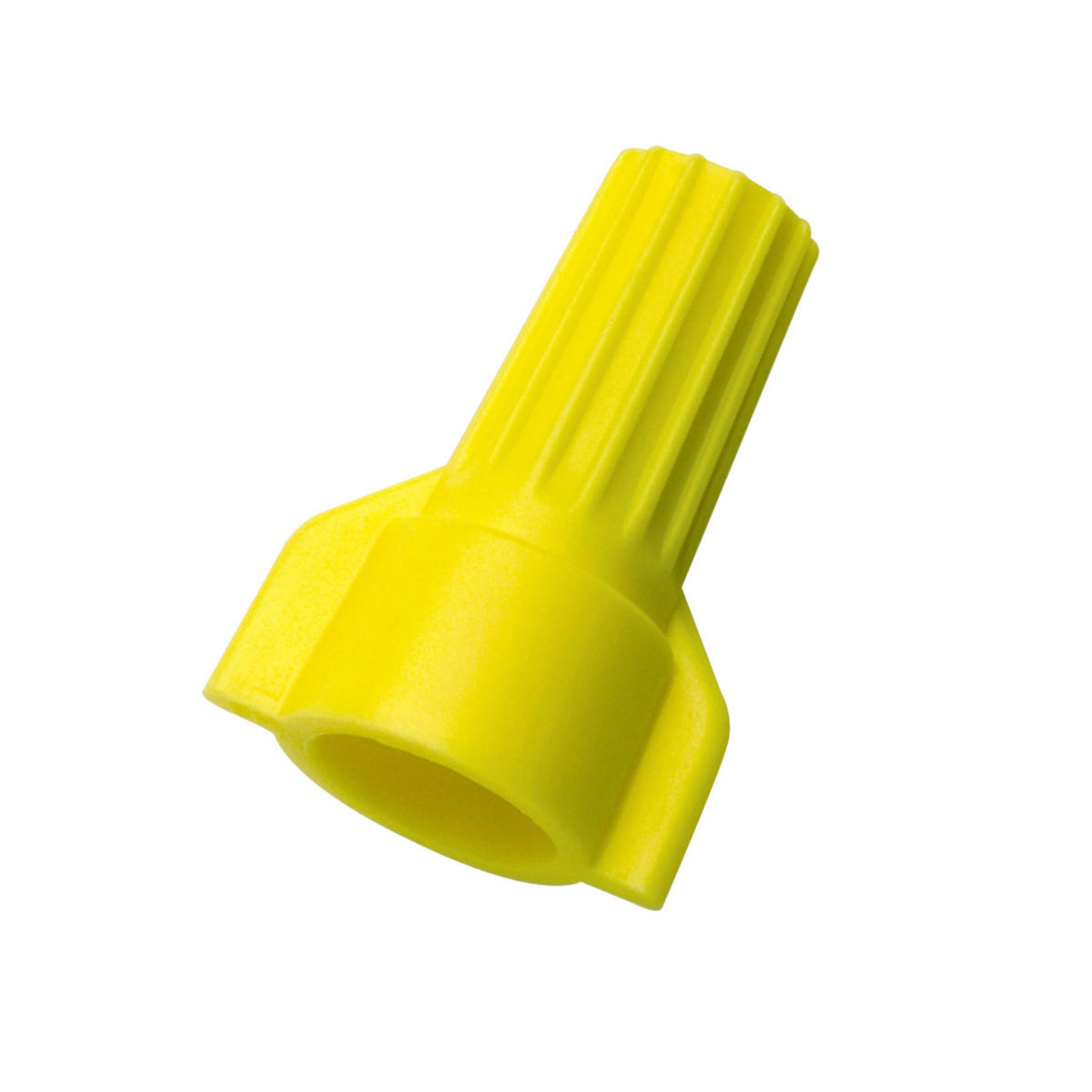

Buchanan WT51-1 Wire Connector WingTwist Conductor Range 18 - 10 AWG

Product Description

The Buchanan WingTwist Wire Connector, model WT51-1, is designed for effective electrical connections. This wire connector allows for a conductor range from eighteen to ten AWG. The contoured wing design enhances torque during installations, ideal for various electrical applications.

• Secure connections with flexible shell and square-wire spring.
• Flame-retardant polypropylene withstands environmental challenges.
• Maximum dielectric protection from flash-over incidents.

Product Highlights

The WingTwist Wire Connector blends performance and value, making it suitable for professionals working on a variety of electrical projects.

Product Information

Standard Information

• Brand: Buchanan
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: WT51-1
• Color: Yellow
• Conductor Range: 18 - 10 AWG, 2/18 AWG Min, 3/12 AWG Max
• Material: Flame-retardant Polypropylene
• Number of Conductors: 1 to 6
• Voltage Rating: 600 V
• Environmental Conditions: UL 94V-2 Flame-Retardant Shell Rated At 105 Deg C (221 F)
• Special Features: Unique wing design provides maximum torque; deep skirt for dielectric protection
