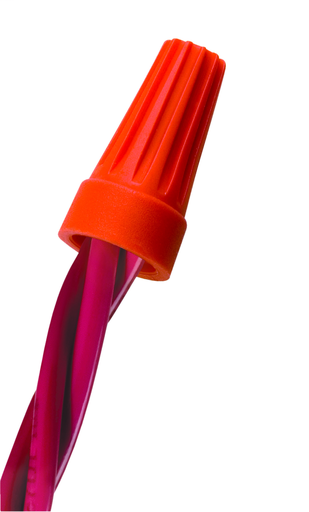

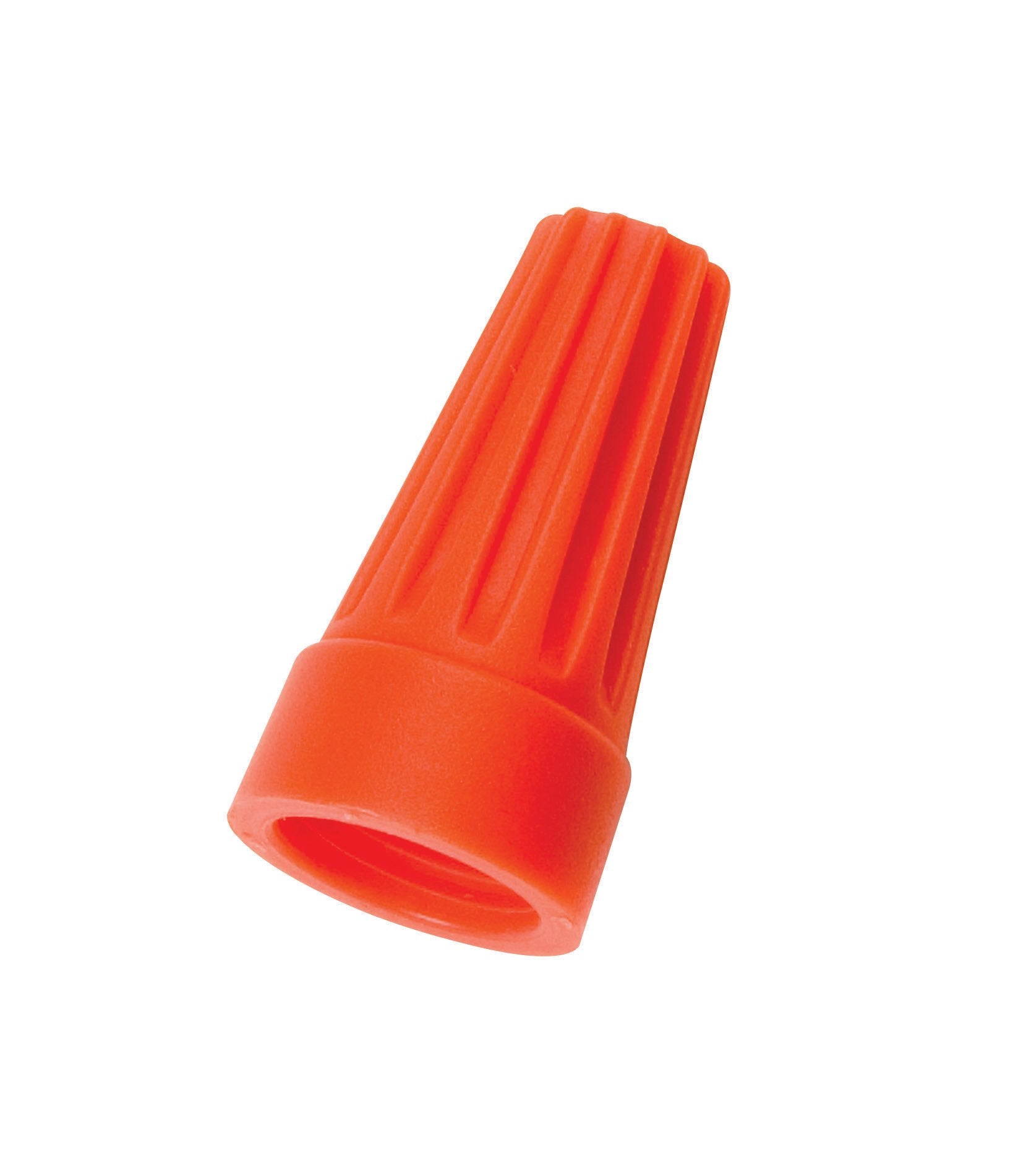

Buchanan WT3-B Wire Connector WireTwist Conductor Range: 22 - 14 AWG 2/18 AWG Min 2/14 AWG MAX

Product Description

Buchanan WT3-B Wire Connector is designed for reliable electrical connections. This connector accommodates a conductor range of twenty-two to fourteen American Wire Gauge (AWG). The five color-coded connectors are engineered for numerous solid and stranded wire combinations. The square-wire spring mechanism secures the connection, ensuring a stable grip.

• Conductor range: 22 - 14 AWG
• Material: Flame-retardant Polypropylene
• Voltage rating: 600 V

Product Highlights

This wire connector is ideal for insulating or joining multiple conductors. The deep skirt design provides excellent dielectric protection and guards against potential flashover.

Product Information

Standard Information

• Catalog Number: WT3-B
• Manufacturer: Ideal Industries

Technical Specifications

• Brand: Buchanan
• Color: Orange
• Conductor Size: 14 AWG
• Environmental Conditions: UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Special Features: Five color-coded models cover common construction wire ranges; Ribbed cap provides positive grip for fast and easy installation; Square-wire spring ensures a secure connection; Deep skirt protects against flashover and turned-back strands; Rated for 1000 V maximum in fixtures and signs.
