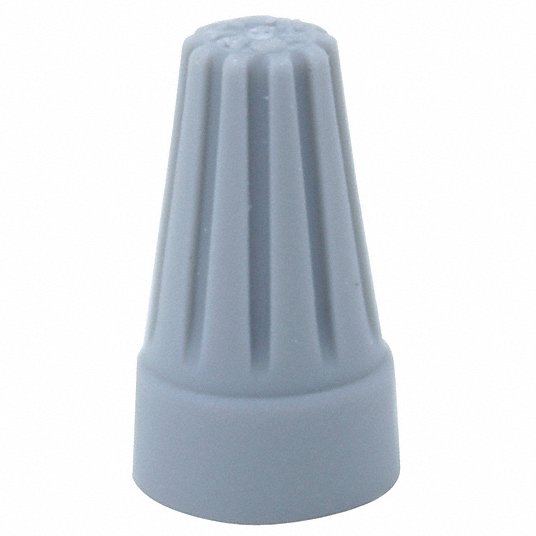

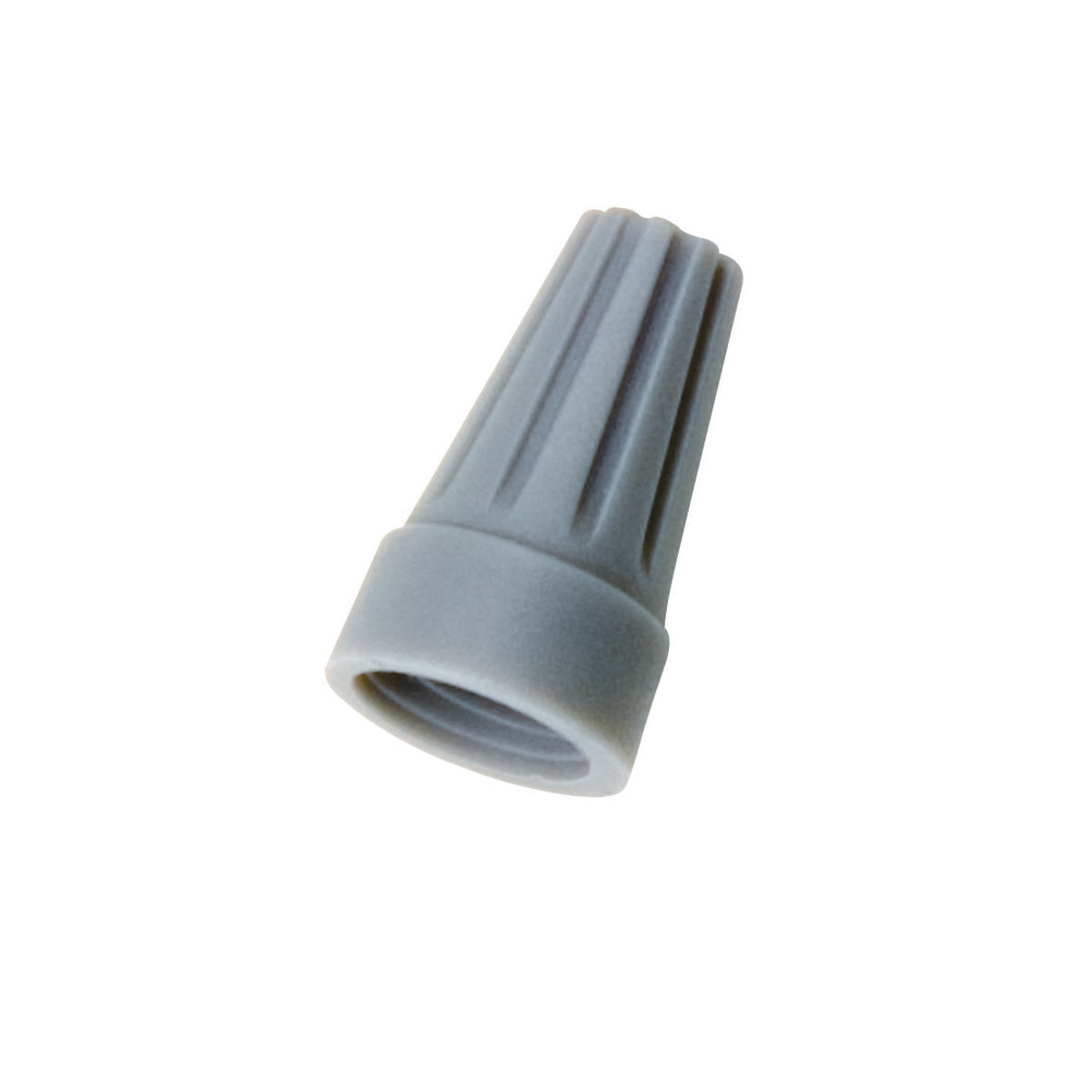

Buchanan WT1-1 Wiretwist Wire Connector 22 - 14 AWG

Product Description

The BUCHANAN WT1-1 WireTwist Wire Connector offers an economical solution for wire connections, delivering both comfort and performance. The fixed, live-action, square-wire spring threads itself, drawing wires securely into the connector. Its rugged, thermoplastic shell is designed to withstand extreme conditions. Ideal for insulating or joining one or more conductors.

• Accommodates hundreds of different solid or stranded wire combinations.
• Features a ribbed cap that provides a positive grip for fast, easy installation.
• Deep, wide-throated skirt protects against flash-over and turned-back strands.

Product Highlights

This wire connector features a flame-retardant shell, a square-wire spring, and a deep skirt for dielectric protection. It is UL 486C Listed and CSA 22.2 #188 Certified.

Product Information

Standard Information

• Brand: BUCHANAN
• Manufacturer Part Number: WT1-1
• Country of Origin: United States

Technical Specifications

• Catalog Number: WT1-1
• Brand: BUCHANAN
• Sub Brand: WireTwist
• Country of Origin: United States
• Made in USA: Yes
• Application: Insulating or Joining 1 or more conductors
• Color: Gray
• Conductor Range: 22 - 14 AWG, 2/22 AWG Stranded Min, 2/16 AWG Max
• Material: Flame-retardant Polypropelene
• Number of Conductors: 1 to 5
• Special Features: Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Ribbed Cap Provides Positive Grip For Fast, Easy Installation; Fixed, Square-Wire Spring Threads Itself Creating A Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F); UL 486C Listed And CSA 22.2 #188 Certified; Model Number: WT1
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• Voltage Rating: 300 V
• Series: WT1
• Temperature Rating: 221 deg F
• Shell Style: Positive Grip
• Spring Type: Fixed/Square Wire
• Wire Size: 22 to 14 AWG
• Wire Type: Stranded
• Maximum Wire Combination Size: (2) #16
• Minimum Wire Combination Size: (3) #22
• Flammability Rating: V-2
• For Wire Material: Copper
• Insulation Material: Polypropylene
• Maximum Number of Conductors: 5
• Maximum Single Wire Size: 14 AWG
• Maximum Temperature: 221 °F
• Maximum Voltage: 300 V
• Pack Qty: 100
