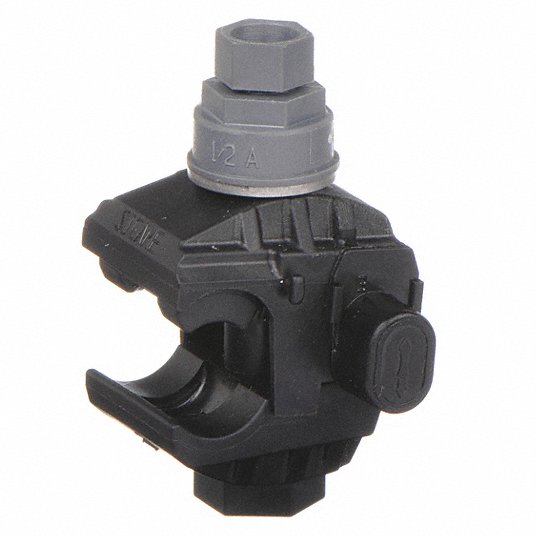

Buchanan BTC2/0-14 Insulation-Piercing Tap Connector 600 VAC

Product Description

Buchanan BTC2/0-14 is an insulation-piercing tap connector designed for reliable and efficient electrical connections. This connector works with a range of conductor sizes, allowing main conductors from four to two zero AWG and tap conductors from fourteen to ten AWG. It is suitable for both copper solid/stranded and aluminum stranded conductors. The installation process requires only a standard box or socket wrench.

• Self-insulating and weather-proof design
• Breakaway torque nut for secure connections
• Compatible with energized systems without causing power interruptions

Product Highlights

Buchanan's B-TAP connectors offer dependable performance in various applications, including temporary circuits, street lighting, and maintenance tasks.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Brand: Buchanan

Technical Specifications

• Conductor Size: 4 to 2/0 AWG Main, 14 to 10 AWG Copper Solid/Stranded Tap, 14 to 10 AWG Aluminum Stranded
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Torque Rating: 2.2 in-lb
• Type: Insulation-Piercing
• Dimensions: 1.8 in W x 2.2 in D x 3.1 in H
• Specifications: 1-Bolt, 1/2 in Socket
• Conductor Type: Solid/Stranded
