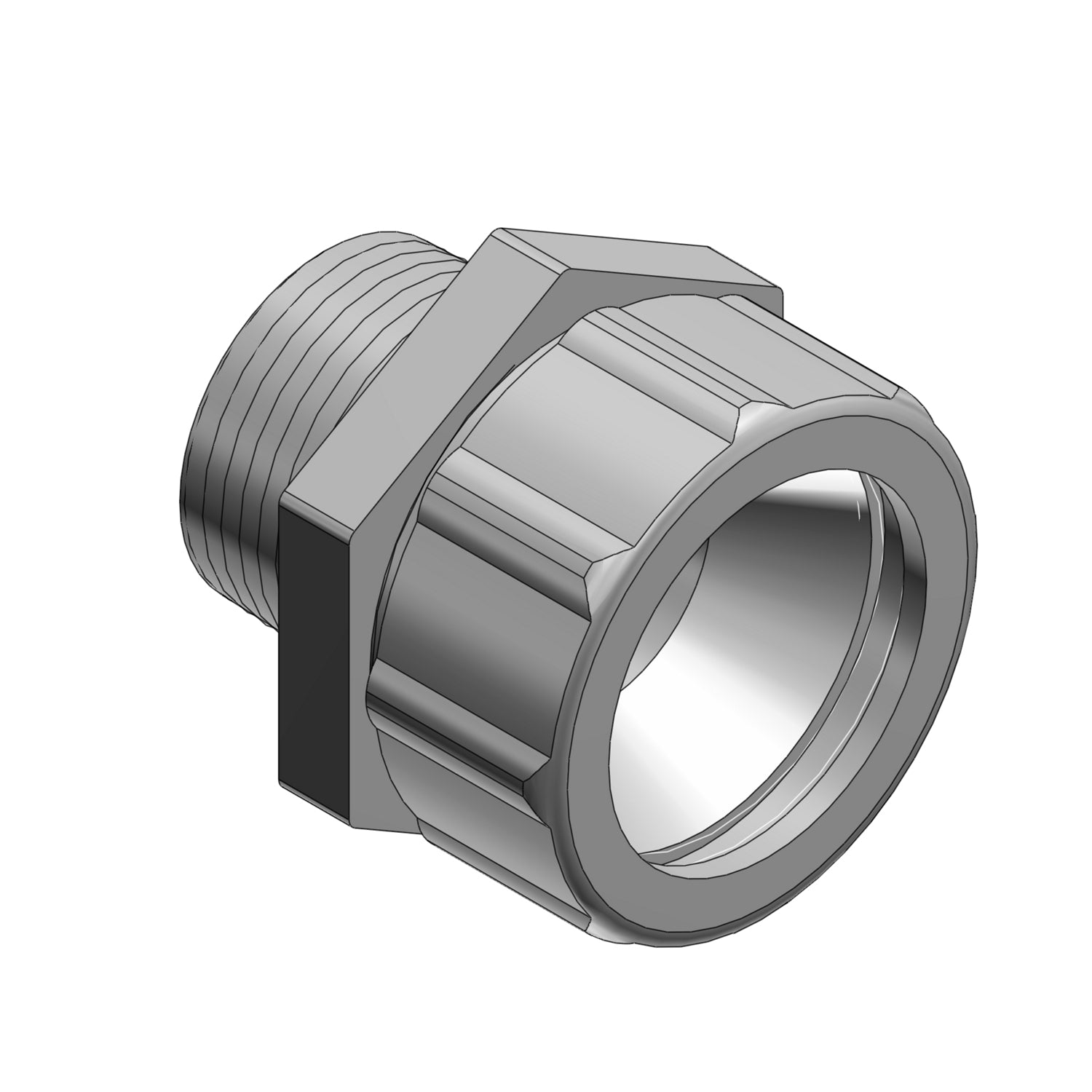

BTR NONSTOCKS-GENERIC TNB-2587 Ranger Liquidtight Strain Relief Cord Connector

Product Description

The BTR NONSTOCKS-GENERIC TNB-2587 Ranger Liquidtight Strain Relief Cord Connector is designed for various applications. It offers a secure, liquid-tight connection for cords, effectively preventing cable damage while providing strain relief.

• Provides liquidtight strain relief for cords.
• Constructed from malleable iron with a zinc-plated finish.
• Suitable for use in dry, wet, and hazardous locations.

Product Highlights

This connector features a neoprene bushing that ensures a liquid-tight seal, applying even pressure against the cable. It is reliable in diverse environments, making it an excellent choice for trade professionals.

Product Information

Standard Information

• Country of Origin: CA
• UPC: 786210025872

Technical Specifications

• Trade Size: 2-1/2 inches
• Cable Openings: 2.35 to 2.565 inches
• Cable Type: S/SO
• Connection Type: Thread
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
• Finish: Zinc Plated
• Temperature Rating: 105 degrees Celsius
• Dimensions: 4-1/4 inches Diameter x 3-15/16 inches Length
• Thread Size: 2-1/2 inches
• Minimum Throat Diameter: 2-5/32 inches
