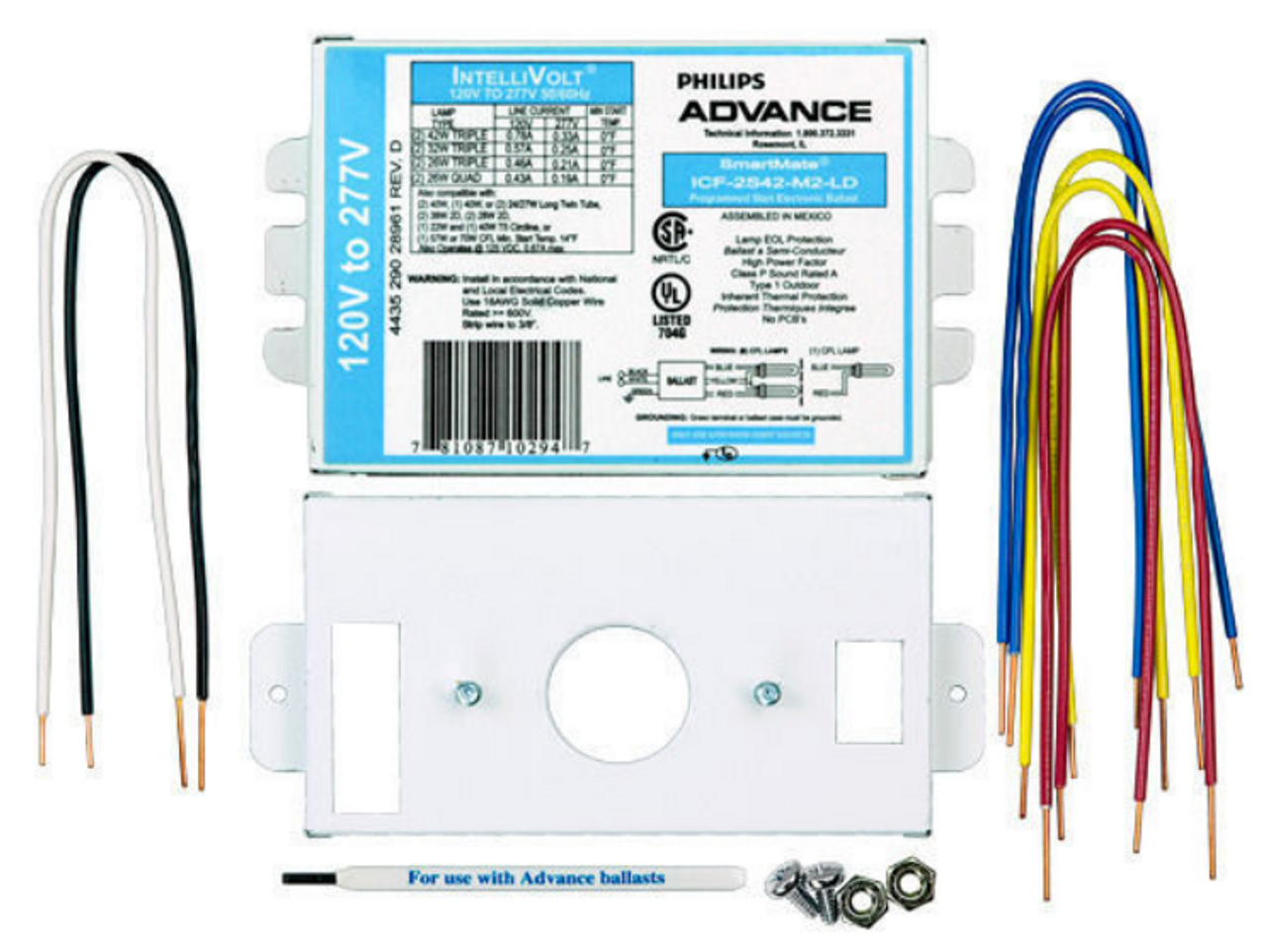

BTR NONSTOCKS-GENERIC ICF-2S-42M2LDK Electronic Compact Fluorescent Ballast

Product Description

The BTR NONSTOCKS-GENERIC ICF-2S-42M2LDK is an electronic compact fluorescent ballast designed for use with two forty-two watt CFL lamps. This ballast functions with input voltages from one hundred twenty to two hundred seventy-seven VAC, ensuring versatility in various settings. Constructed with a sturdy metal case, it features Intellivolt technology, which allows it to adapt to different voltage inputs seamlessly. The ballast also includes dual-entry color-coded connectors to facilitate easy and organized wiring, making it user-friendly for installation.

• Operates two forty-two watt CFL lamps
• Supports input voltage from one hundred twenty to two hundred seventy-seven VAC
• Programmed start type for consistent performance

Product Highlights

This product is ideal for various applications, including lobbies, hallways, conference rooms, and residential spaces, providing efficient and reliable lighting solutions. It is RoHS compliant, ensuring adherence to environmental regulations while delivering dependable performance in compatible systems.

Product Information

Standard Information

• Type: Compact Fluorescent Ballast Kit
• Lamp Type: CFTR42W/GX24Q

Technical Specifications

• Lamp Wattage: 42 Watt
• Number of Lamps: 2
• Input Voltage: 120 to 277 Volt AC
• Input Current: 0.33 to 0.78 Amp
• Input Power: 93 Watt
• Frequency Rating: 50/60 Hertz
• Power Factor: 0.98
• Ballast Factor: 0.97
• Maximum THD: 10 Percent
• Minimum Starting Temperature: -18 Deg C
