BTR NONSTOCKS-GENERIC 886/SC Eaton B-Line series Junction Box Type 1

Product Description

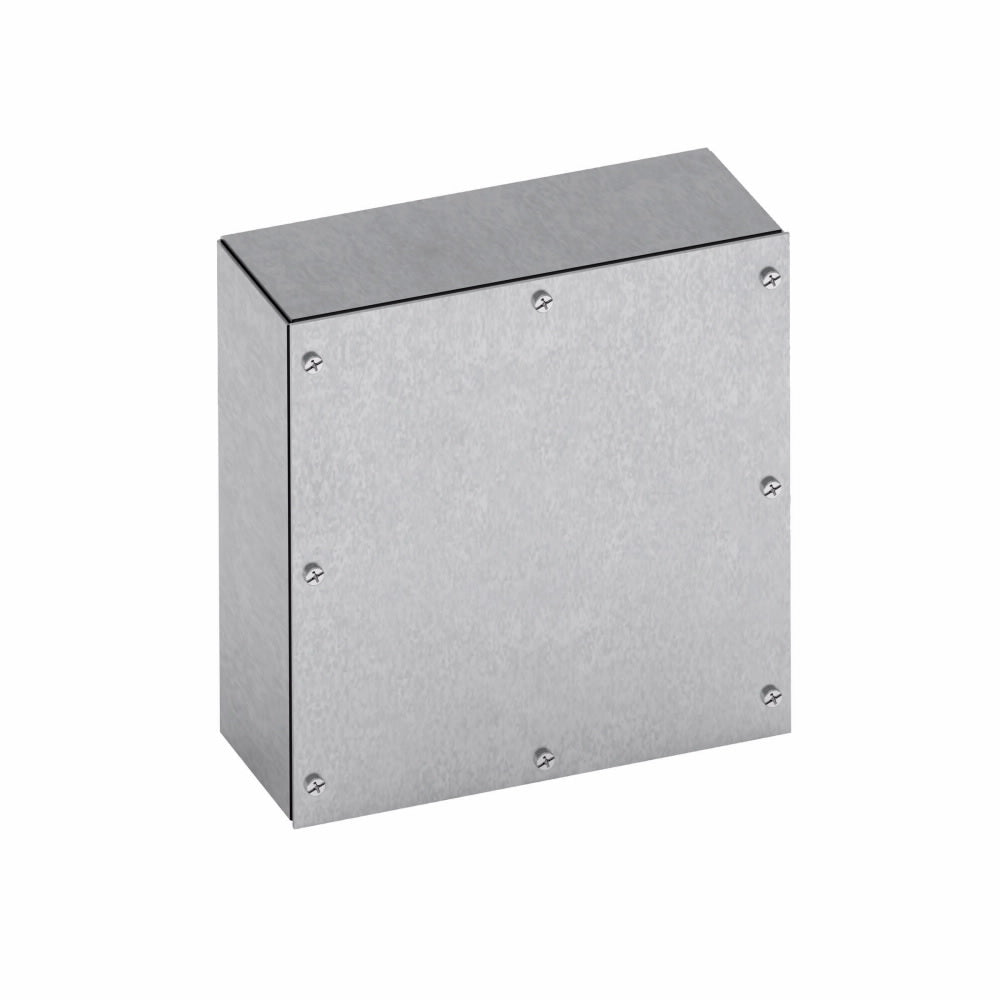

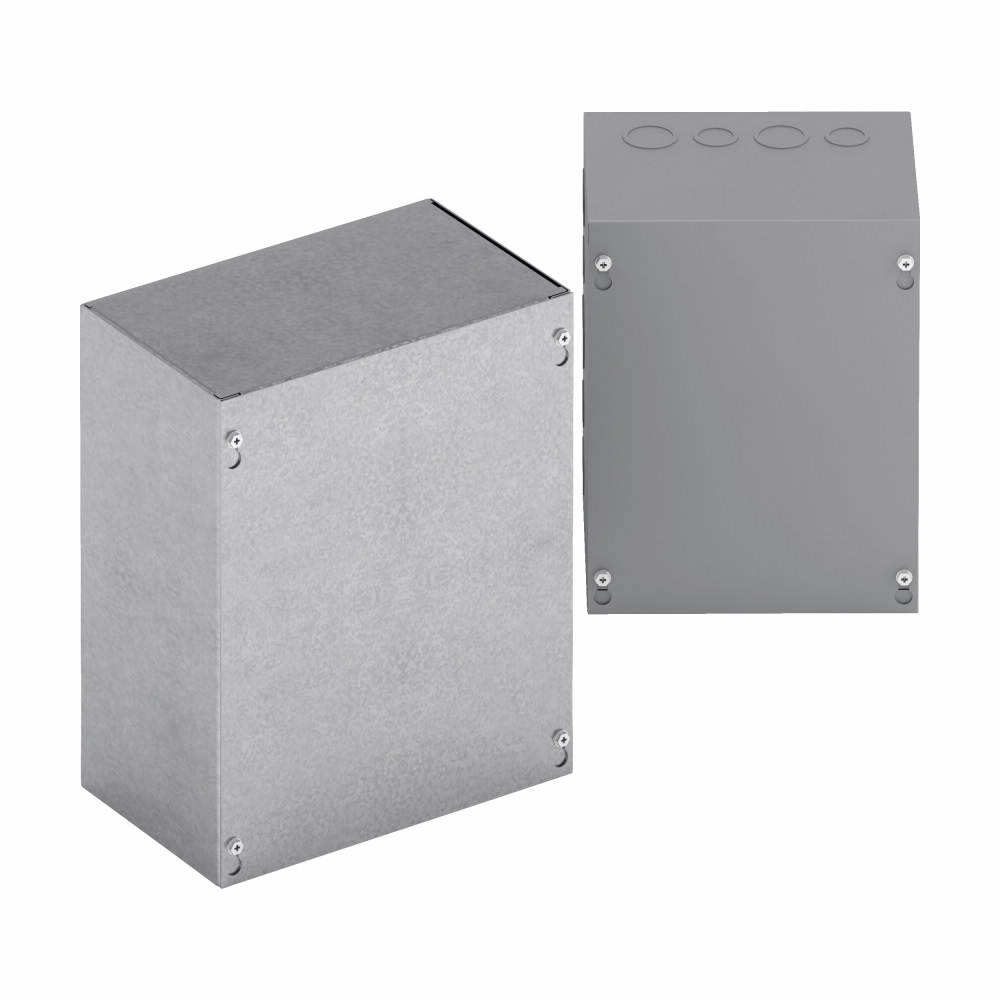

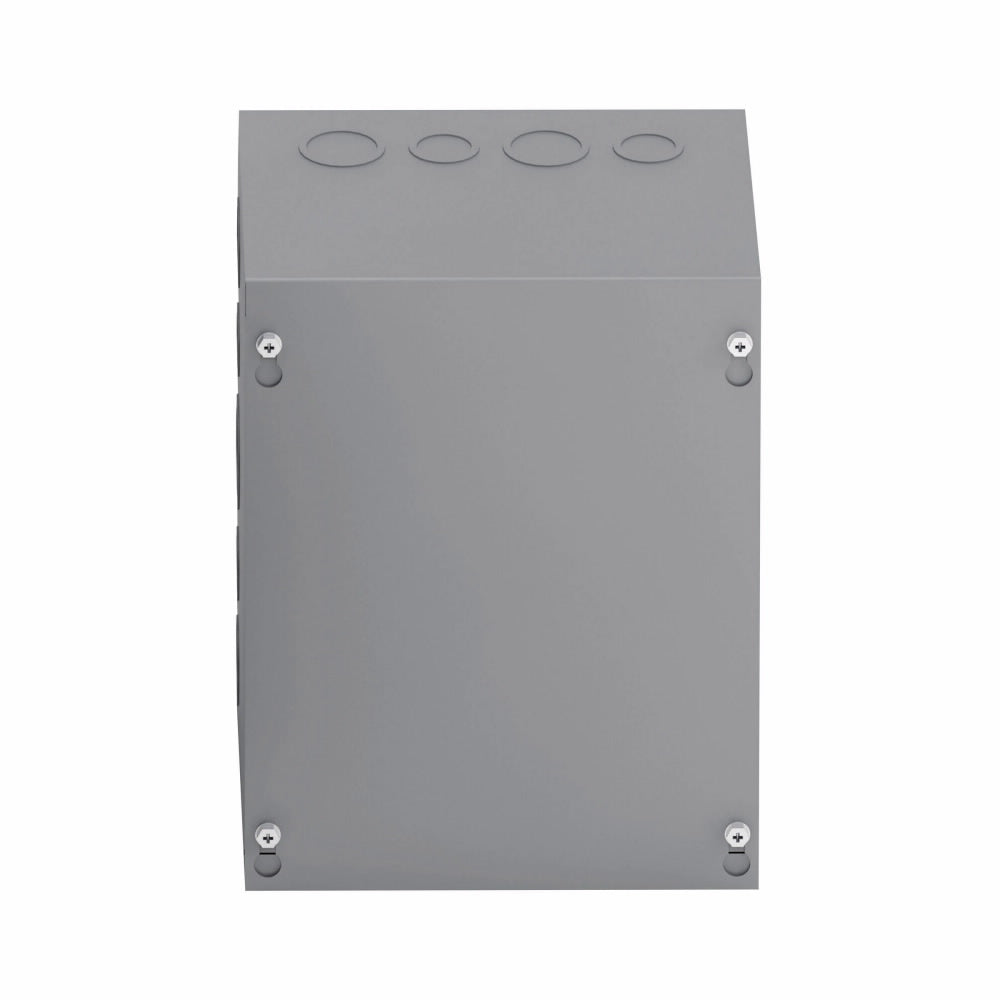

The BTR NONSTOCKS-GENERIC 886/SC is a Type 1 junction box from Eaton's B-Line series. This product is designed for surface mounting and includes a screw cover and a small single door. It features a carbon steel construction with a gray acrylic electrocoated finish, making it suitable for NEMA 1 environments. The junction box has knockouts on all sides, facilitating easy wiring connections and is commonly used as an electrical enclosure to protect electrical connections.

• NEMA 1 rated enclosure
• Constructed from carbon steel with gray acrylic electrocoated finish
• Includes knockouts on all sides for easy wiring

Product Highlights

This junction box is ideal for surface mounting electrical components and ensuring safe connections in various applications.

Product Information

Standard Information

• Country of Origin: US
• UPC: 782051222906

Technical Specifications

• Height: 8 inches
• Width: 8 inches
• Depth: 6 inches
• Material: Carbon Steel
• Finish: Acrylic Electro Coated
• Color: Gray
• NEMA Rating: NEMA 1
• Cover Type: Screw
• Mounting Type: Surface
• Knockouts: 4 side knockouts, 4 top/bottom knockouts
• Wall Thickness: 16 Gauge
