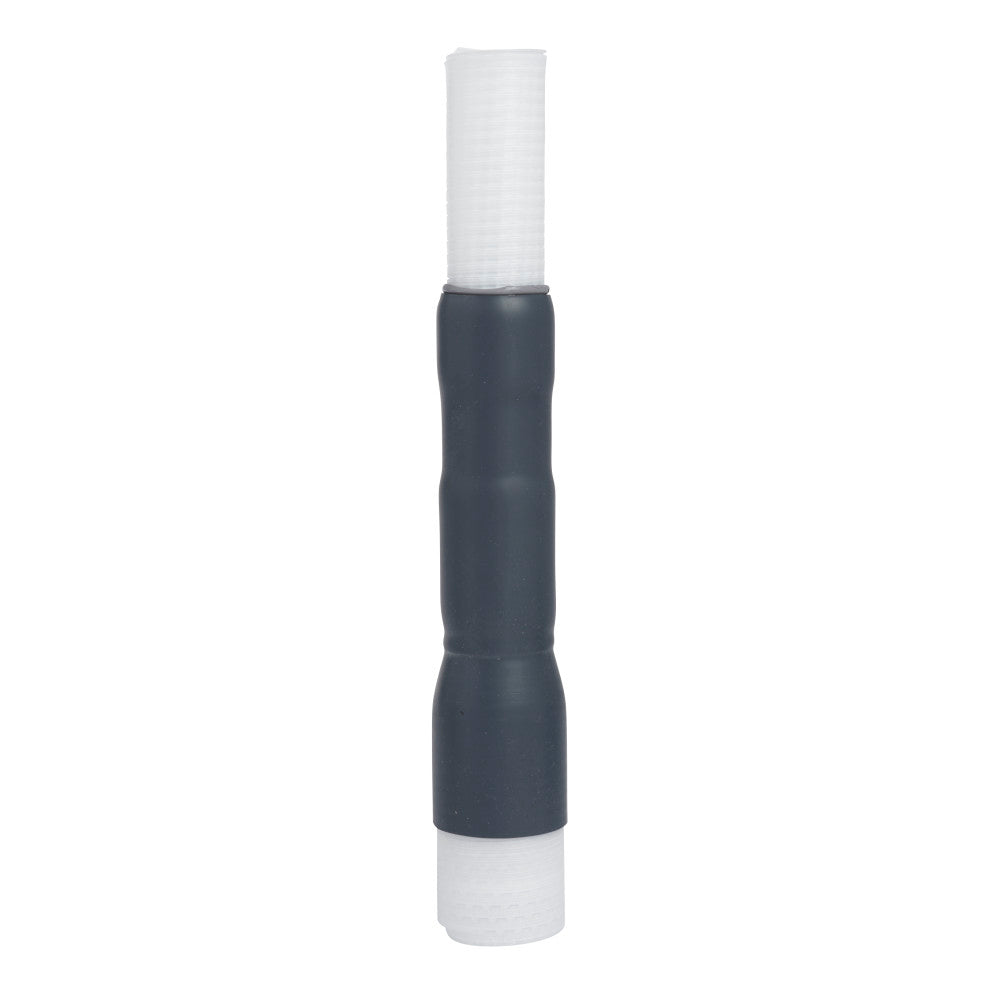

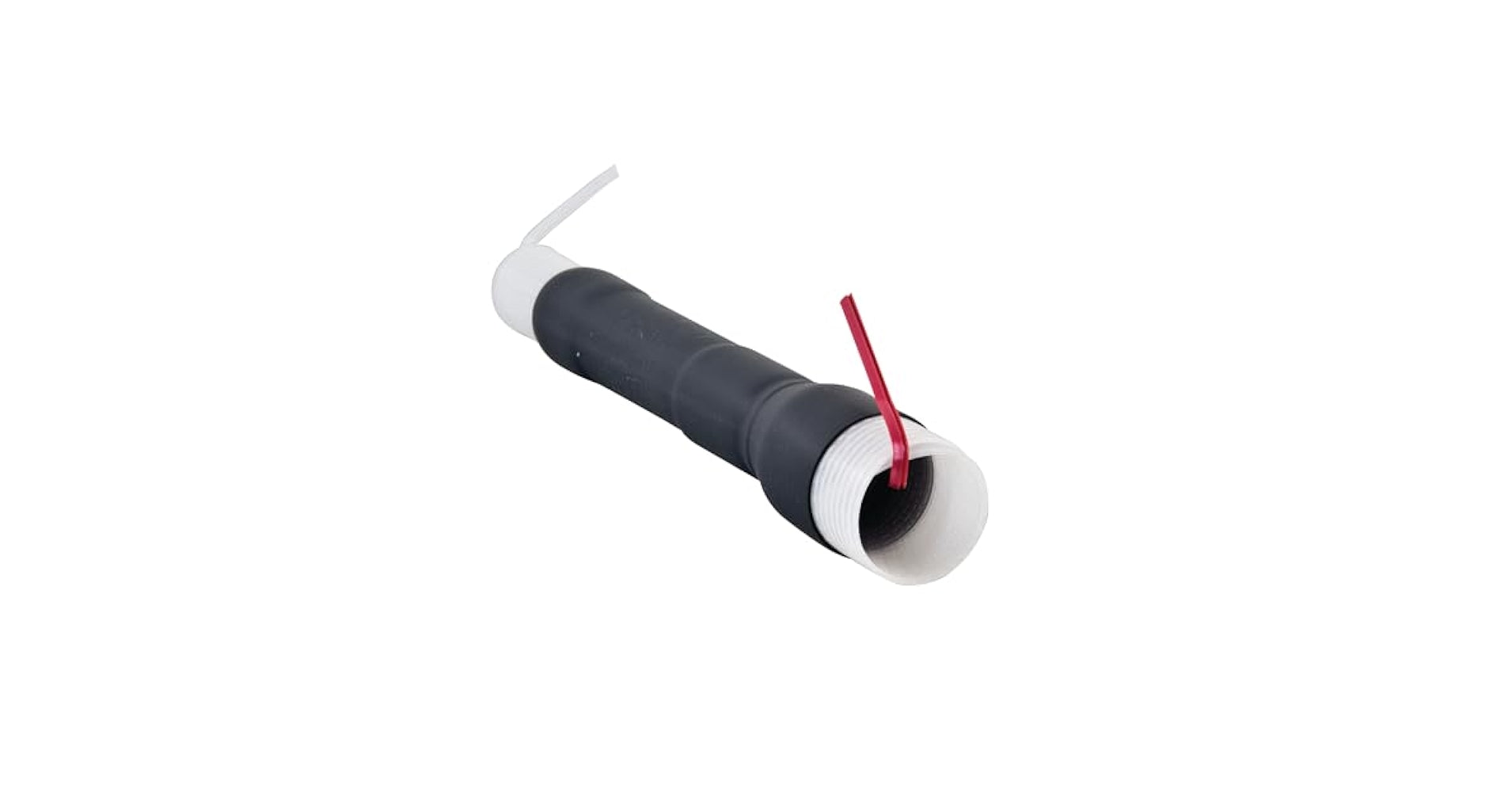

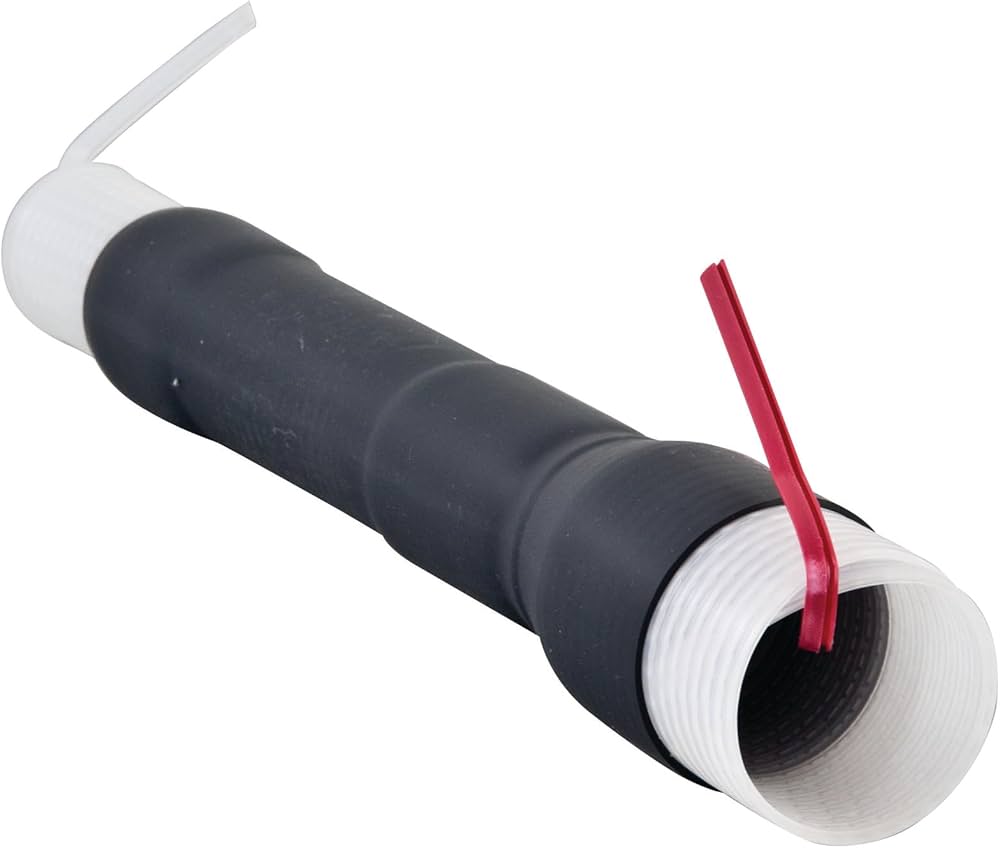

BTR NONSTOCKS-GENERIC 7625T-110-3-RJS Cold Shrink QT-III Termination Kit

Product Description

The BTR NONSTOCKS-GENERIC 7625T-110-3-RJS Cold Shrink QT-III 3/C Termination Kit is for medium voltage cable terminations. This kit is designed for use with or without internal ground wires, providing a reliable solution for various applications.

• Non-skirted, three-phase design ideal for medium voltage cables.
• Ensures a tight and void-free seal for tape shield, wire shield, and UniShield® power cables.
• Constructed from high dielectric constant materials for optimal performance.

Product Highlights

This termination kit features a Hi-K stress control design that minimizes surface stress and ensures effective insulation. It is suitable for both indoor applications and cabinet-mount installations, making it versatile for various settings.

Product Information

Standard Information

• Voltage: 5 to 15 kV
• BIL Rating: 110 kV

Technical Specifications

• Cable Type: With/Without Ground Wire
• Conductor Size: 800 to 1000 kcmil (5 kV), 750 to 1000 kcmil (8 kV), 500 to 750 kcmil (15 kV)
• Cable Insulation Outer Diameter: 1.18 to 1.52 inches
• Number of Terminations: 3
• Application: Indoor
• Shielding Type: Tape Shield, Wire Shield, UniShield®
