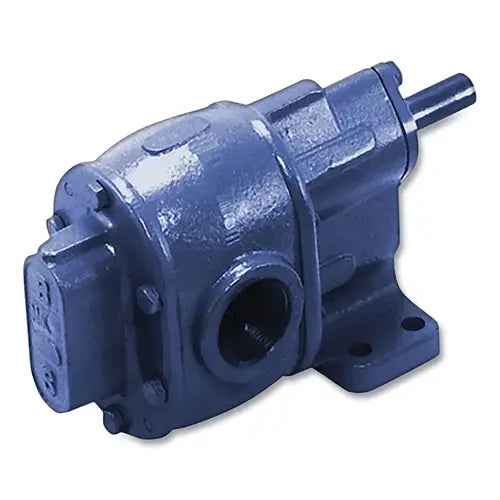

Bsm Pump 713-2-7 2 Rotary Gear Pump Foot Mount 9.4 gal/min (1/2 in) 117-713-2-7

Product Description

Bsm Pump 713-2-7 is a foot-mounted rotary gear pump (WRV-#4) designed for industrial fluid transfer, recirculating, mixing, and metering applications. The pump features a 1/2 in port, nominal flow of 9.4 gal/min, and standard operation to 200 psi and 250 F, with an integral relief valve and CW/CCW rotation. Construction includes iron housing and spur steel gears; seal and material options are available.

• Foot-mounted rotary gear pump (WRV-#4) with integral relief valve and CW/CCW rotation
• Performance: 9.4 gal/min nominal flow, max pressure 200 psi, max temperature 250 F, speed up to 900 rpm
• Mechanical: 1/2 in port, 0.63 in shaft diameter, 3 in shaft height, spur steel gears, iron housing

Product Highlights

Foot-mounted rotary gear pump with relief valve; 9.4 gal/min, 200 psi; 1/2 in port; iron housing and steel spur gears.

Product Information

Standard Information

• Brand: BSM PUMP
• Manufacturer Part Number: 713-2-7
• Country of Origin: USA

Technical Specifications

• Brand: BSM Pump
• MPN: 713-2-7
• Catalog Number: 117-713-2-7
• Model/Series: B-Series / WRV-#4
• Type: Rotary gear pump with relief valve
• Mounting: Foot-mounted
• Port Size: 1/2 in
• Flow Max: 9.4 gal/min
• Maximum Pressure: 200 psi
• Maximum Temperature: 250 F
• Relief Valve: Integral relief valve
• Rotation: Clockwise or counterclockwise
• Shaft Diameter: 0.63 in
• Shaft Height: 3 in
• Gear Type: Spur
• Gear Material: Steel
• Housing Material: Iron
• Material Options: Cast iron, ductile iron, or bronze
• Seal Options: Compression packing, lip seal, mechanical seal
• Displacement: 0.0104 Gals/Rev
• Slip (gpm/psi): 0.0023
• Speed Max: 900 rpm
• 0 PSI Flow/Power: 9.4 gal/min / 0.11 hp
• 50 PSI Flow/Power: 9.3 gal/min / 0.48 hp
• 100 PSI Flow/Power: 9.1 gal/min / 0.85 hp
• 200 PSI Flow/Power: 8.9 gal/min / 1.50 hp
• Dimensions (L x W x H): 10.7 in x 6.1 in x 4.8 in
• Weight: 10.45 lb
• Displacement Unit: Gals/Rev
• Country of Origin: United States
• UNSPSC: 40151555
