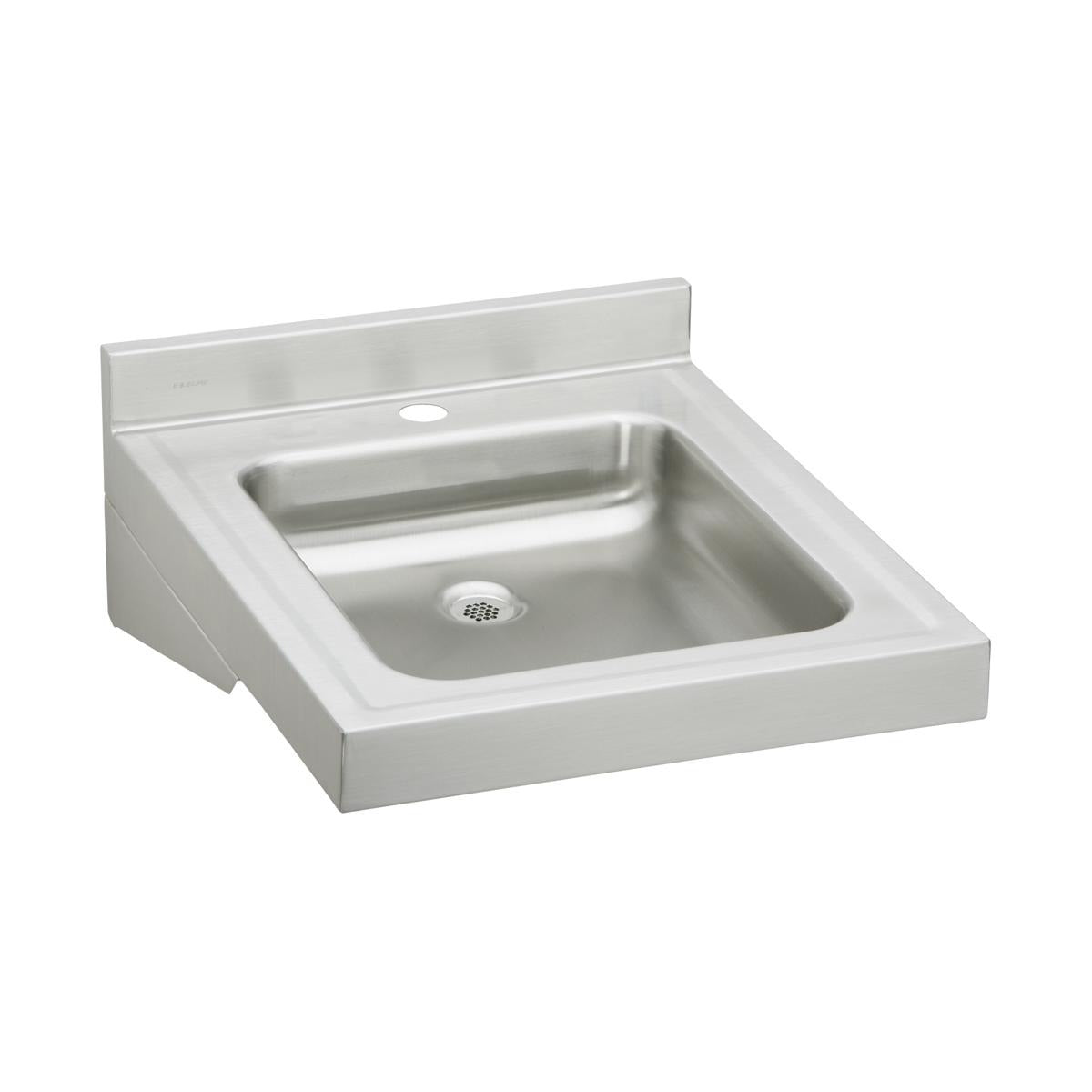

Bsc Preferred WCL1923OSD0 Wall-hung Lavatory Sink

Product Description

The BSC PREFERRED WCL1923OSD0 is a wall-hung stainless steel lavatory sink built for commercial and residential plumbing applications where space efficiency and durability are required. Constructed from 18-gauge Type 304 stainless steel, the sink measures 19 inches by 23 inches by 4 inches overall, with a single bowl interior of 16 inches by 13.5 inches. A rear-center drain positioned at 1.5 inches in diameter keeps the basin clear and maximizes usable space beneath the sink for plumbing access or storage. Sound-deadening material is integrated into the underside to reduce vibration and noise during use. Licensed plumbers handle installation in both new construction and retrofit projects.

This sink is suited for compact bathrooms, public restrooms, and healthcare facilities where wall-hung mounting is preferred for floor clearance and ADA compliance. The wide top deck features a raised rim that contains water at the basin edge. Smooth 1-3/4-inch coved corners reduce buildup and simplify routine cleaning. Each unit ships complete with the sink and an LKAD174LO drain, so no separate drain assembly is required. The wall-hung configuration is a common specification in healthcare, hospitality, and light commercial plumbing projects.

Key Features

• 18-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Overall dimensions: 19 inches by 23 inches by 4 inches
• Single bowl: 16 inches by 13.5 inches with 1-3/4-inch coved corners for easy cleaning
• Rear-center drain at 1.5 inches diameter maximizes under-sink clearance
• Raised rim on wide top deck prevents water overflow
• Sound-deadening undercoating reduces noise and vibration
• Includes LKAD174LO drain — no additional drain purchase required

Compatibility

ADA compliant when installed at the correct mounting height per applicable accessibility codes. Designed as an OEM-style wall-hung lavatory sink for residential and commercial plumbing installations requiring a single-bowl, rear-drain configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and confirm wall blocking or a carrier system is in place before mounting, as wall-hung sinks require adequate structural support behind the finished wall surface. Verify rough-in drain location aligns with the 1.5-inch rear-center drain before setting the sink. ADA mounting height requirements must be confirmed with the project specifications prior to final installation.
