Bsc Preferred VRCTLDDWSK Bi-level Bottle Filling Station

Product Description

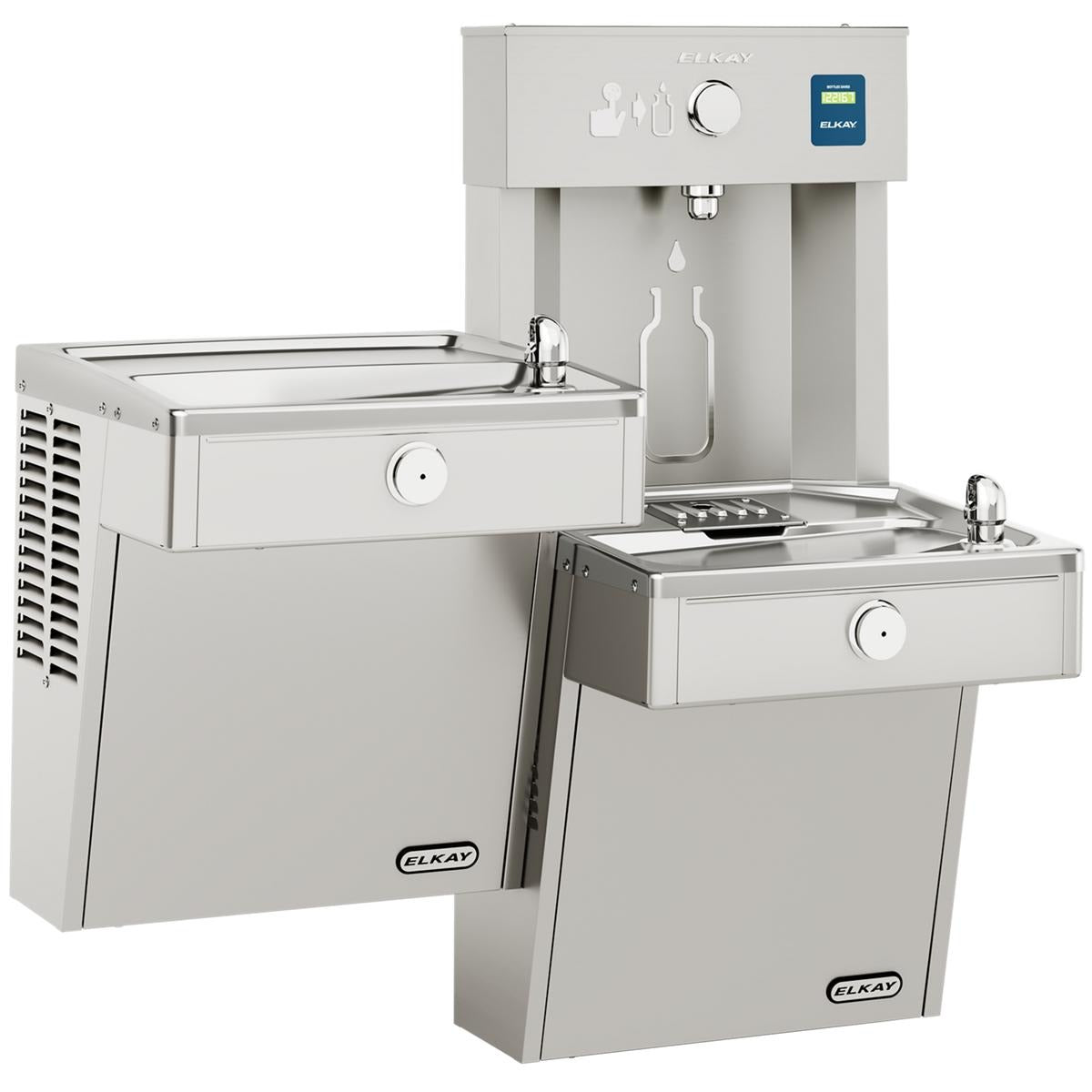

The BSC PREFERRED VRCTLDDWSK is a bi-level, wall-mounted bottle filling station and water cooler engineered for high-traffic, demanding environments. It combines two hydration stations in a single compact unit, allowing simultaneous use during peak periods. The unit operates on 115 volts at 60 Hz with a rated wattage of 15 watts, keeping energy consumption low. Non-refrigerated and non-filtered in operation, it delivers a reliable drinking water source without the maintenance demands of traditional refrigeration. Chrome-plated integral hoods and a vandal-resistant construction protect internal components from tampering and contamination. Licensed plumbers and facilities maintenance technicians are the primary installers for this type of fixture.

The VRCTLDDWSK is designed for installation in schools, gymnasiums, municipal recreation centers, and outdoor public facilities where durability and accessibility are required. Its ADA-compliant, bi-level configuration accommodates users of varying heights and mobility needs. The laminar flow fill head minimizes splashing, keeping fill areas clean. An electronic push-button activator with an automatic shut-off timer supports water conservation. The integrated Green Ticker display tracks and reports the number of single-use plastic bottles displaced, making it well suited for facilities with sustainability or LEED-related documentation requirements. The unit is rated for both indoor and outdoor installation.

Key Features

• Bi-level dual-station layout supports simultaneous use and ADA-compliant accessibility
• Vandal-resistant design with chrome-plated integral hoods resists tampering and contamination
• Electronic push-button with automatic shut-off timer reduces water waste
• Laminar flow fill head minimizes splash and cross-contamination at the fill point
• Integrated Green Ticker tracks cumulative plastic bottle displacement in real time
• Non-refrigerated, non-filtered operation reduces maintenance complexity
• Rated for indoor and outdoor installation in high-traffic environments

Compatibility

Designed as a wall-mounted, plumbed-in bottle filling station and cooler for use in commercial and institutional facilities requiring ADA-compliant, vandal-resistant hydration fixtures.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and disconnect electrical power at the circuit breaker before beginning any work. The unit is wall-mounted and requires a dedicated rough-in water supply line and a properly rated 115-volt electrical circuit. Verify rough-in dimensions and mounting height requirements against ADA guidelines before final positioning.
