Bsc Preferred VRCTL8WSK Bi-level Bottle Filling Station

Product Description

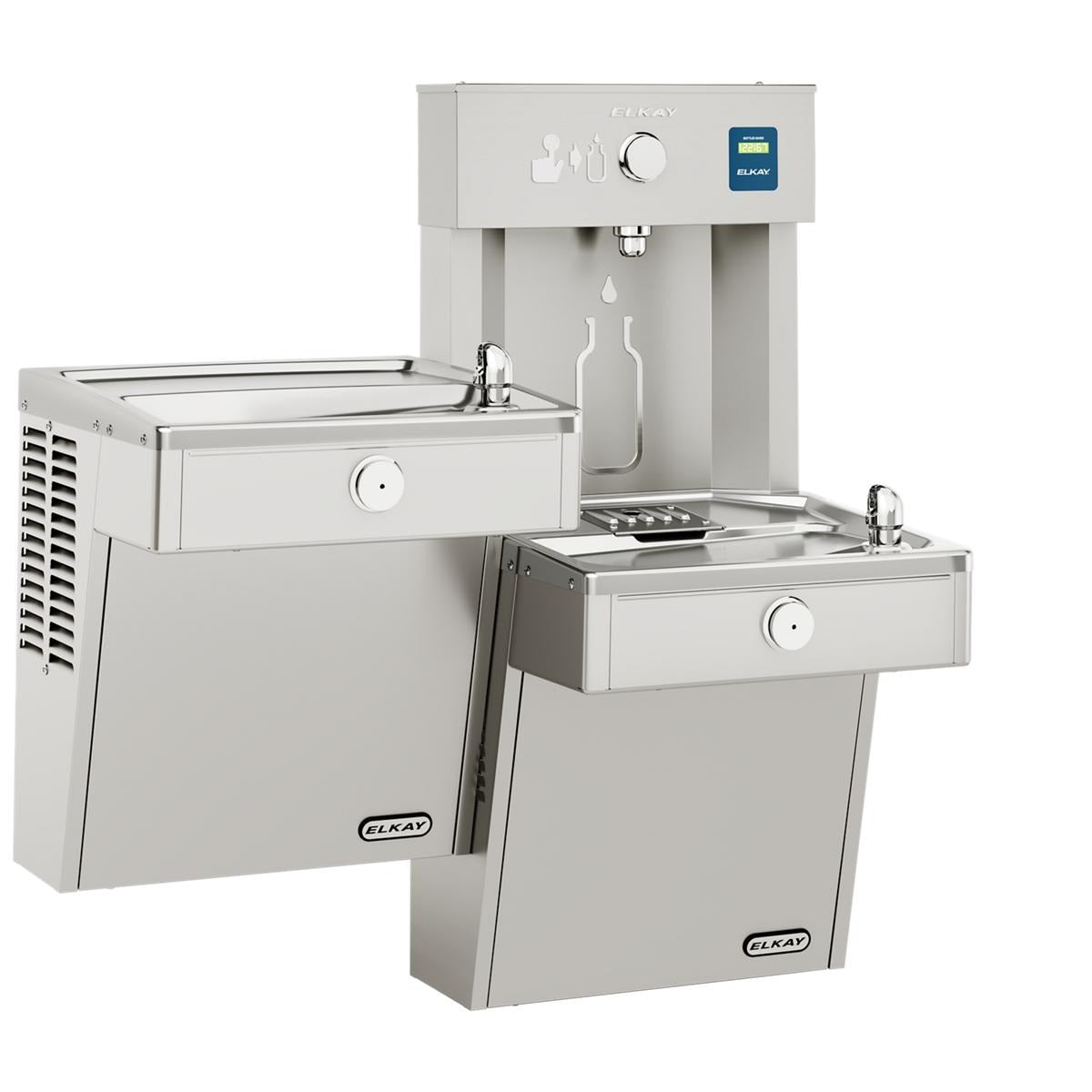

The BSC PREFERRED VRCTL8WSK is a bi-level, wall-mount water bottle filling station and cooler engineered for high-traffic public and institutional environments. The unit combines a bottle filling station with a front-facing bubbler cooler in a single vandal-resistant stainless steel enclosure. It delivers chilled water at 8.0 gallons per hour via a hermetically sealed refrigeration system. An automatic 20-second shut-off timer controls the bottle filler, and laminar flow technology minimizes splash during filling. Licensed plumbers and facility maintenance technicians are the primary installers for this type of unit.

The VRCTL8WSK is suited for indoor and outdoor installations in schools, recreational centers, airports, and other busy public facilities. The bi-level configuration serves both standing adults and ADA-compliant lower access. Push-button activation controls the bottle filler, while a mechanical front bubbler provides conventional drinking access. The integrated Green Ticker display tracks the number of 20-ounce plastic bottles saved, supporting sustainability reporting in institutional settings. Chrome-plated integral hood guards on the bubblers resist tampering and reduce contamination risk.

Key Features

• Vandal-resistant stainless steel construction for durability in high-traffic areas
• Chilling capacity of 8.0 gallons per hour via hermetically sealed refrigeration
• Laminar flow bottle filler with automatic 20-second shut-off timer
• Bi-level design with ADA-compliant lower bubbler access
• Green Ticker display counts 20-ounce plastic bottles diverted from waste stream
• Chrome-plated integral hood guards on bubblers for tamper resistance and sanitation
• Lead-reduction design on wetted components

Compatibility

Designed as an OEM-style wall-mount hydration unit suitable for standard plumbing rough-in in commercial and institutional buildings. No specific model compatibility data was provided by the supplier.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable ADA accessibility requirements. Shut off the water supply and verify electrical service is de-energized before mounting or making connections. The wall structure must support the unit weight of approximately 118 pounds; blocking or backing within the wall cavity is typically required. Confirm rough-in dimensions against the unit footprint of 38.8125 inches height, 18.625 inches width, and 36.125 inches depth before installation.
