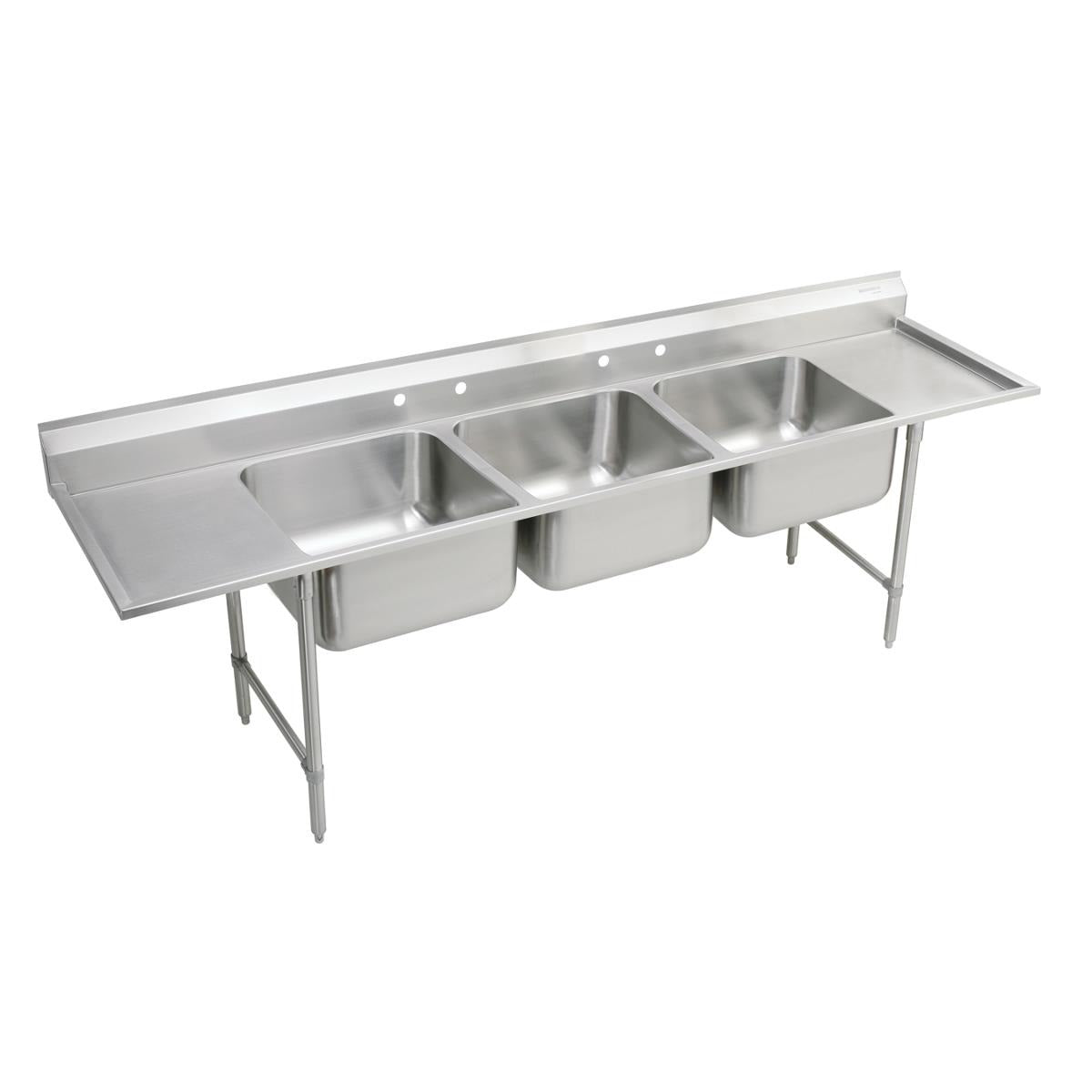

Bsc Preferred RNSF8354LR4 Triple Compartment Scullery Sink

Product Description

The BSC PREFERRED RNSF8354LR4 is a triple compartment scullery sink built for high-traffic commercial kitchens and food service environments. Constructed from 16-gauge Type 304 stainless steel with a satin finish, it measures 97.25 inches in length by 29.75 inches in width by 14 inches in height. Each of the three bowls measures 18 inches long by 24 inches wide by 12.75 inches deep, providing capacity for large pots, sheet pans, and volume dishwashing. An integrated drainboard with steel channel reinforcement and a conical-shaped pitch directs water away from the work surface. A full-length 8-inch backsplash with a 45-degree slope reduces debris buildup. Licensed plumbers handle installation in commercial facilities subject to local plumbing codes.

This sink is designed for restaurants, cafeterias, institutional kitchens, and other commercial food service operations that require a dedicated three-compartment wash, rinse, and sanitize setup. Each compartment centers a 3.5-inch drain opening and requires four faucet holes for full plumbing access. The 3.5-inch radius coved corners reduce soil trapping and simplify cleaning between service periods. Stainless steel tubular legs with cross-brace supports provide structural stability under sustained heavy loads. Adjustable bullet-shaped feet with a 1.625-inch outer diameter allow leveling on uneven floor surfaces. The unit is available in ADA-compliant depths for facilities with accessibility requirements.

Key Features

• 16-gauge Type 304 stainless steel construction resists corrosion in wet commercial environments
• Three bowls each measuring 18 inches long by 24 inches wide by 12.75 inches deep
• Integrated drainboard with steel channel reinforcement and conical pitch for active drainage
• 8-inch full-length backsplash with 45-degree slope minimizes dirt and liquid accumulation
• 3.5-inch radius coved corners on each compartment ease sanitation
• Adjustable bullet-shaped feet with 1.625-inch outer diameter for leveling across floor types

Compatibility

Designed as a self-contained three-compartment scullery sink for commercial plumbing installations. No specific model or brand compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable local plumbing code and ANSI standards for commercial sinks. Shut off the water supply and verify drain rough-in dimensions before setting the sink. Each compartment requires a separate trap and drain connection; confirm local code requirements for venting. Do not overtighten faucet fittings against the stainless deck, as this can deform the surface around the pre-punched holes.
