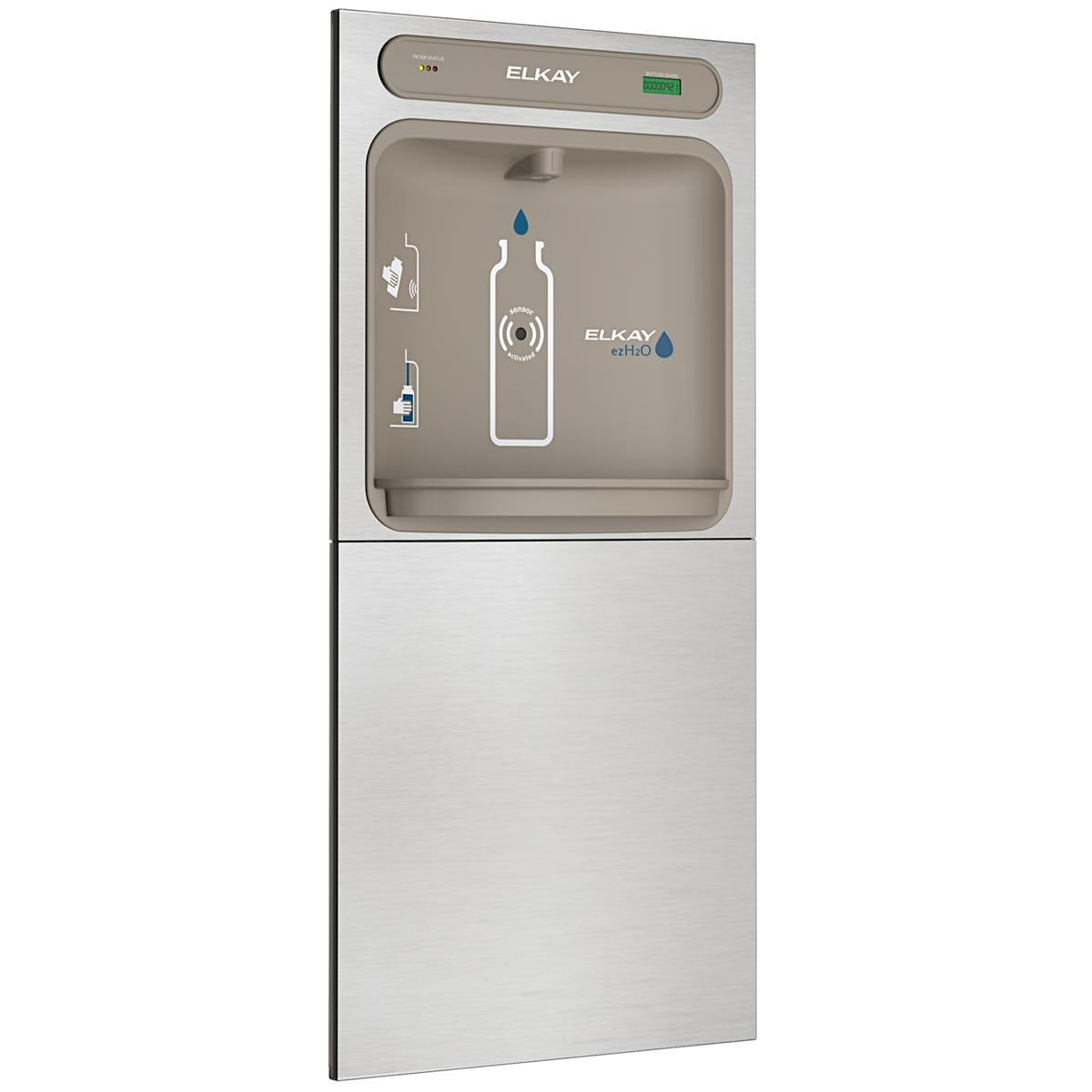

Bsc Preferred LZWSDK In-wall Bottle Filling Station

Product Description

The BSC PREFERRED LZWSDK is a fully recessed, in-wall bottle filling station designed for indoor commercial and institutional environments. It delivers filtered water at a fill rate of 1.5 gallons per minute through a touchless electronic sensor that automatically shuts off after 20 seconds, reducing spills and cross-contamination. The integrated filtration system carries NSF 42 and 53 certifications, reducing lead, chlorine, taste, odor, and Class 1 particulates through a 3,000-gallon-rated filter cartridge. A licensed plumber handles rough-in and final connection. This unit is suited for settings where sanitation, water quality, and sustainability metrics matter.

The LZWSDK is rated for indoor use only and fits schools, office buildings, gyms, healthcare facilities, and public common areas. Its fully recessed profile integrates flush into a wall cavity, eliminating protrusion into walkways. A separate mounting frame is required for installation and is not included with the unit. The laminar flow nozzle design minimizes splash during fill cycles, and a real drain system removes standing water from the basin to maintain sanitary conditions between uses.

Key Features

• Touchless electronic sensor activation with automatic 20-second shutoff
• 1.5 gallons per minute fill rate for fast bottle refills
• NSF 42 and 53 certified filter rated for 3,000 gallons, reducing lead, chlorine, taste, odor, and Class 1 particulates
• LED visual filter monitor alerts when cartridge replacement is due
• Green Ticker display tracks equivalent 20 oz. plastic bottles diverted from waste
• Antimicrobial protection embedded in key plastic components to inhibit mold and mildew growth
• Real drain system eliminates standing water in the basin

Compatibility

Designed for indoor in-wall installation as a single bottle filling station unit. Requires a separate compatible mounting frame for wall integration; consult installation documentation for frame specifications.

Installation Notes

Installation must be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply to the service line before beginning rough-in work. A separate mounting frame is required and must be secured to wall framing prior to inserting the unit. This station is rated for indoor use only and must not be installed in exterior or exposed-weather locations.
