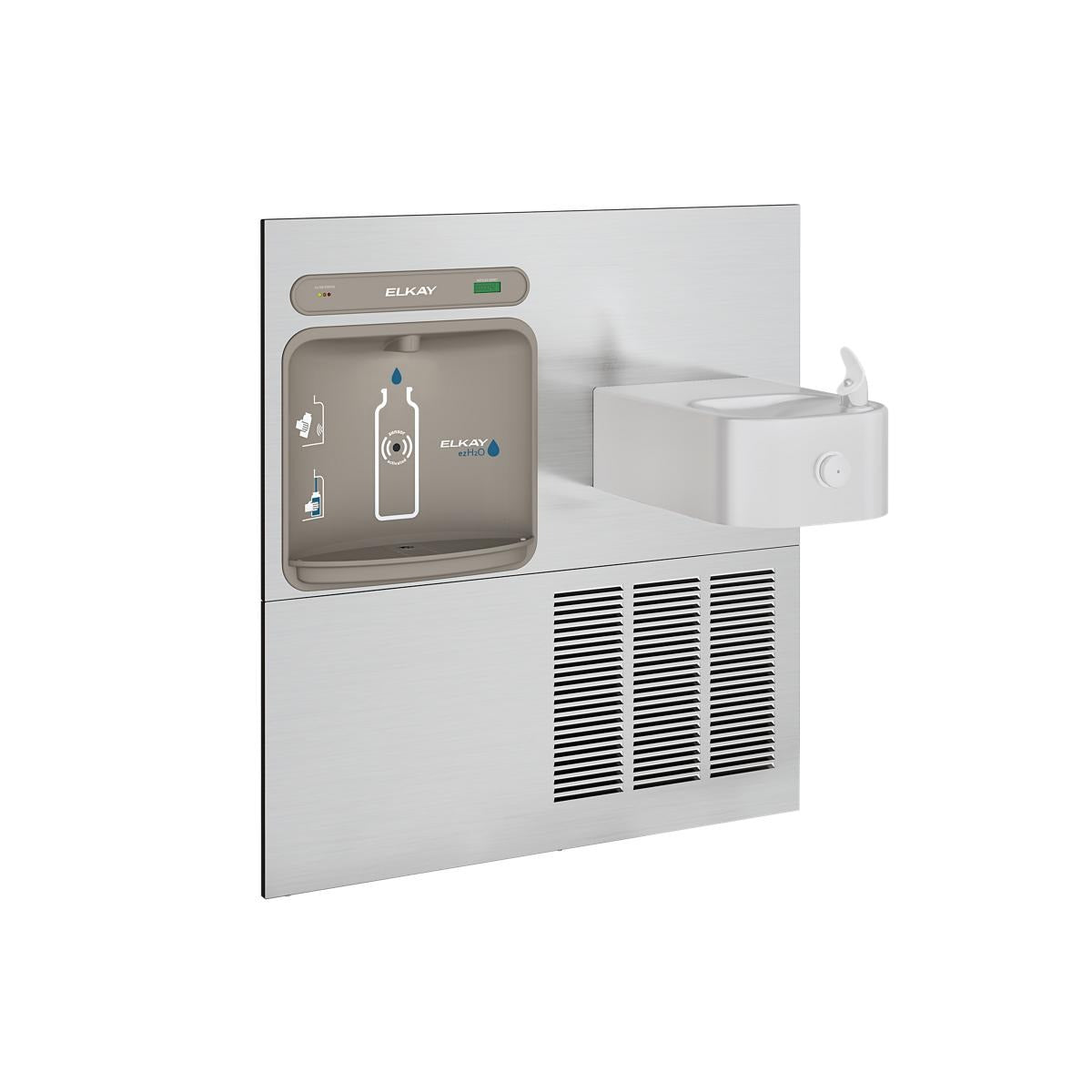

Bsc Preferred LZWS-ERFP8-RF Retrofit Bottle Filling Station

Product Description

The BSC PREFERRED LZWS-ERFP8-RF is a retrofit bottle filling station designed to mount onto existing bi-level refrigerated Soft Sides drinking fountains, converting them into touchless, sensor-activated hydration points. The unit delivers chilled water at a fill rate of 1.1 gallons per minute through a hermetically sealed refrigeration system rated for 115 volts and 60 Hz at 15 watts. An NSF-certified filter rated for 3,000 gallons reduces lead, chlorine, and taste and odor compounds. A licensed plumber or qualified service technician handles installation, and the stainless steel housing with antimicrobial coating on plastic components makes it well suited for high-traffic indoor environments.

This station is intended for indoor commercial and institutional spaces where an existing bi-level refrigerated Soft Sides fountain is already in service. The retrofit configuration avoids full fixture replacement, reducing labor and material costs. The hands-free sensor activates the bottle filler side, while a mechanical button operates the front bubbler. An LED-based visual filter monitor signals when filter replacement is due. A built-in Green Ticker display counts the number of single-use plastic bottles displaced by refill activity. The unit ships with the filter and mounting frame included.

Key Features

• Touchless infrared sensor activation for the bottle filler; mechanical button for the front bubbler
• 1.1 GPM fill rate via hermetically sealed refrigeration system operating at 15 watts
• NSF-certified 3,000-gallon filter reduces lead, chlorine, and taste and odor compounds
• LED visual filter monitor indicates when replacement is required
• Antimicrobial coating on key plastic components inhibits mold and mildew growth
• Green Ticker tracks cumulative plastic bottles saved from waste
• ADA-compliant design; stainless steel finish; filter and mounting frame included

Compatibility

Designed to retrofit existing bi-level refrigerated Soft Sides drinking fountains. Confirm fountain model compatibility before ordering to ensure correct fit with the included mounting frame.

Installation Notes

Installation should be performed by a licensed plumber familiar with potable water supply connections and local plumbing code requirements. Shut off the water supply and disconnect power to the existing fountain before beginning any work. Wall mounting and plumbing connections must comply with applicable local and IPC code provisions. Do not operate the unit without the filter cartridge seated and the water supply fully pressurized.
