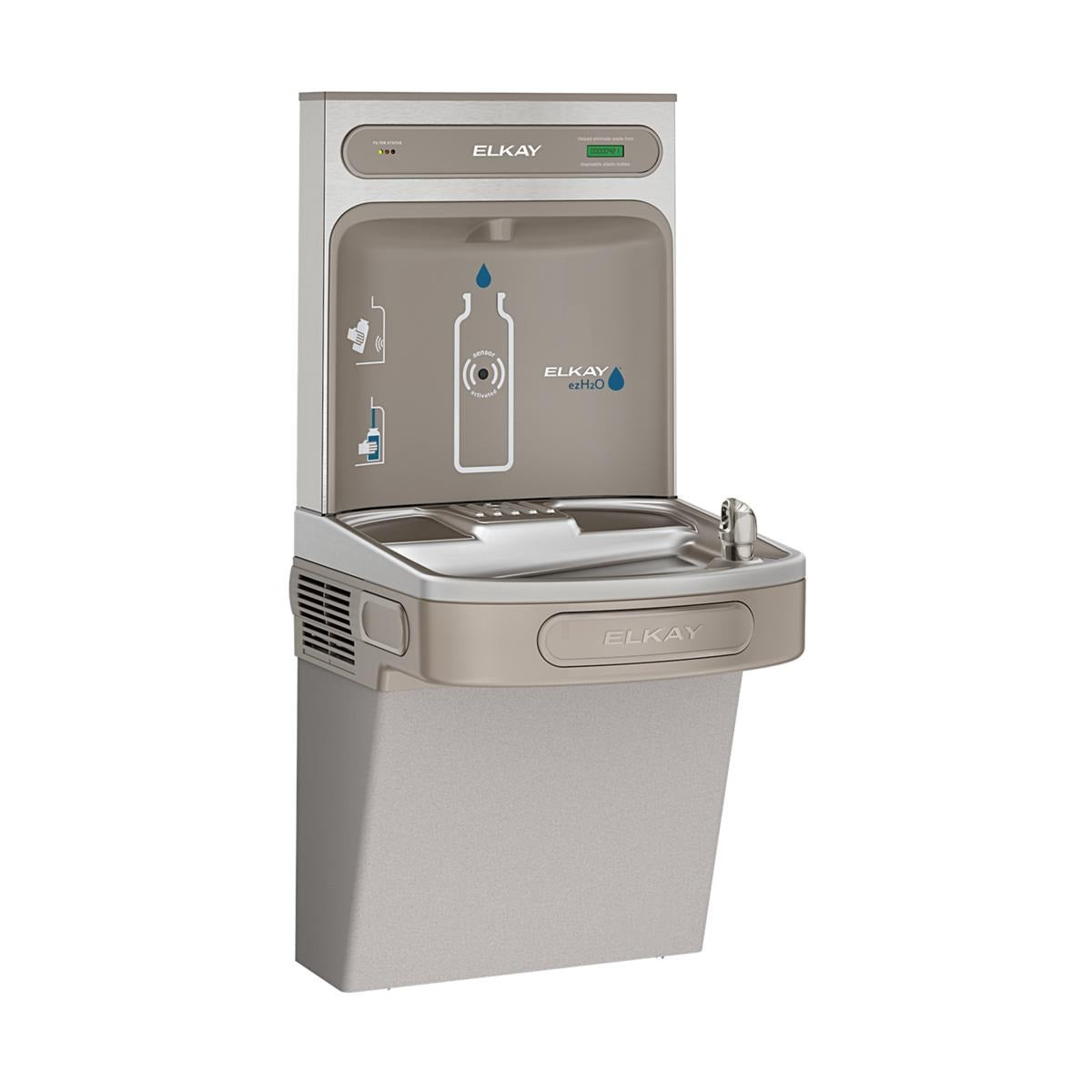

Bsc Preferred LZS8WSVRLK Bottle Filling Station 8.0 Gph

Product Description

The BSC PREFERRED LZS8WSVRLK is an ADA-compliant bottle filling station and drinking water cooler designed for permanent indoor installation in high-traffic commercial and institutional environments. The unit combines a touchless electronic-sensor-activated bottle filler with a push-bar-activated bubbler, both featuring vandal-resistant construction. It delivers chilled, filtered water at a cooling rate of 8.0 gallons per hour and a fill rate of 1.1 gallons per minute. A stainless steel back panel and light gray finish provide durability and a clean appearance. Installation and service are handled by licensed plumbing professionals.

The LZS8WSVRLK is suited for schools, offices, gyms, and public facilities requiring accessible, hygienic hydration points. The laminar flow design reduces splash during bottle filling, and the real drain system eliminates standing water accumulation. A built-in Green Ticker displays the count of 20 oz. plastic bottles displaced by refills, supporting sustainability tracking in managed facilities. Silver ion antimicrobial protection on key internal components inhibits mold and mildew growth. The included 3,000-gallon filter is NSF-certified and reduces lead, chlorine, and other impurities affecting taste and odor.

Key Features

• Touchless bottle filler activated by electronic sensor for hands-free, hygienic operation
• 8.0 GPH chilling rate with 1.1 GPM fill rate for on-demand hydration
• NSF-certified 3,000-gallon filter reduces lead, chlorine, and taste and odor impurities
• Vandal-resistant bubbler and bottle filler assembly rated for high-traffic use
• Silver ion antimicrobial protection inhibits mold and mildew on internal components
• Green Ticker tracks 20 oz. plastic bottles saved from waste
• Real drain system prevents standing water; laminar flow minimizes splash

Compatibility

Designed as an OEM-style replacement or new-installation unit for indoor ADA-compliant drinking water and bottle-filling applications in commercial and institutional plumbing systems.

Installation Notes

Installation must be performed by a licensed plumber in accordance with applicable local codes and IPC requirements. Shut off the cold water supply and disconnect power to any connected circuits before beginning work. Verify rough-in dimensions and drain location against the unit footprint of 19 inches wide by 18.375 inches deep by 39.06 inches tall prior to mounting. Do not overtighten supply line connections; follow the manufacturer installation documentation for torque guidance specific to this model.
