Bsc Preferred LZOTL8WSLK Bi-level Ada Bottle Filling Station

Product Description

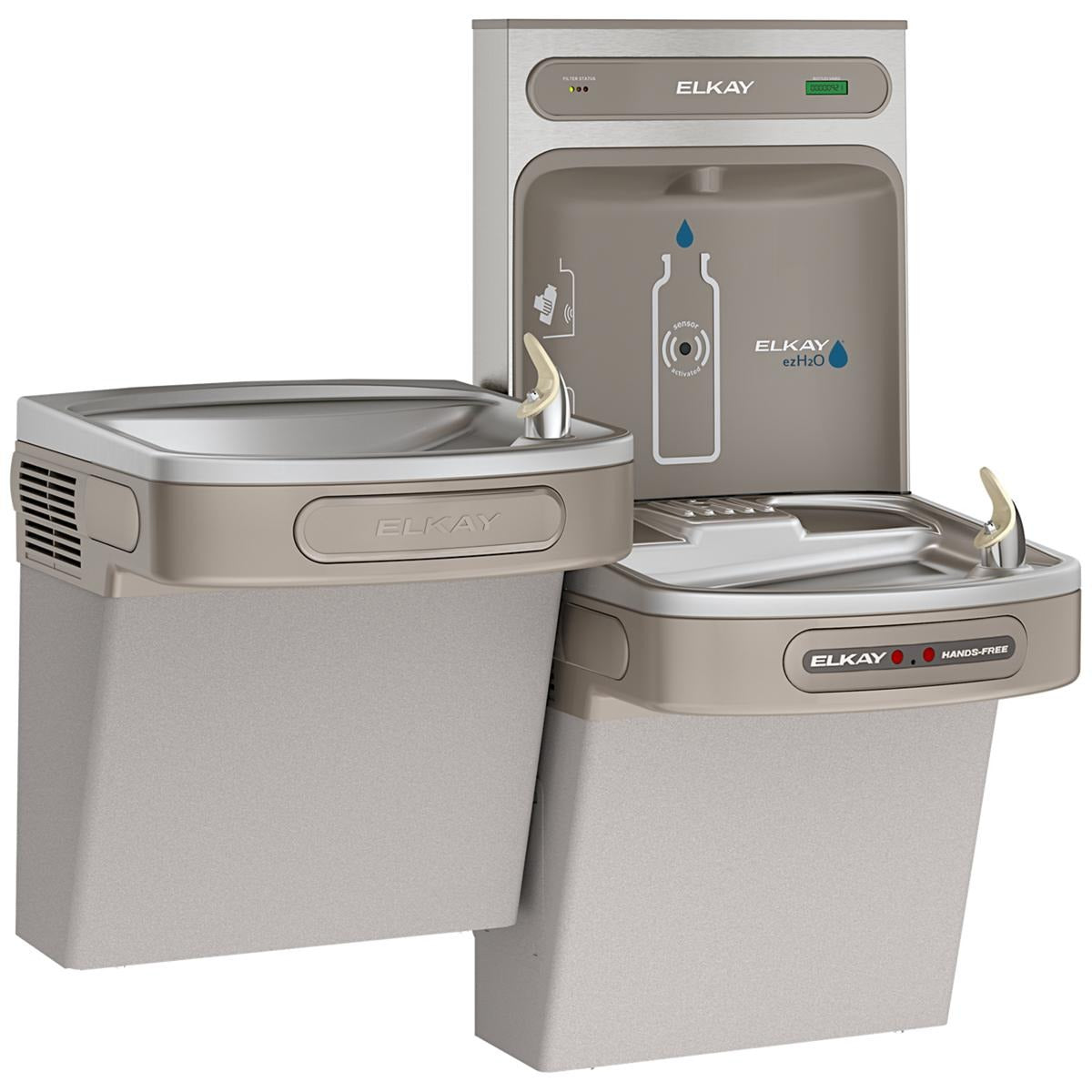

The BSC PREFERRED LZOTL8WSLK is a bi-level, wall-mounted bottle filling station with an integrated ADA-compliant cooler designed for indoor commercial and institutional use. The unit delivers chilled, filtered water at 1.1 gallons per minute through a hermetically sealed refrigeration system. Sensor-activated, touchless operation allows hands-free bottle filling. Antimicrobial protection on key plastic components inhibits mold and mildew growth. A Flexi-Guard safety bubbler provides a flexible mouth guard that reduces contact-related injury and contamination risk. A built-in LED visual filter monitor tracks filter life, and the included replacement filter is certified to reduce lead, chlorine, and other contaminants. The Green Ticker display logs the cumulative count of single-use plastic bottles displaced by refills. Licensed plumbers and facilities maintenance professionals typically handle installation.

This unit is intended for permanent indoor wall-mount installation in high-traffic environments. Typical applications include schools, universities, gyms, municipal recreation centers, healthcare facilities, and other communal spaces where both ADA accessibility and high-volume hydration demand must be met. The bi-level design accommodates standing adults at the upper station and wheelchair users or children at the lower station, satisfying ADA clearance requirements. The touchless fill sensor and chilled output make it well-suited for locations that see continuous use throughout the day.

Key Features

• Touchless sensor-activated bottle filling at 1.1 gallons per minute
• Hermetically sealed refrigeration system for consistent chilled water delivery
• Antimicrobial protection on key plastic components to inhibit mold and mildew
• Flexi-Guard safety bubbler with flexible mouth guard for hygiene and injury protection
• LED visual filter monitor with certified filter for lead, chlorine, and contaminant reduction
• Green Ticker display tracks cumulative plastic bottles saved through refill use
• Bi-level ADA-compliant layout serves both standing users and wheelchair users

Compatibility

Designed as an OEM-style wall-mount bottle filling station with integrated bi-level cooler for indoor plumbing systems requiring a dedicated chilled-water supply and drain connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and disconnect any electrical power to the installation area before beginning mounting or plumbing connections. The unit requires a dedicated cold water supply line and a floor or wall drain connection. Do not install in outdoor or unprotected environments, as this unit is rated for indoor use only.
